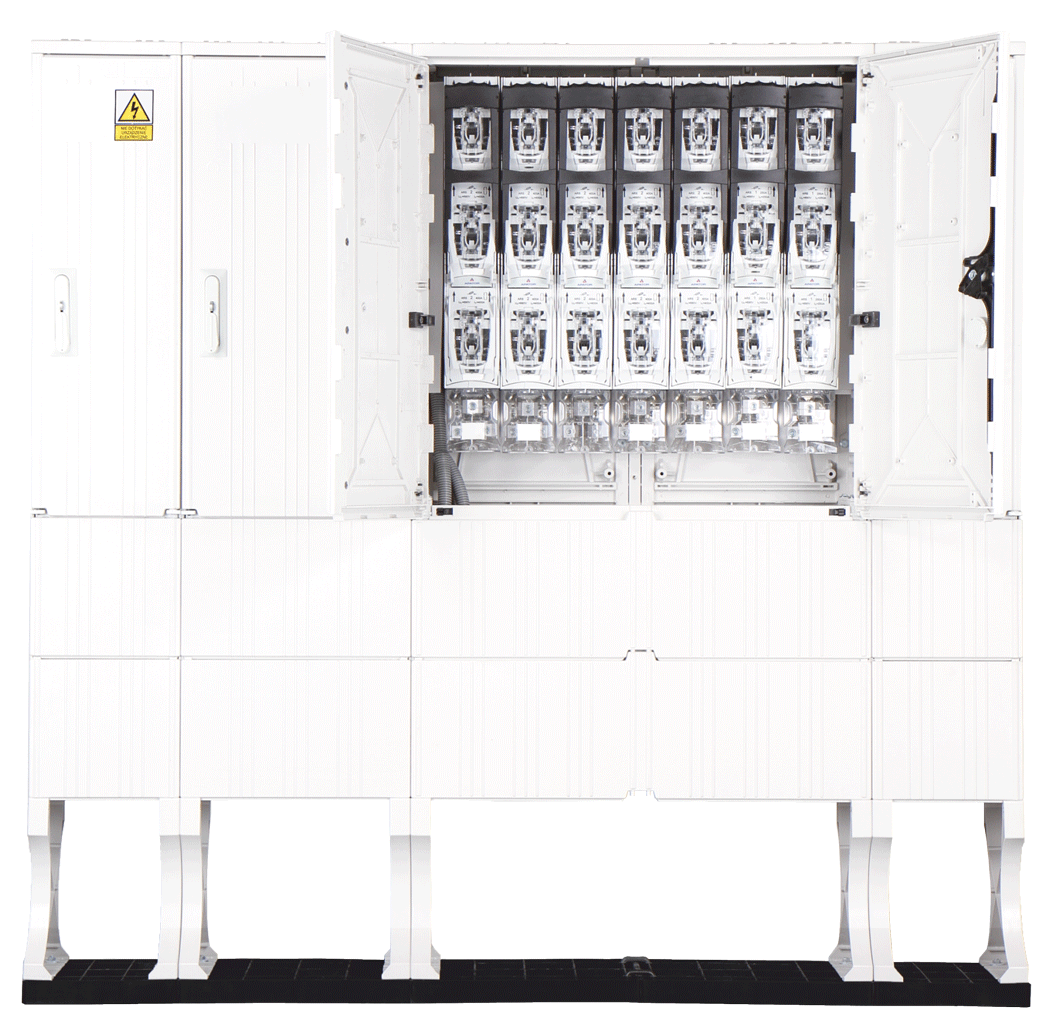

Cable, metering boxes in thermosetting cubicles

High-quality cable cabinets made of polyester thermoset reinforced fiberglass, the company ZPUE SA meets the high demands of customers.
Technical description

Technical description

zlacza tworzywo

ZPUE S.A. company manufactures cable boxes on the basis of its SKR type cubicles made of reinforced fiber-glass composites or metal. They are the basic elements of the LV cable electricity grid. They are used for energy distribution, metering and protection against overload and short-circuit effects in low voltage cable grids, depending on intended requirements. Cable boxes enable disconnection from the low voltage cable route and the power supply to the recipient thanks to the inner supply line. They function as fittings or loop-throughs.
ZPUE S.A. has in its offer a wide variety of boxes: cable, metering, and cable-metering, which were developed in close collaboration with the power distribution companies. Cable, metering-cable and metering boxes are manufactured based on thermosetting and metal cubicles, which can be installed outside buildings as free-standing with the fundament or wall-mounted, or installed in the wall of the building.

Technical data

Technical data

Basic technical data
Rated voltage 230/400V
Rated voltage of the isolation 690 V
Rated current 630 A
Protection degree IP 44 / IP 55
Mechanical impact resistance IK 10
Insulation class II
Flammability class FH 2-40
Tracking resistance CTI 600
Standard color RAL 7035
Characteristics

Characteristics

  • modular construction, which allows the replacing of faulty parts,
  • construction, which allows for easy box expansion,
  • construction, which allows for horizontal and vertical sectioning into power distribution company and recipients’ parts,
  • optimal cubicle depth, which allows the installation of slat switch disconnectors,
  • possibility to use inspection windows and inspection doors,
  • degree of protection IP 44 / IP 54 in thermosetting cubicles with the possibility of raising to IP 66 – in metal cubicles,
  • excellent UV resistance,
  • possibility to construct boxes based on any system and in any dimension (does not require expenditures for purchase of moulds),
  • environmentally-friendly material,
  • effective labyrinth ventilation, which prevents condensate formation,
  • high impact resistance thanks to definition of the control breaking point,
  • aluminium circuit flexibility causes deformation, not breaking of the cubicle.
Compliance with the standards

Compliance with the standards

LV switchgears and cable boxes manufactured by ZPUE S.A. comply with the provisions of directive 2006/95/WE of the European Parliament and of the Council and directive 93/68/EWG with changes. Compliance of the abovementioned products with the directives is ensured by fulfilling the requirements of the following norms:

  • PN-EN 61439-1:2011 - “Low Voltage Switchgear and Controlgear – Part 1: Common specifications”,
  • PN-EN 61439-2: 2011 -“Low Voltage Switchgear and Controlgear – Part 2: Low voltage switchgear and controlgear for power distribution”,
  • PN-EN 61439-3:2012 – “Low Voltage Switchgear and Controlgear – Part 3: Distribution boards intended to be operated by ordinary persons (DBO)”,
  • PN-EN 61439-5:2011 –“Low Voltage Switchgear and Controlgear – Part 5: Assemblies for power distribution in public networks”,
  • PN-EN 60439-5:2008 – “Low Voltage Switchgear and Controlgear – Part 5: Particular requirements for assemblies for power distribution in public networks”,
  • PN-EN 60529:2003P/A2:2014 – “Degrees of protection provided by enclosures (IP code)”,
  • PN-EN 50102:2001 – “Degrees of protection against mechanical damages provided by the enclosures of the electrical devices (IK code)”,
  • PN-EN 50298:2002(U) – “Empty enclosures for low-voltage switchgear and controlgear assemblies. General requirements”,
  • PN-EN 62208:2011E –“Empty enclosures of low-voltage switchgear and controlgear assemblies. General requirements”,
  • PN-E-05163:2002 – “Enclosed low-voltage switchgear and controlgear assemblies - Guide for testing under conditions of arcing due to internal fault”,
  • PN-EN 60695-2-10:2013-12E – “Fire hazard testing – Glowing/ hot –wire based test methods”,
  • PN EN 60695-2-11:2005P – “Fire hazard testing – Glowing/ hot –wire based test methods. Glow-wire flammability test method for end-products”,
  • PN EN 60695 11 10:2014 – “Fire hazard testing - Test flames — 50 W horizontal and vertical flame test methods”,
  • PN-86/E-04415(IEC 60112) – “Solid electrical insulating materials. Method for determining the comparative and the proof tracking indices under moist conditions”,
  • PN-EN 60112:2003 A1:2010 –“Method for determining the comparativeand the proof tracking indices of the solid electro-insulating materials”.
Exemplary solutions

Exemplary solutions

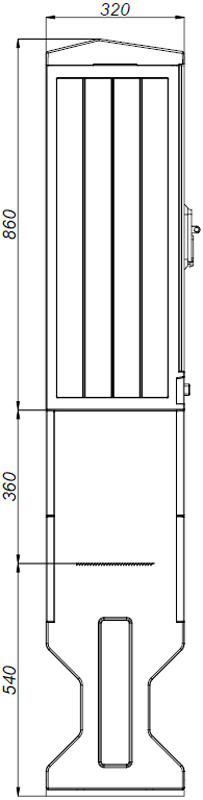

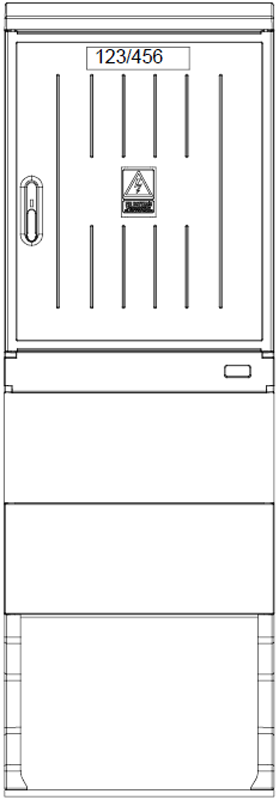

Exemplary solutions according to ENERGIA standards

Exemplary solutions according to ENERGIA standards

P1-RS/LZR/F catalogue number EN-5

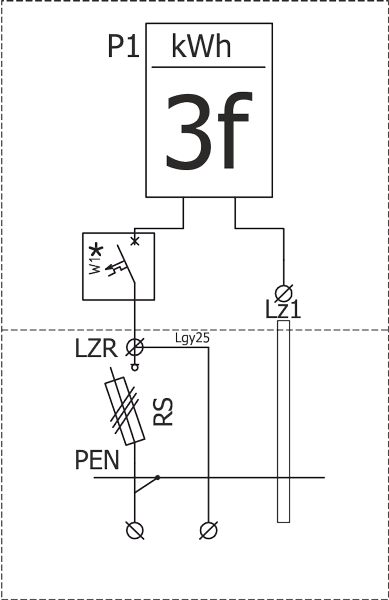

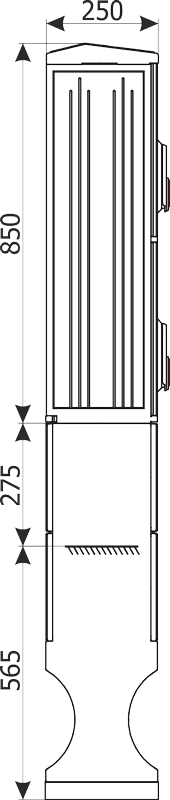

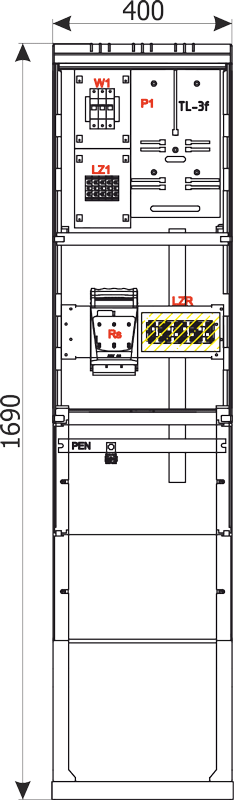

energia 01
energia 02

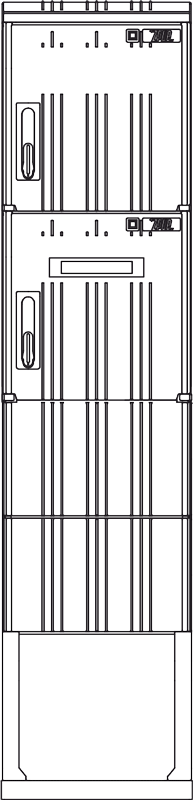

energia 03

energia 04
Basic technical parameters
Rated current up to 160 A
Rated voltage 230 / 400 V
Rated voltage of the isolation 500 / 690 V
Rated frequency 50 Hz
Protection degree IP 44
Device protection class class II

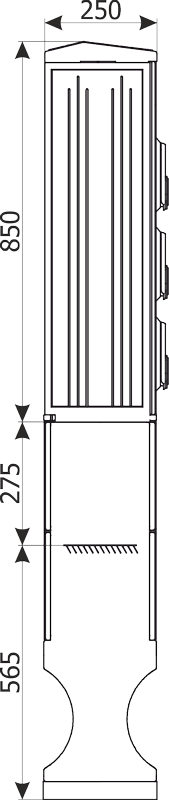

P2-RS/LZV/LZR/F catalogue number EN-12

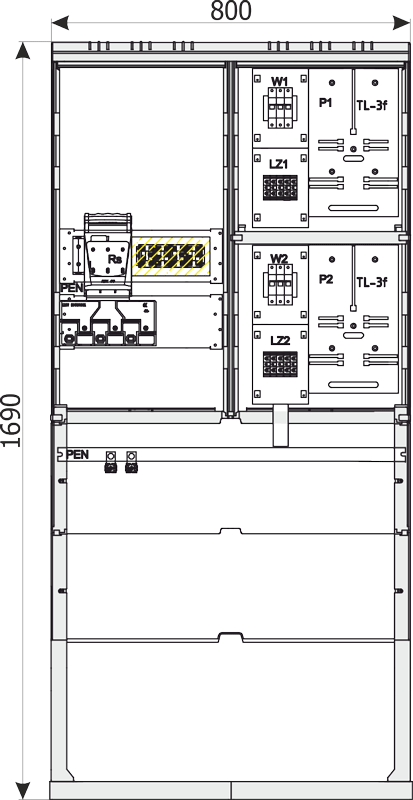

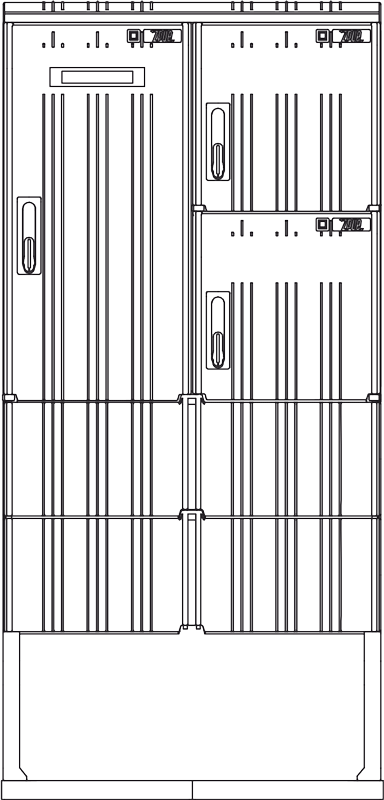

energia 05
energia 06
energia 07

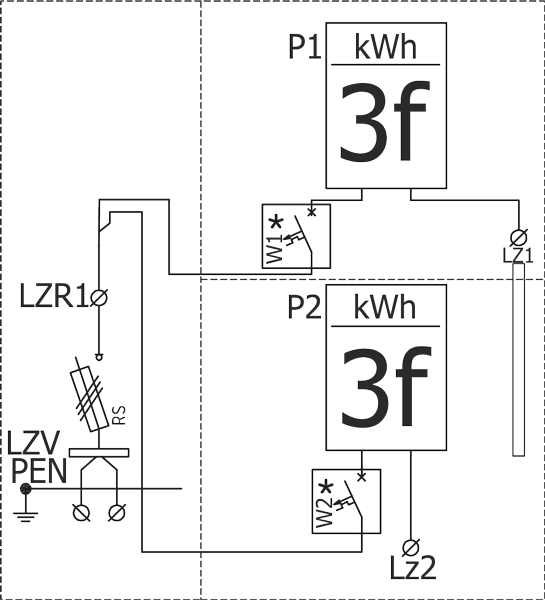

energia 08
Basic technical parameters
Rated current up to 160 A
Rated voltage 230 / 400 V
Rated voltage of the isolation 500 / 690 V
Rated frequency 50 Hz
Protection degree IP 44
Device protection class class II

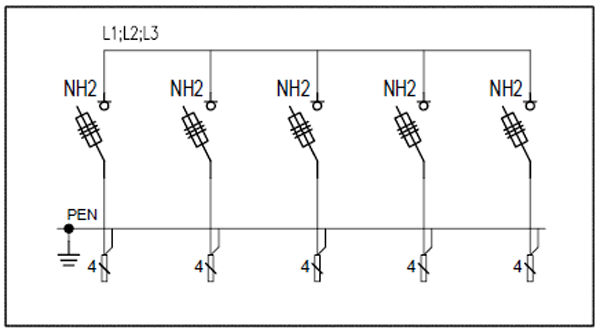

KRSN-P2/2F-NH2/2R-NH00/F catalogue number EN-19

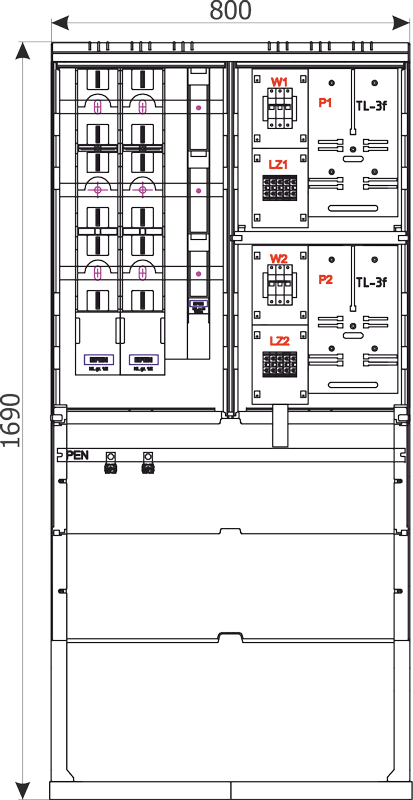

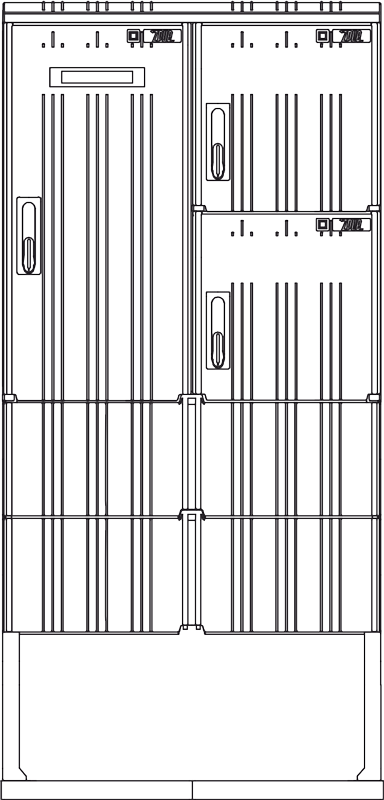

energia 09

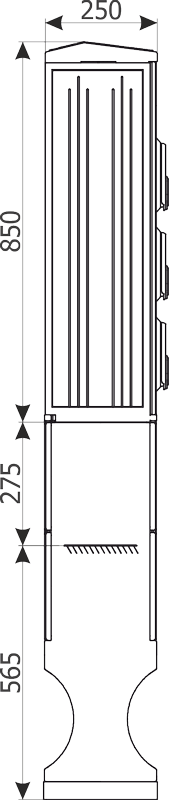

energia 10
energia 11

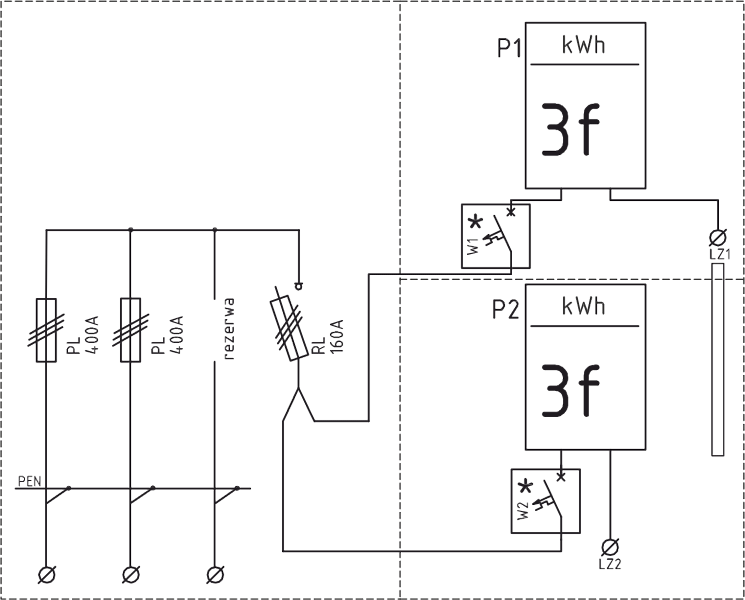

energia 12
Basic technical parameters
Rated current up to 630 A
Rated voltage 230 / 400 V
Rated voltage of the isolation 500 / 690 V
Rated frequency 50 Hz
Protection degree IP 44
Device protection class class II
KRSN-1/7R-NH-2/F catalogue number EN-32

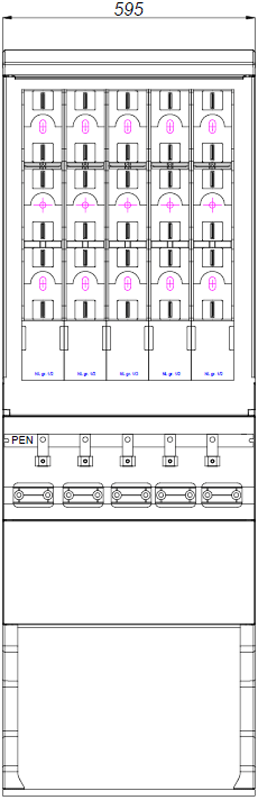

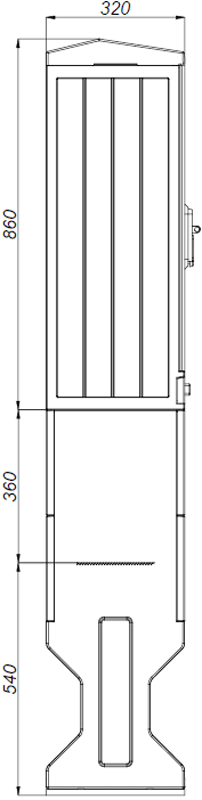

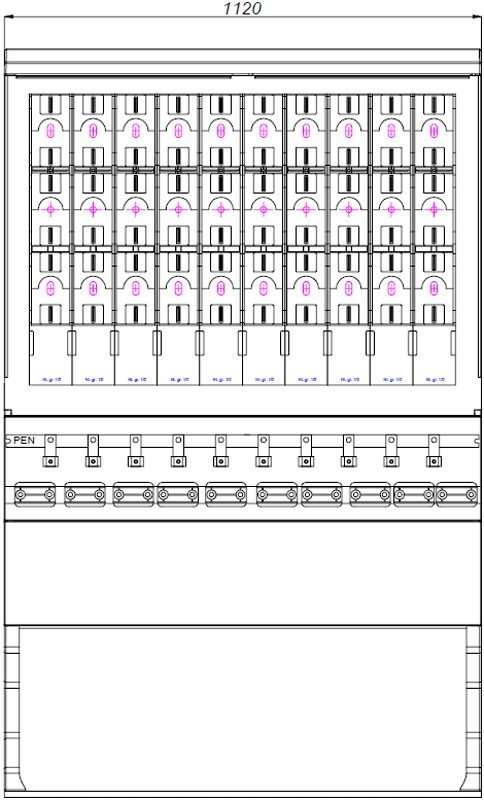

energia 13
energia 14
energia 15

energia 16
Basic technical parameters
Rated current up to 630 A
Rated voltage 230 / 400 V
Rated voltage of the isolation 500 / 690 V
Rated frequency 50 Hz
Protection degree IP 44
Device protection class class II
Exemplary solutions according to ENEA standards

Exemplary solutions according to ENEA standards

ZK1x-1P catalogue number E-2

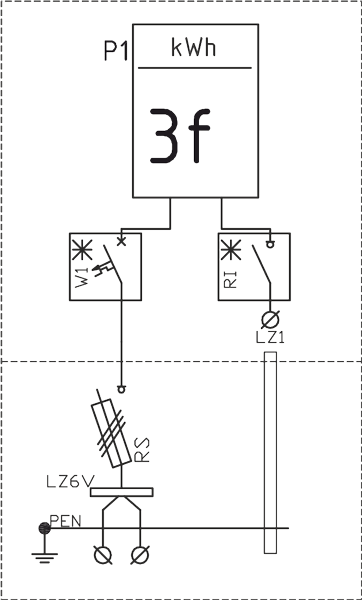

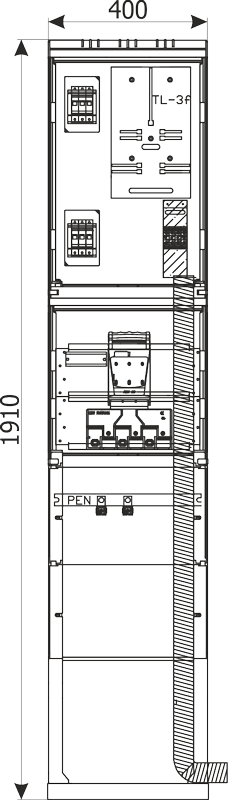

enea 01

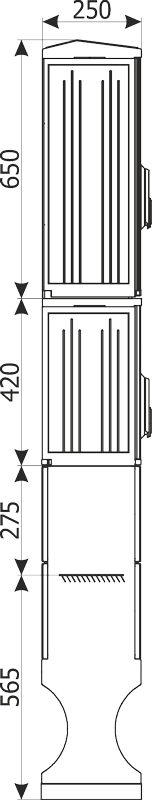

enea 02

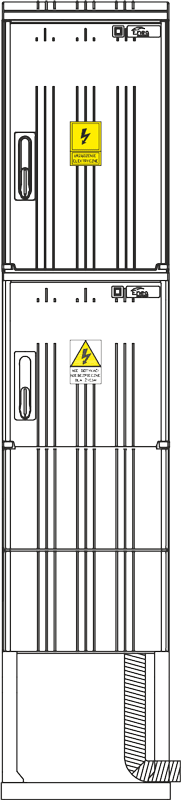

enea 03

enea 04
Basic technical parameters
Rated current 100 / 160 A
Rated voltage 230 / 400 V
Rated voltage of the isolation 500 / 690 V
Rated frequency 50 Hz
Protection degree IP 44
Device protection class class II

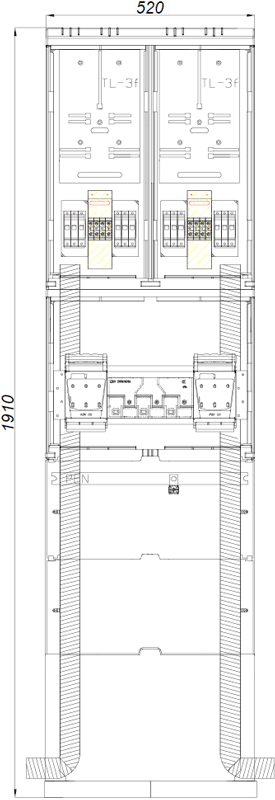

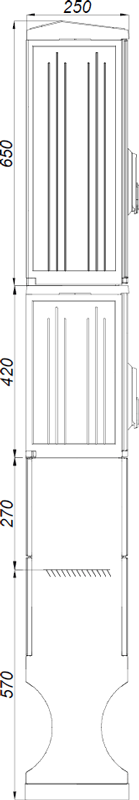

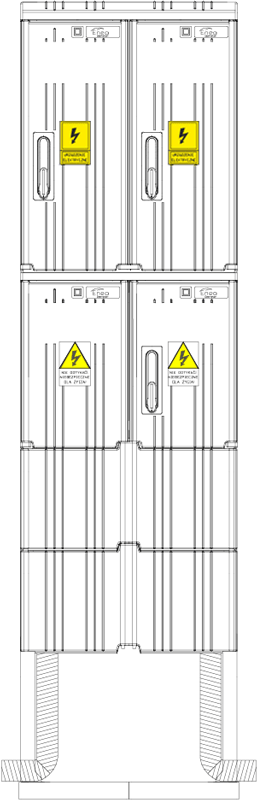

ZK2-2P catalogue number E-4

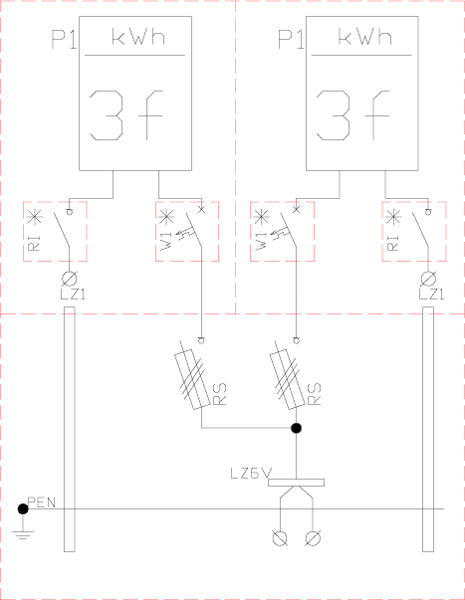

enea 05
enea 06
enea 07

enea 08
Basic technical parameters
Rated current up to 160 A
Rated voltage 230 / 400 V
Rated voltage of the isolation 500 / 690 V
Rated frequency 50 Hz
Protection degree IP 44
Device protection class class II
Exemplary solutions according to TAURON standards

Exemplary solutions according to TAURON standards

ZK1e-1P catalogue number T-58

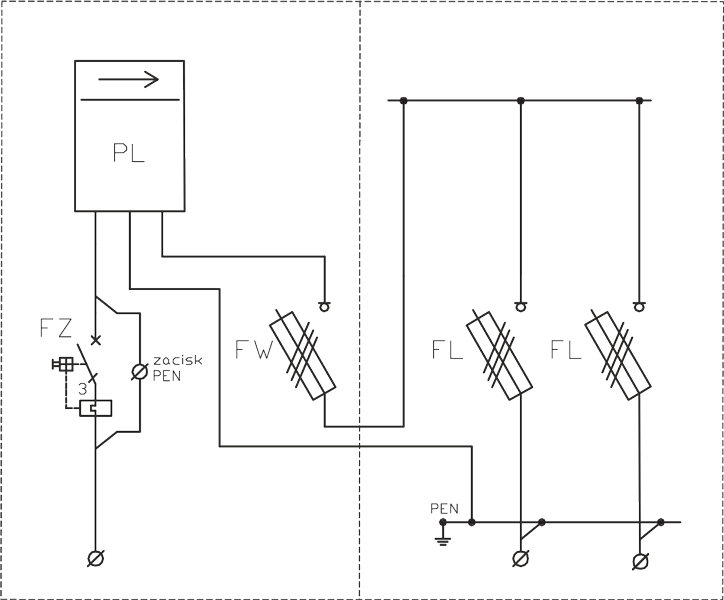

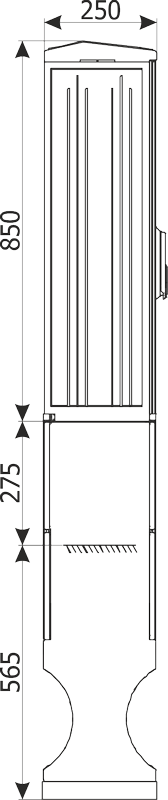

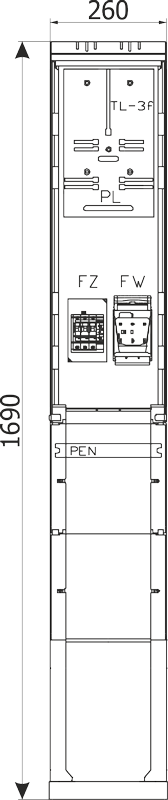

tauron 01
tauron 02

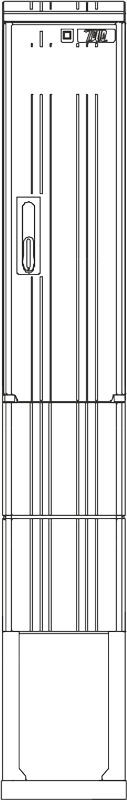

tauron 03

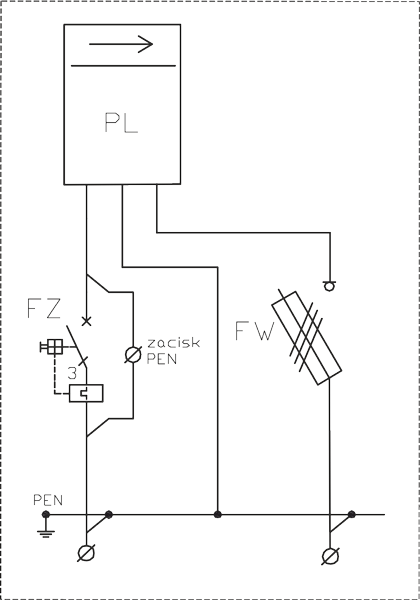

tauron 04
Basic technical parameters
Rated current 100 / 160 A
Rated voltage 230 / 400 V
Rated voltage of the isolation 500 / 690 V
Rated frequency 50 Hz
Protection degree IP 44
Device protection class class II

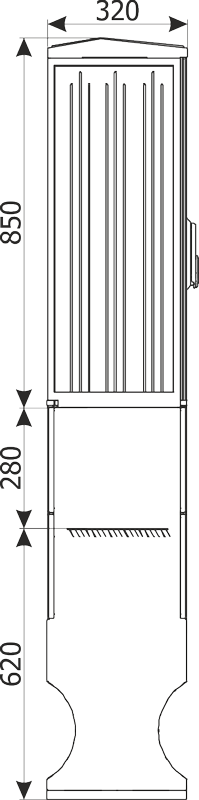

ZK2a-1P catalogue number T-1

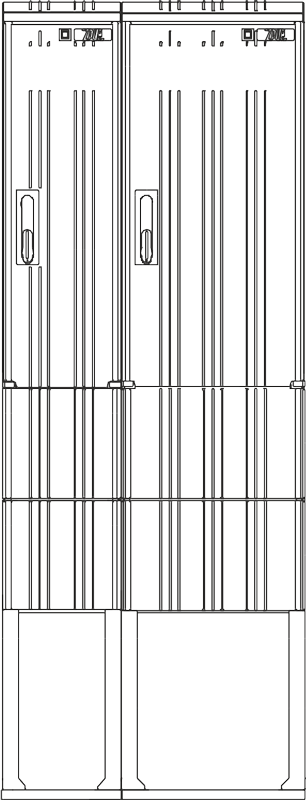

tauron 05
tauron 06
tauron 07

tauron 08
Basic technical parameters
Rated current up to 630 A
Rated voltage 230 / 400 V
Rated voltage of the isolation 500 / 690 V
Rated frequency 50 Hz
Protection degree IP 44
Device protection class class II
Exemplary solutions according to PGE standards

Exemplary solutions according to PGE standards

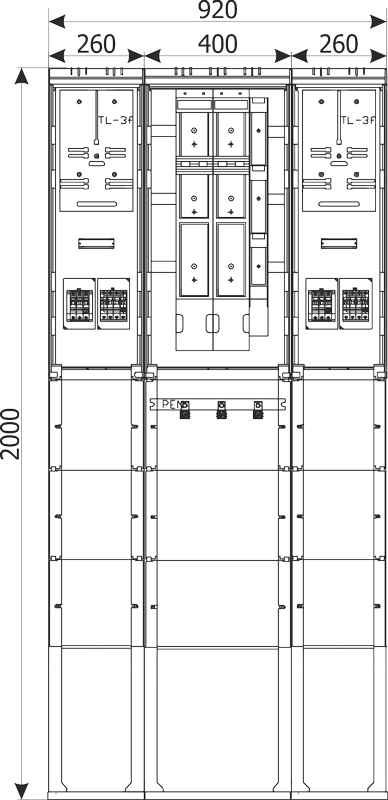

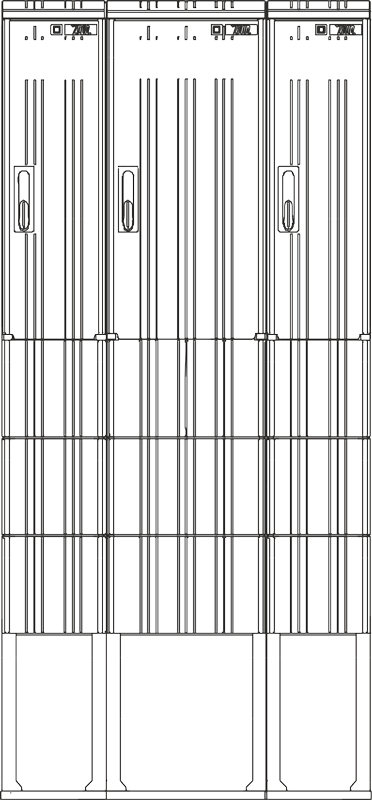

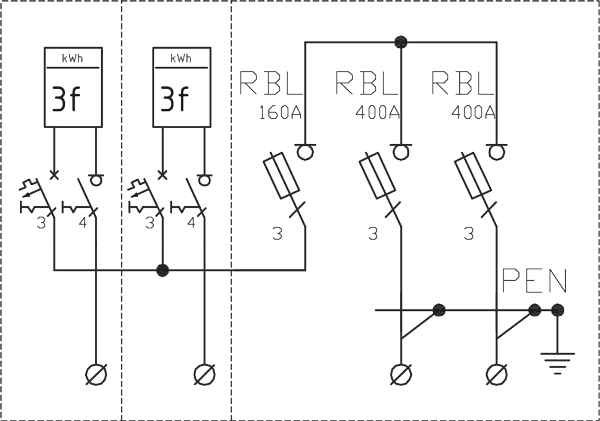

ZK3 RBL 2x400A+1x160A/2P KK catalogue number PGE-66
pge 01
pge 02
pge 03

pge 04
Basic technical parameters
Rated current up to 630 A
Rated voltage 230 / 400 V
Rated voltage of the isolation 500 / 690 V
Rated frequency 50 Hz
Protection degree IP 44
Device protection class class II

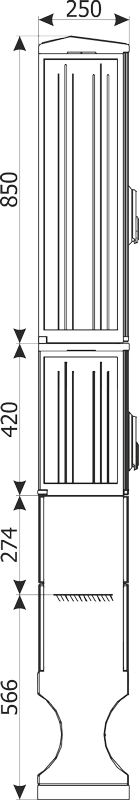

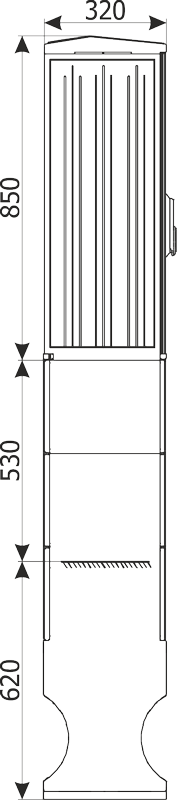

ZK1 RBK 160A/1P catalogue number PGE-40

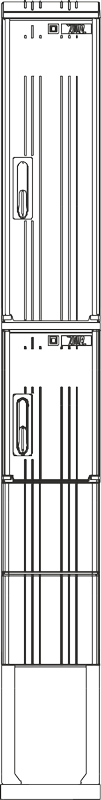

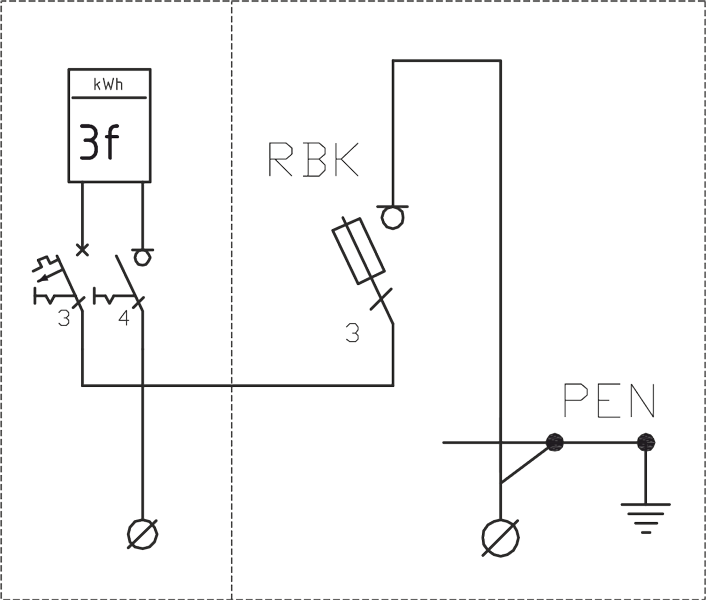

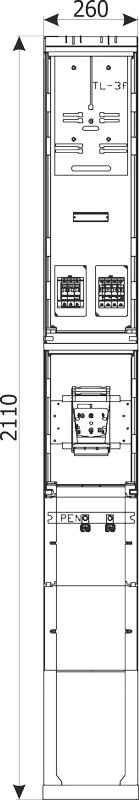

pge 05
pge 06
pge 07

pge 08
Basic technical parameters
Rated current up to 160 A
Rated voltage 230 / 400 V
Rated voltage of the isolation 500 / 690 V
Rated frequency 50 Hz
Protection degree IP 44
Device protection class class II
Exemplary solutions according to RWE standards

Exemplary solutions according to RWE standards

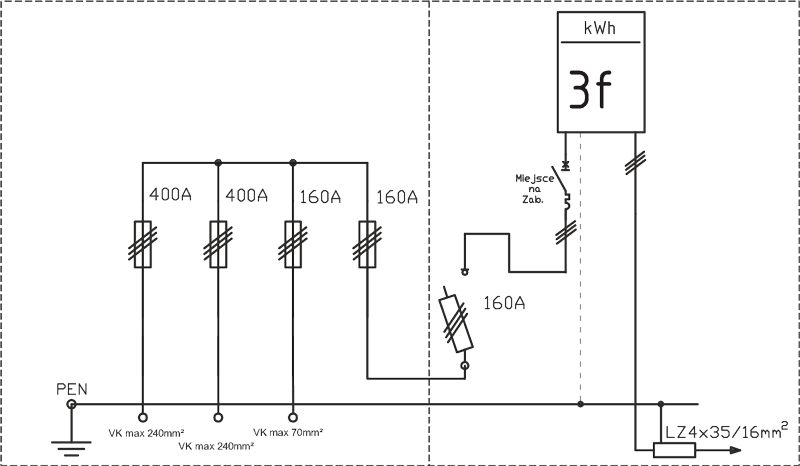

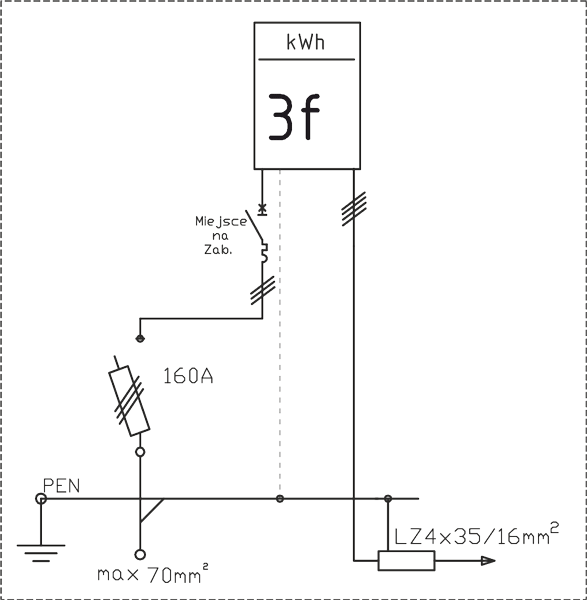

Sz-1 catalogue number R-1

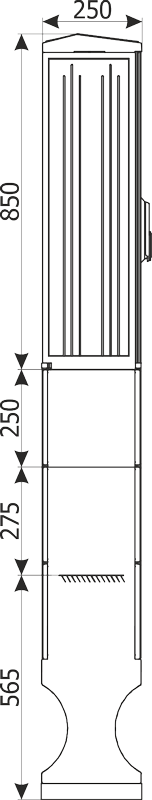

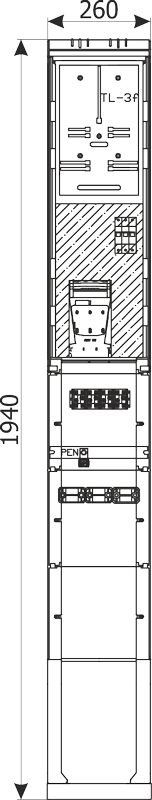

rwe 01

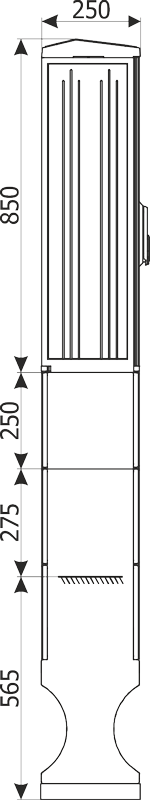

rwe 02

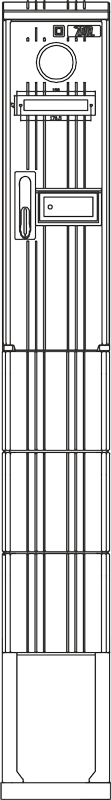

rwe 03

rwe 04
Basic technical parameters
Rated current up to 160 A
Rated voltage 230 / 400 V
Rated voltage of the isolation 500 / 690 V
Rated frequency 50 Hz
Protection degree IP 44
Device protection class class II
ZZ-1 catalogue number R-7

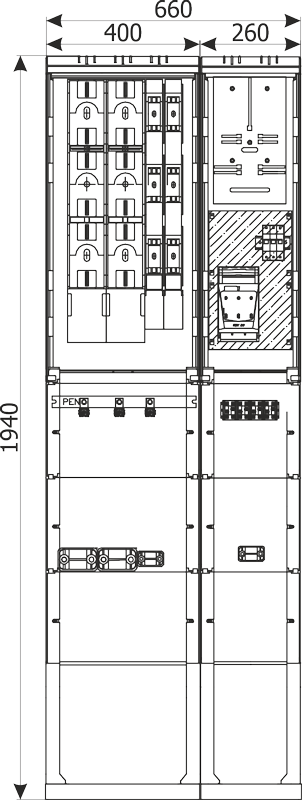

rwe 05
rwe 06

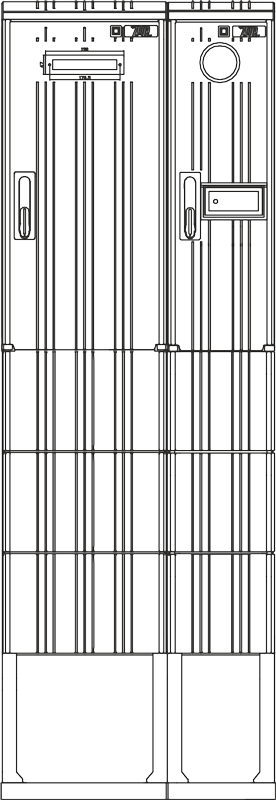

rwe 07

rwe 08
Basic technical parameters
Rated current up to 400 A
Rated voltage 230 / 400 V
Rated voltage of the isolation 500 / 690 V
Rated frequency 50 Hz
Protection degree IP 44
Device protection class class II
Exemplary solutions according to ZPUE S.A. standards

Exemplary solutions according to ZPUE S.A. standards

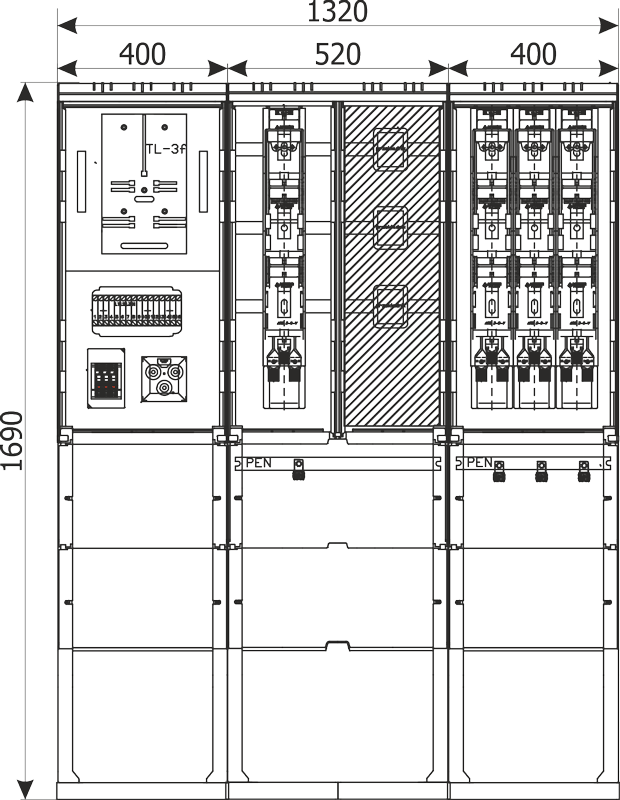

ZK1/3PP catalogue number 30/10

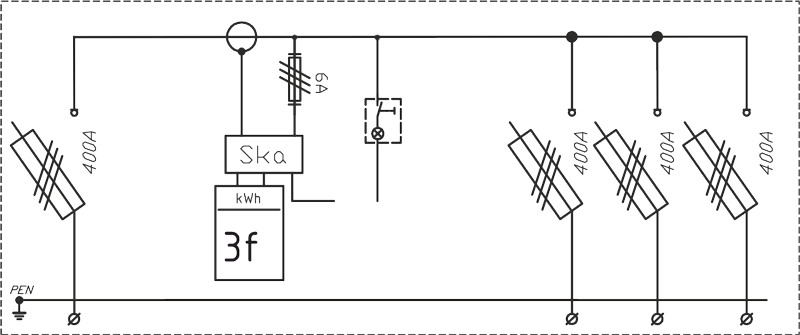

zpue 01

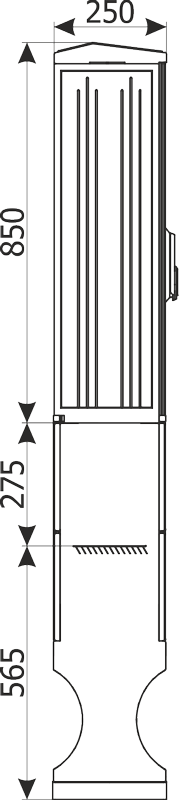

zpue 02

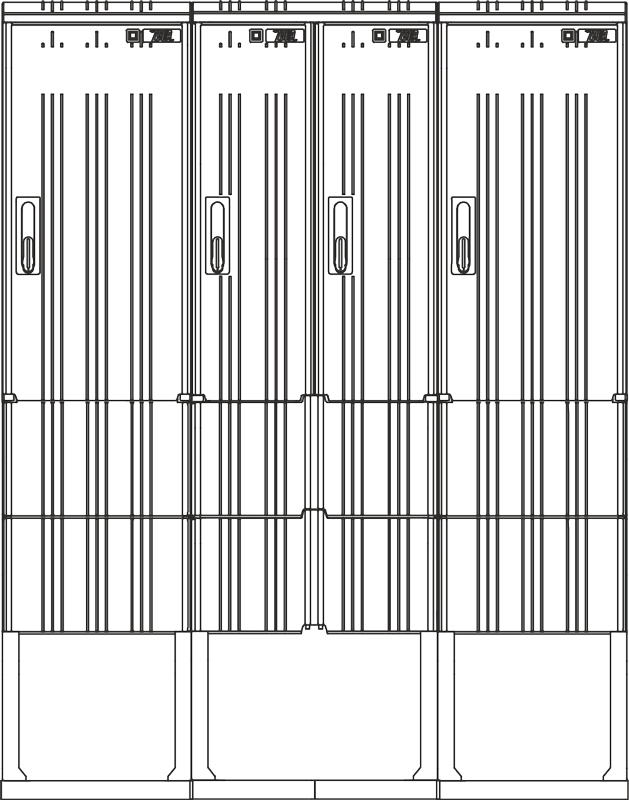

zpue 03

zpue 04
Basic technical parameters
Rated current up to 630 A
Rated voltage 230 / 400 V
Rated voltage of the isolation 500 / 690 V
Rated frequency 50 Hz
Protection degree IP 44
Device protection class class II

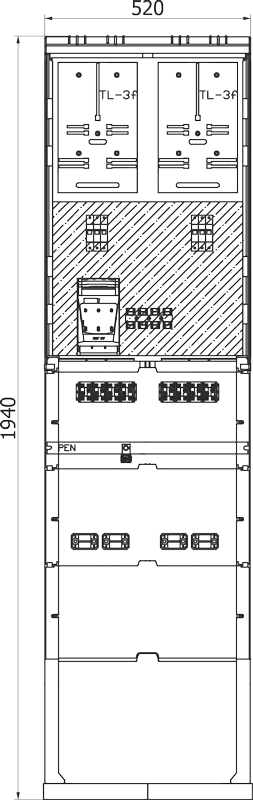

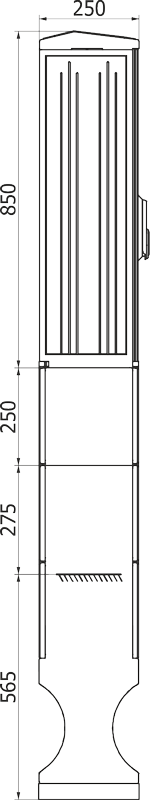

SZ-2 catalogue number R-2
zpue 05
zpue 06
zpue 07

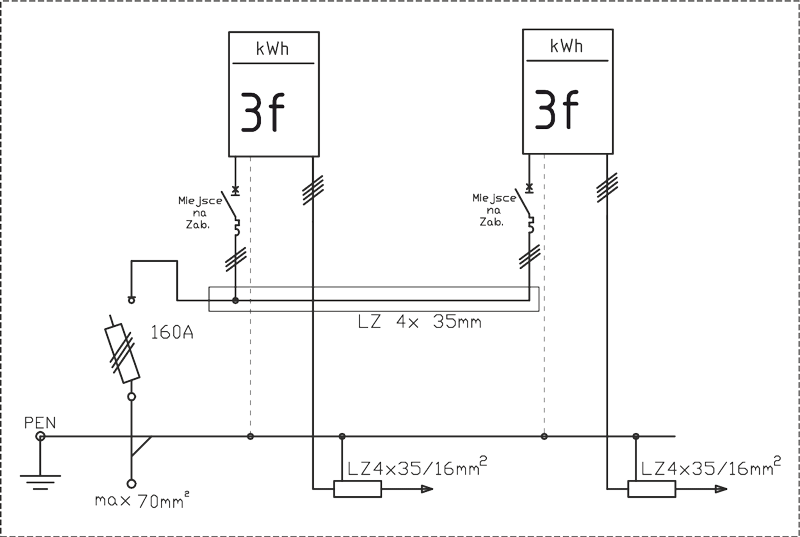

zpue 08
Basic technical parameters
Rated current up to 160 A
Rated voltage 230 / 400 V
Rated voltage of the isolation 500 / 690 V
Rated frequency 50 Hz
Protection degree IP 44
Device protection class class II

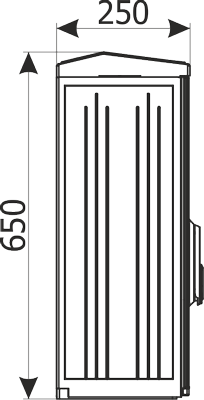

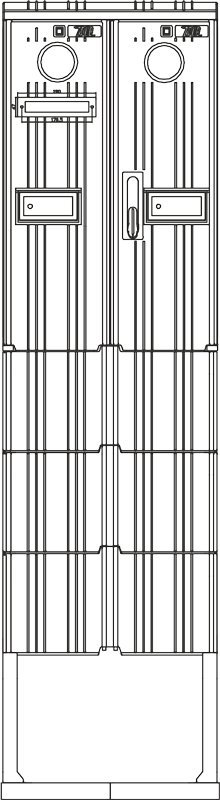

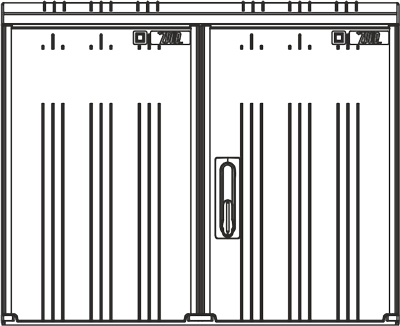

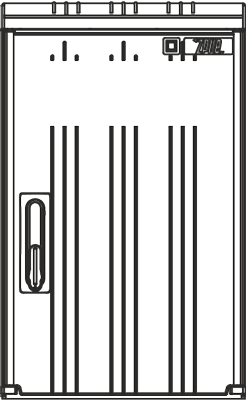

ZP-1 catalogue number 17/10

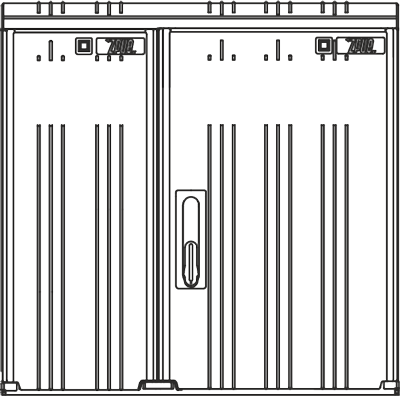

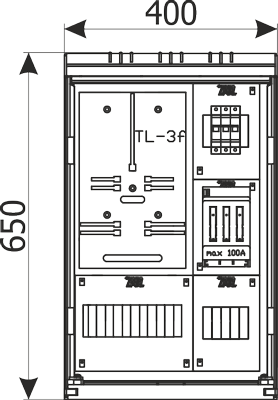

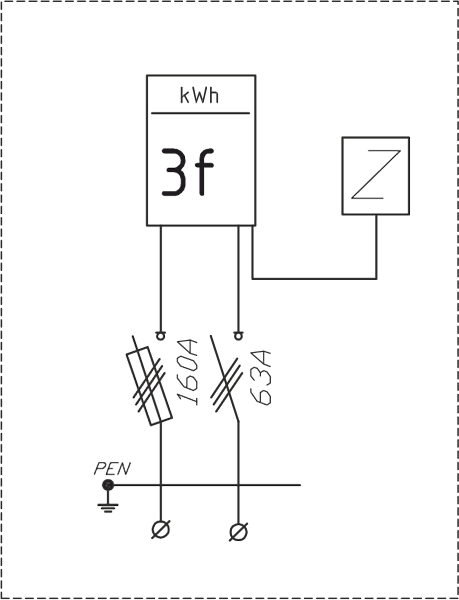

zpue 09

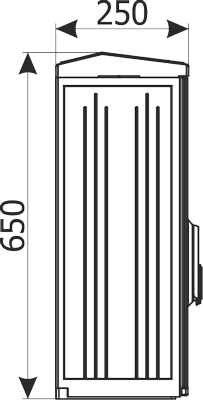

zpue 10
zpue 11

zpue 12
Basic technical parameters
Rated current up to 160 A
Rated voltage 230 / 400 V
Rated voltage of the isolation 500 / 690 V
Rated frequency 50 Hz
Protection degree IP 44
Device protection class class II
ZKPP catalogue number AMI TAURON T-84

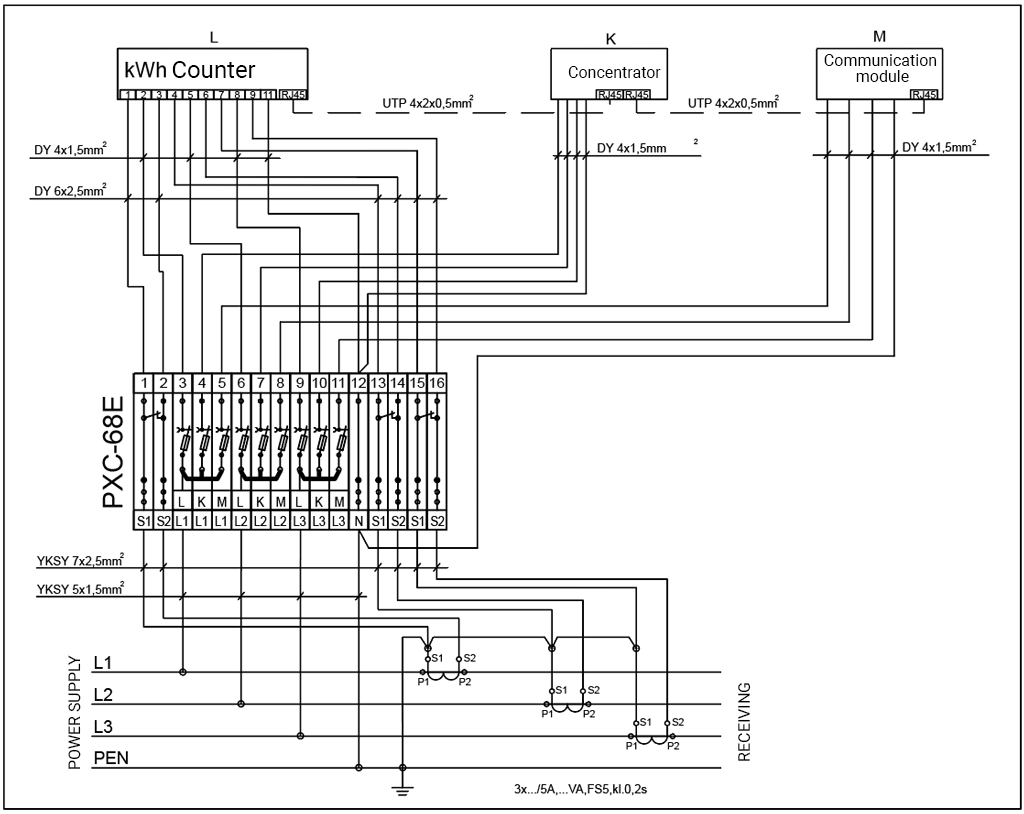

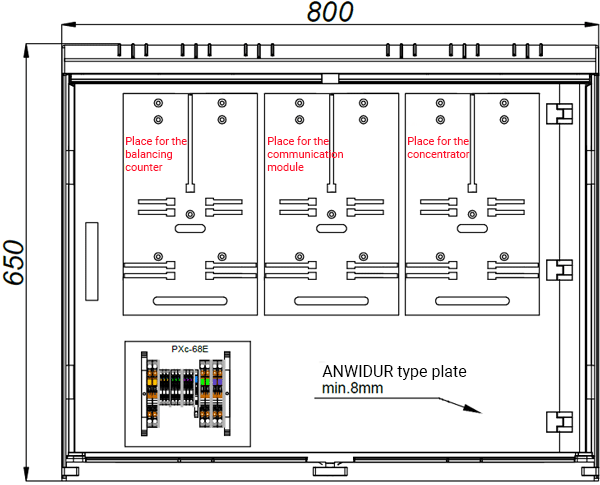

zpue 13
zpue 14
zpue 15

zpue 16
Basic technical parameters
Rated current up to 63 A
Rated voltage 230 / 400 V
Rated voltage of the isolation 500 / 690 V
Rated frequency 50 Hz
Protection degree IP 44
Device protection class class II

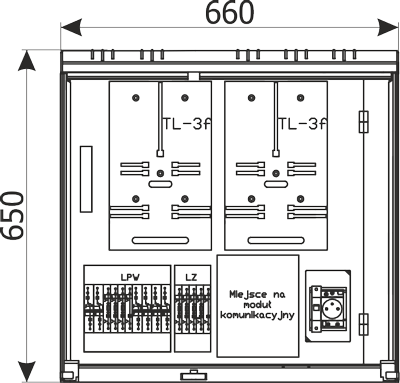

ZKPP catalogue number AMI PBE-121

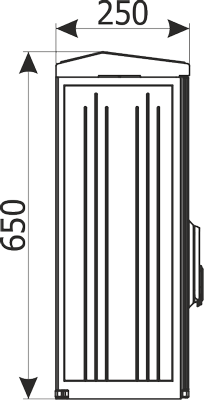

zpue 17
zpue 18
zpue 19

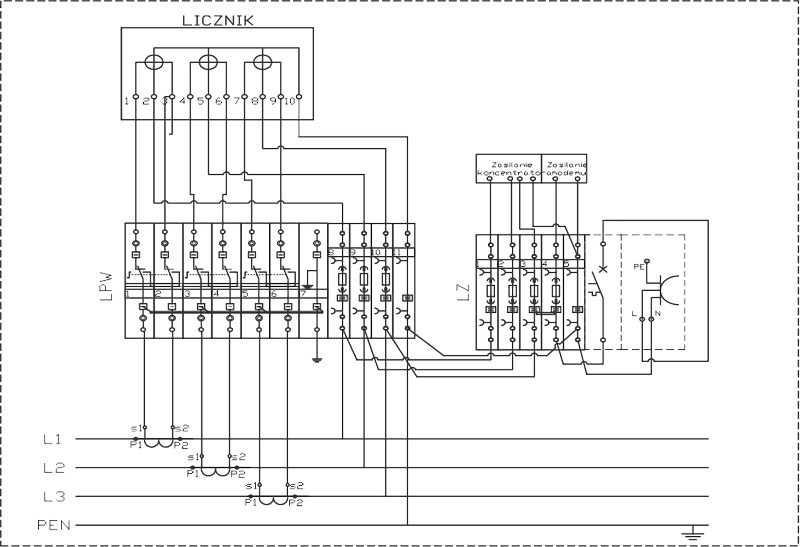

zpue 20
Basic technical parameters
Rated current up to 63 A
Rated voltage 230 / 400 V
Rated voltage of the isolation 500 / 690 V
Rated frequency 50 Hz
Protection degree IP 44
Device protection class class II

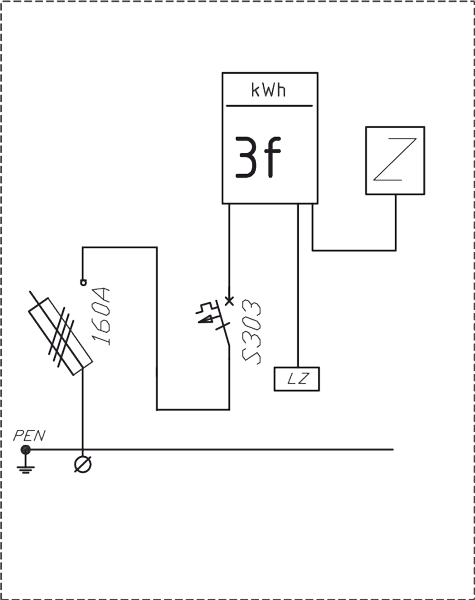

ZK1+1P catalogue number 23/10

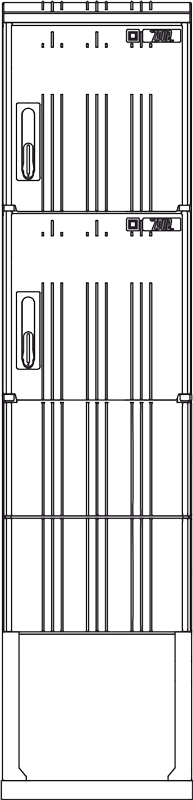

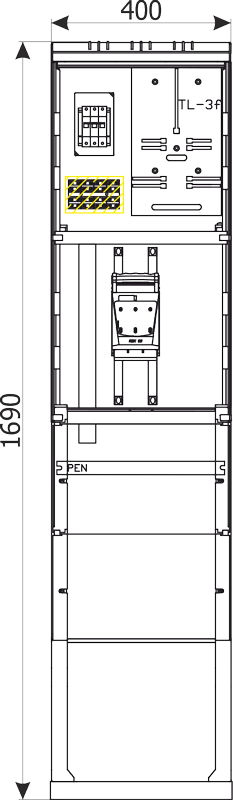

zpue 21
zpue 22
zpue 23

zpue 24
Basic technical parameters
Rated current up to 160 A
Rated voltage 230 / 400 V
Rated voltage of the isolation 500 / 690 V
Rated frequency 50 Hz
Protection degree IP 44
Device protection class class II
RSOU street lighting cabinets

RSOU street lighting cabinets

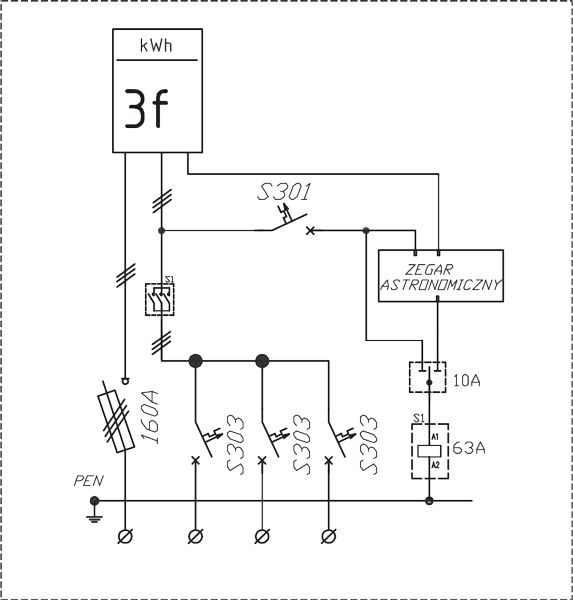

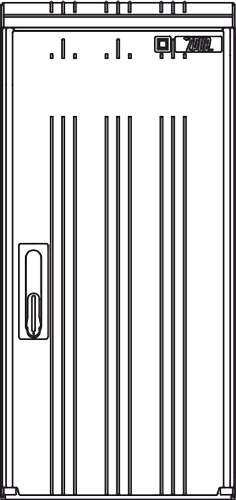

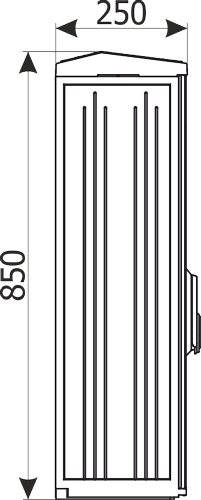

RSOU 1 catalogue number 32/10

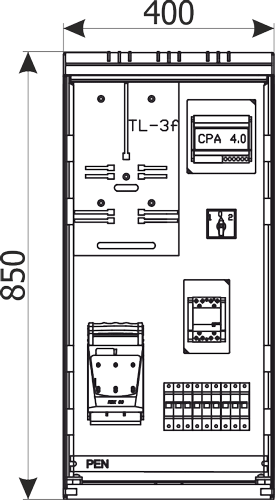

rsou 01
rsou 02
rsou 03

rsou 04
Basic technical parameters
Rated current up to 160 A
Rated voltage 230 / 400 V
Rated voltage of the isolation 500 / 690 V
Rated frequency 50 Hz
Protection degree IP 44
Device protection class class II
Rozdzielnica String BOX - SCK
rsou 05
rsou 06
rsou 07

rsou 08

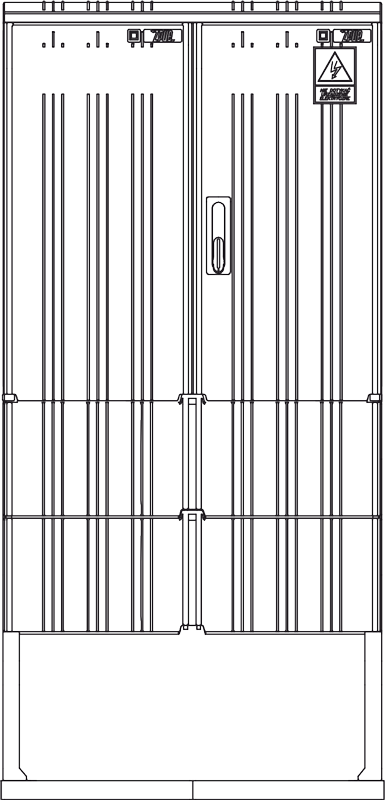

RSOU 6 catalogue number 36/10

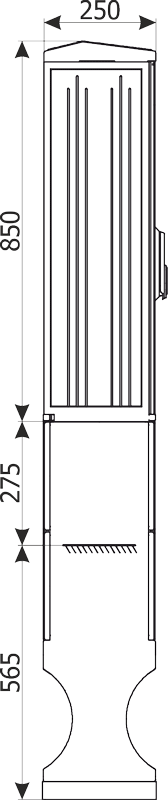

rsou 09
rsou 10
rsou 11

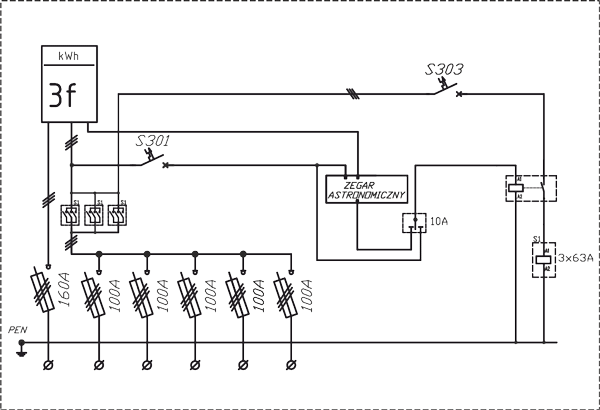

rsou 12
Basic technical parameters
Rated current up to 160 A
Rated voltage 230 / 400 V
Rated voltage of the isolation 500 / 690 V
Rated frequency 50 Hz
Protection degree IP 44
Device protection class class II
Construction switchgears RB

Construction switchgears RB

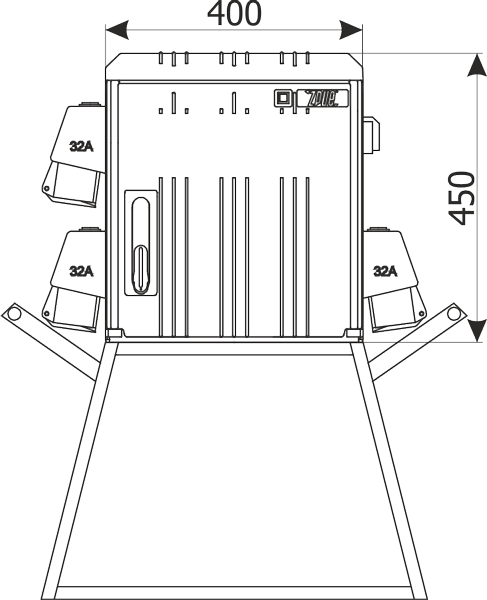

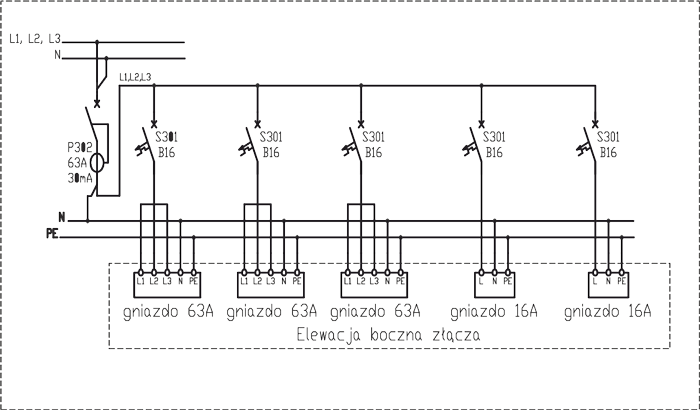

RB1 catalogue number 38/10

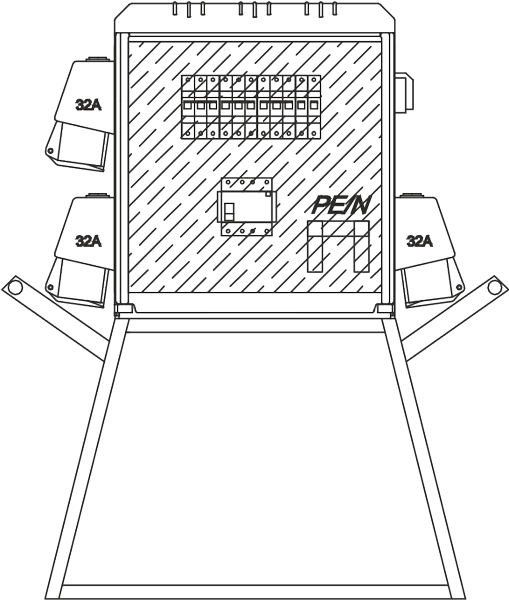

budowlane 01

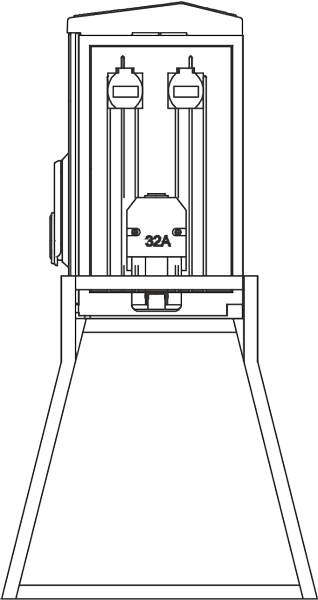

budowlane 02
budowlane 03

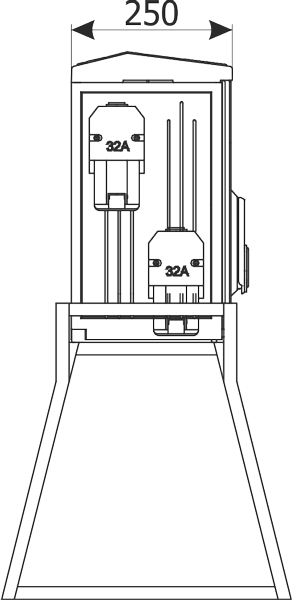

budowlane 04

budowlane 05
Basic technical parameters
Rated current up to 63 A
Rated voltage 230 / 400 V
Rated voltage of the isolation 500 / 690 V
Rated frequency 50 Hz
Protection degree IP 44
Device protection class class II
SZR SYSTEMS

SZR SYSTEMS

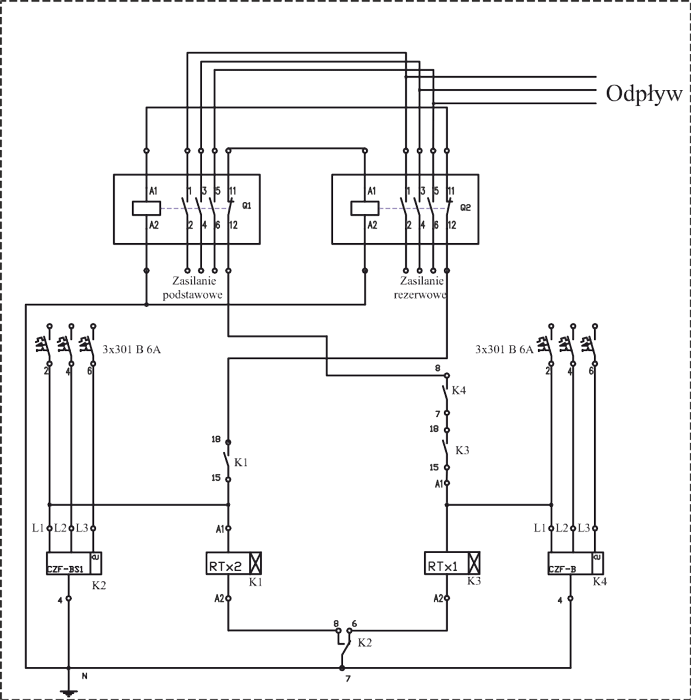

SZR 220A catalogue number 40/20

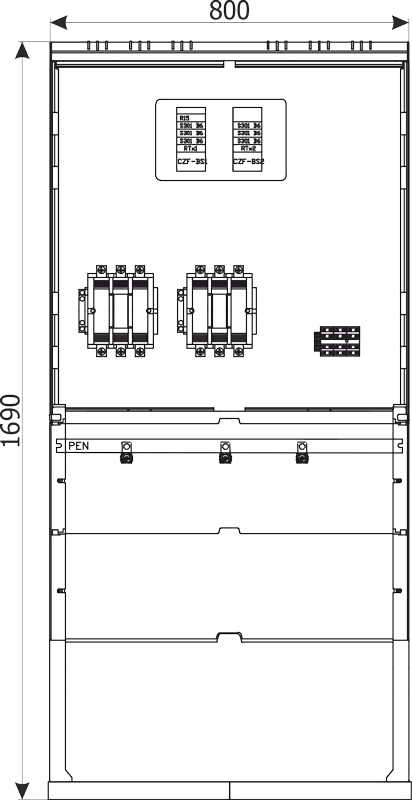

szr 01

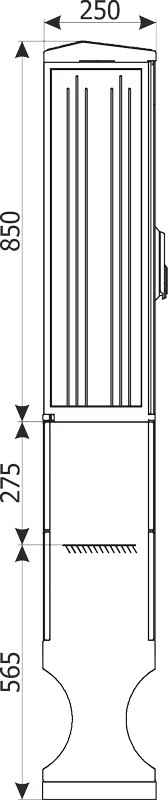

szr 02

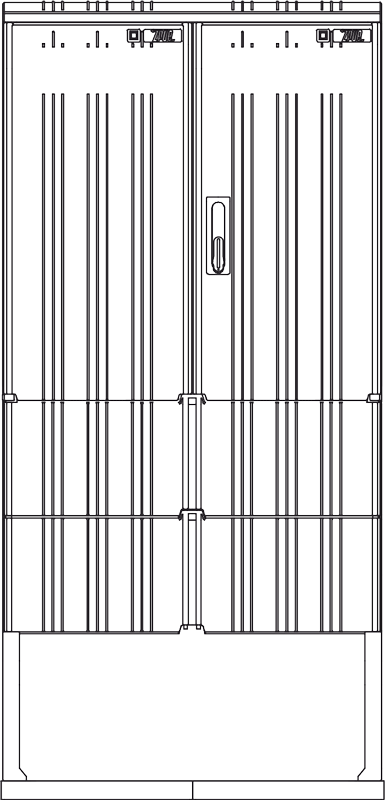

szr 03

szr 04
Basic technical parameters
Rated current up to 220 A
Rated voltage 230 / 400 V
Rated voltage of the isolation 500 / 690 V
Rated frequency 50 Hz
Protection degree IP 44
Device protection class class II
