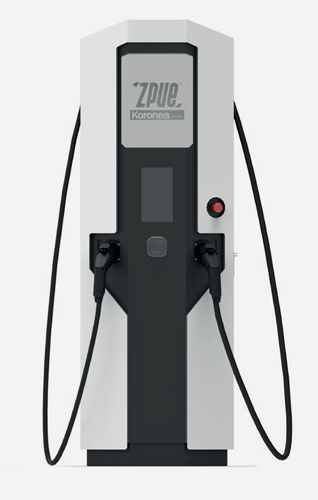

Electric vehicle
charging stations

Technical specification

All parameters

All parameters

AC power supply
  EV-C60 EV-C90 EV-C120 EV-C150
UAC voltage 3 x 400 V / 50 Hz
Power connection 90 kVA 123 kVA 156 kVA 189 kVA
Power factor ≥0,99 (at full load)
Efficiency ≥0,95 % (for an output power above 50%)
THDi ≤5 %
Energy metering metering conforming to the MID
Earthing system TN-S, TN-C, TN-C-S (other configurations available upon request)
Charging with DC current
  EV-C60 EV-C90 EV-C120 EV-C150
Rated power 60 kW 90 kW 120 kW 150 kW
UDC voltage 150 ÷ 1000 VDC
IDC current 0 ÷ 125 A: CHAdeMO 0 ÷ 125 A: CHAdeMO
0 ÷ 200 A: CCS typ 2 0 ÷ 250 A: CCS typ 2
Number of connections 2
Number of connections that can be
used at the same time		 1 2
Type and number of plugs CCS2 + CHAdeMO
2xCCS2 (upon request)		 CCS2 + CHAdeMO
2xCCS2
Length of the charging cable 4,2 m±5%
Charging with AC current
  EV-C60 EV-C90 EV-C120 EV-C150
Rated power 22 kW
Voltage, frequency 400 V, 50 Hz
IAC current 32 A
Number of connections 1
Plug type AC typ 2
Length of the charging cable 4,2 m±5%,
Communication
  EV-C60 EV-C90 EV-C120 EV-C150
Authorisation RFID, PIN code, operator’s application
Protocol OCPP 1.6 J
External communication GSM: 3G/4G LTE, Modbus TCP/IP
User interface
  EV-C60 EV-C90 EV-C120 EV-C150
Wyświetlacz HMI 15” touch panel
Sygnalizacja led indicator lights showing the charging station status
Bezpieczeństwo integrated emergency stop switch
Enclosure
  EV-C60 EV-C90 EV-C120 EV-C150
Dimensions 850mm x 800mm x 2050mm
Material powder-coated stainless steel
Operating temperature od -25°C do +50°C (> +40°C the output power may be reduced at temperatures)
Relative humidity ≤ 95% (not condensed)
Protection Rating IP54 / IK10
Weight 470 kg 500 kg 530 kg 570 kg
Conformity to standards
  EV-C60 EV-C90 EV-C120 EV-C150
Charging IEC 62196-1, IEC 62196-2, IEC 62196-3, IEC 61851-1, CHAdeMO rev.1.2
Communication IEC 61851-23, IEC 61851-24, IEC 62479-1, DIN 70121
General CE, EN 60529, EN 62262, IEC 61851-21-2, LVD 2014/35/UE
Optional equipment and accessories

Optional equipment and accessories

Optional equipment and accessories *
“OVER THE AIR” firmware updates
Payment terminal (planned implementation of the service – 4th quarter of 2023)
Charging station branding
DC electricity meters at the charging point
Change of charging cable length, Type-2 charging socket
Precast foundation
Suitable for further expansion (up to 150 kW)
* - selection of extra equipment results in a change of price and longer lead time.
Allocation of power to the connectors

Allocation of power to the connectors

EV-C60 * different allocation available upon request
  CCS2 CHAdeMO (CCS2 upon request)
1. 60 kW -
2. - 60 kW
EV-C90
  CCS2 CHAdeMO/CCS2
1. 90 kW -
2. 60 kW 30 kW
EV-C120
  CCS2 CHAdeMO/CCS2
1. 120 kW -
2. 60 kW 60 kW
EV-C150
  CCS2 CHAdeMO/CCS2
1. 150 kW -
2. 90 kW 60 kW
