Cable, metering boxes in aluminium cubicles

Cable connectors are permitting execution departure from the cable route low voltage power supply and the recipient using the internal power supply line.

Introduction

Cable connection boxes in aluminium enclosures - Low Voltage switchgear

Technical data

Basic technical parameters
Rated impulse 230/400V
Rated insulation voltage 1000 V
Rated current 250 ÷ 630 A
Continuous rated current of the meter part up to 100 A
Rated frequency 50 Hz
Ingress protection rating IP44 - IP541)
Number of outgoing bays unlimited(1 -...)
Number of metering bays unlimited(1 -...)

Note!
1) On agreement with the manufacturer it is possible to construct the enclosure with IP66 protection rating

Dimensions and weights of standard connection boxes

ZK connection boxes
Design 120 240
External dimensions Width
[mm]
Height
[mm]
Depth
[mm]
Weight
[kg]
Width
[mm]
Height
[mm]
Depth
[mm]
Weight
[kg]
ZK-1a, ZK-1b 400 660 250 11,0 400 860 250 14,5
ZK-2a
ZK-2b, ZK-2c, ZK-2d
600 660 250 22,5
20,0
600 860 250 29,0
26,5
ZK-3a
ZK-3b, ZK-3e
ZK-3c
ZK-3d
850 660 250 25,0
25,5
23,5
25,0
850 860 250 31,5
32,5
30,5
32,0
Maximum cross-sections
of connection cables
120 mm2 240 mm2
  • connection boxes may be made in three versions: free-standing, wall-mounted and recess-mounted,

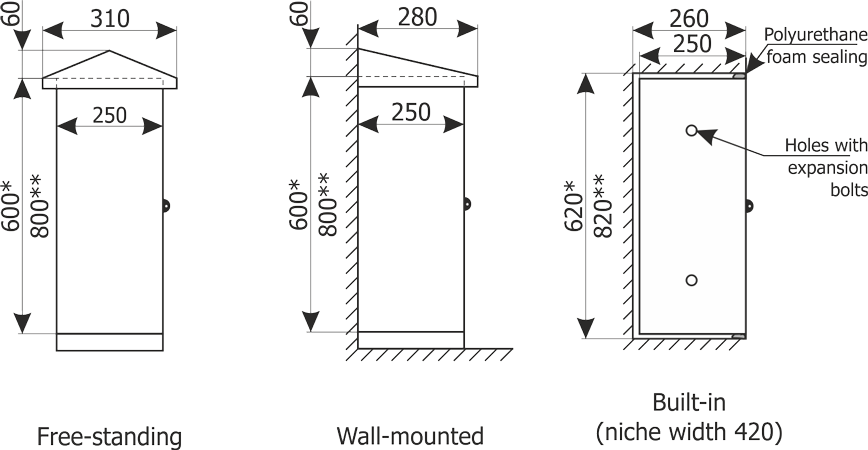

  • in case of a recess-mounted connection box, the dimension of the recess should be increased by 10 mm compared to the connection box dimensions (as in the drawing of the ZK-1 connection box),
  • it is possible to manufacture connection boxes with different dimensions, adapted to the needs at the location.

ZKP cabling & metering connection boxes
Design 120 240
External dimensions Width
[mm]
Height
[mm]
Depth
[mm]
Weight
[kg]
Width
[mm]
Height
[mm]
Depth
[mm]
Weight
[kg]
ZKP 1/1L 400 1260 250 22,0 400 1460 250 25,5
ZKP 2/2L 600 1260 250 32,5 600 1460 250 39
ZKP 3/2L, ZKP 3/3L 850 1260 250 44,5 850 1460 250 51,5
Maximum cross-sections
of connection cables
- power supply
- internal power
supply line
120 mm2
acc. to customer's needs
240 mm2
acc. to customer's needs

Foundation

Free-standing connection boxes are installed on prefabricated concrete foundations. These foundations enable feeding in of cables from four directions. The view, dimensions and example foundations of cable connection boxes was presented on figures below.

View and dimensions of prefabricated foundations

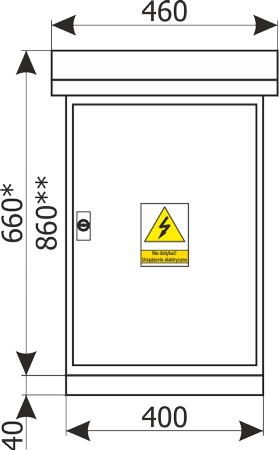

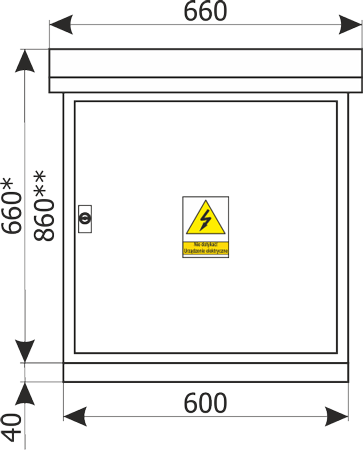

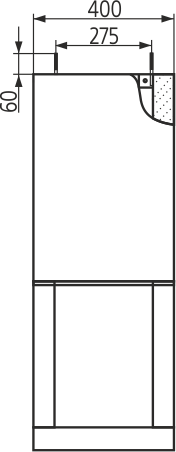

Front view of the ZK-1 connection box foundation
Front view of the ZK-1 connection box foundation
Front view of the ZK-2 connection box foundation
Front view of the ZK-2 connection box foundation

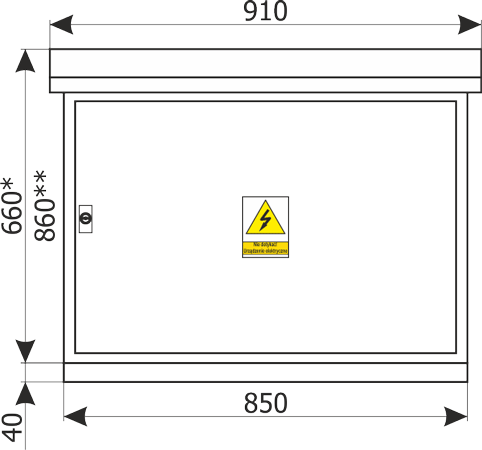

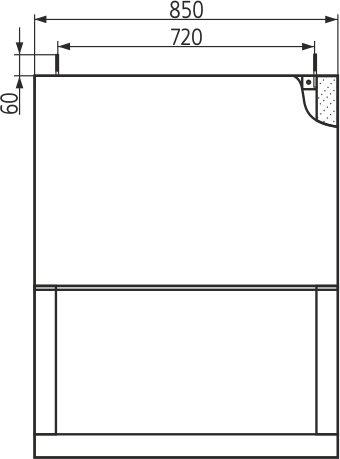

Front view of the ZK-3 connection box foundation
Front view of the ZK-3 connection box foundation

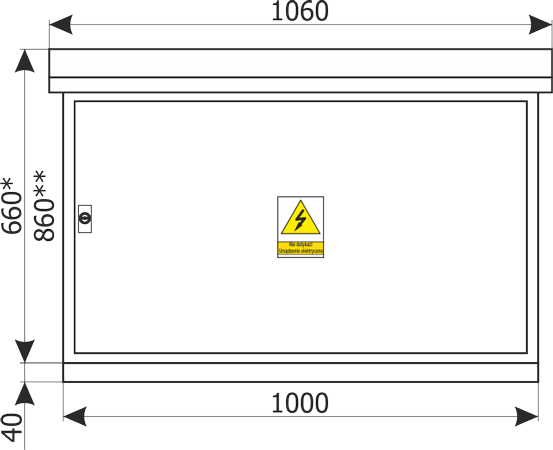

Front view of the ZK-4 connection box foundation
Front view of the ZK-4 connection box foundation

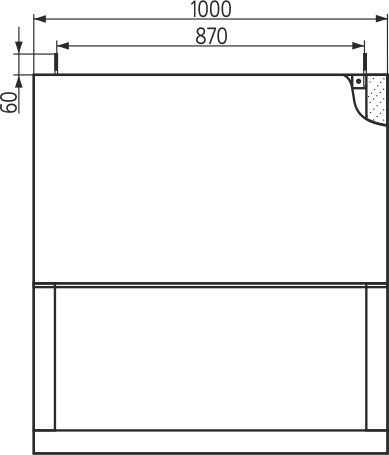

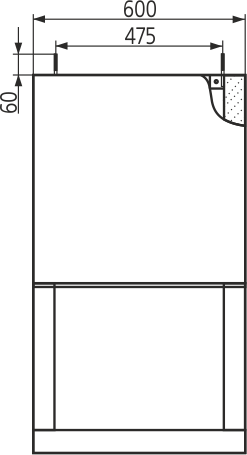

Side view of the foundation

Side view of the foundation

Exemplary solutions of cable and cable-metering boxes

Cable boxes

Front view
ZK-1 cable boxes
ZK-1 cable boxes
ZK-2 cable boxes
ZK-2 cable boxes
ZK-3 cable boxes
ZK-3 cable boxes
ZK-4 cable boxes
ZK-4 cable boxes

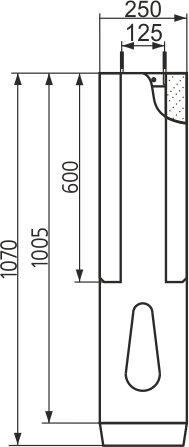

Side view
Side view

Cable-metering box

ZKP1/1L cabling & metering connection box

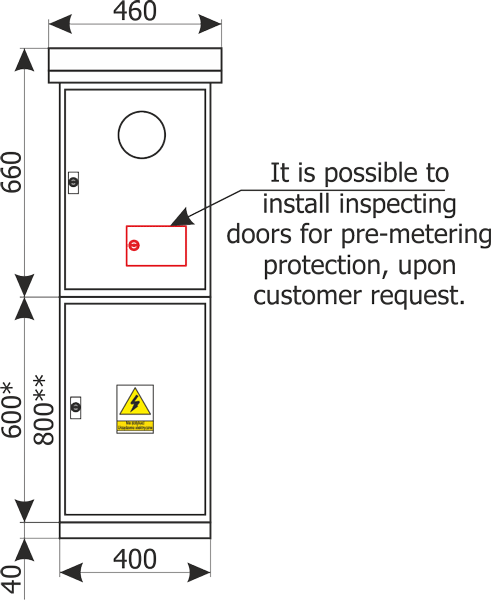

Front view
Front view ZKP1/1L cabling & metering connection box

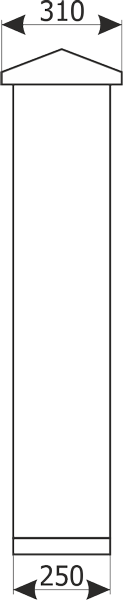

Side view
Side view - ZKP1/1L cabling & metering connection box

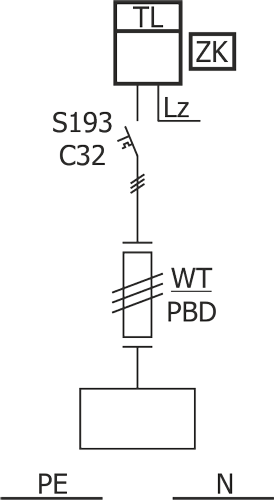

Schematic diagram of the connection box
Schematic diagram of the connection box - ZKP1/1L cabling & metering connection box

ZKP3/2L cabling & metering connection box

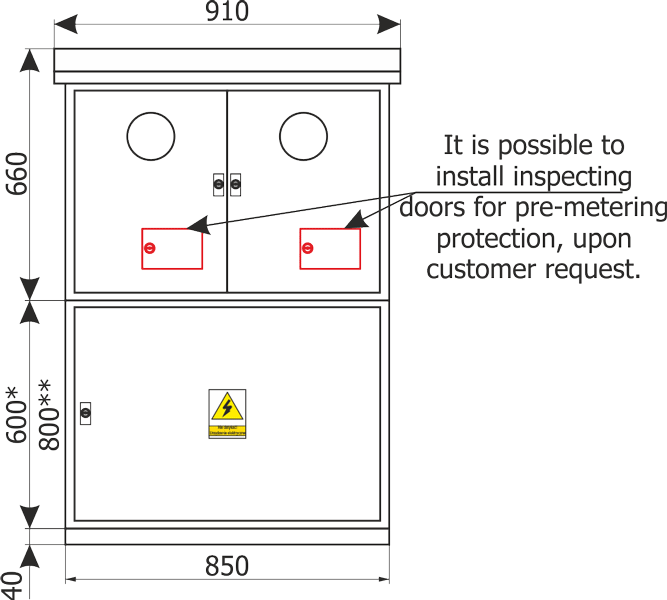

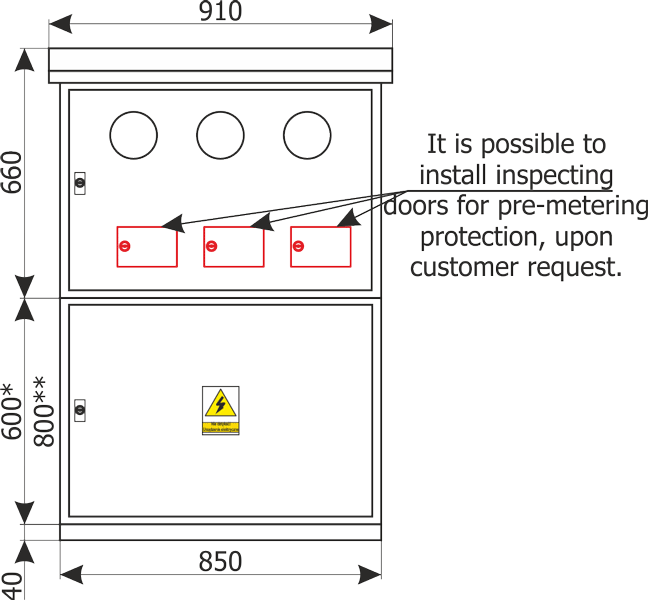

Front view
Front view - ZKP3/2L cabling & metering connection box

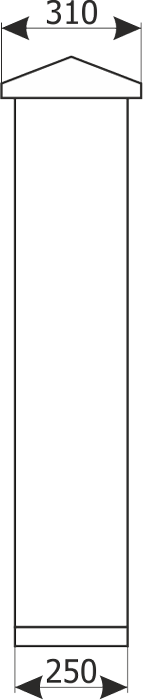

Side view
Side view - ZKP3/2L cabling & metering connection box

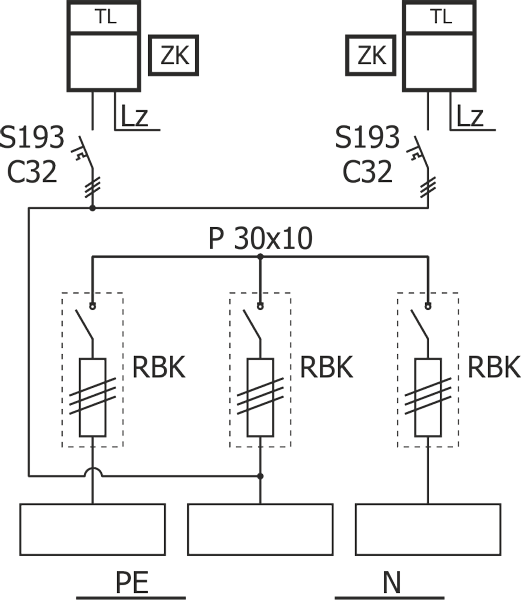

Schematic diagram of the connection box
Schematic diagram of the connection box - ZKP3/2L cabling & metering connection box

ZKP3/3L cabling & metering connection box
Front view
Front view - ZKP3/3L cabling & metering connection box
Side view
Side view - ZKP3/3L cabling & metering connection box
Schematic diagram of the connection box
Schematic diagram of the connection box - ZKP3/3L cabling & metering connection box

1) - for a version supplied with a max. 120 mm2 cable
2) - for a version supplied with a max. 240 mm2 cable

Note!
At the customer's request it is possible to manufacture a connection box in any configuration.

Example solutions for cable cabinets

ZK-nN 1z cable cabinet

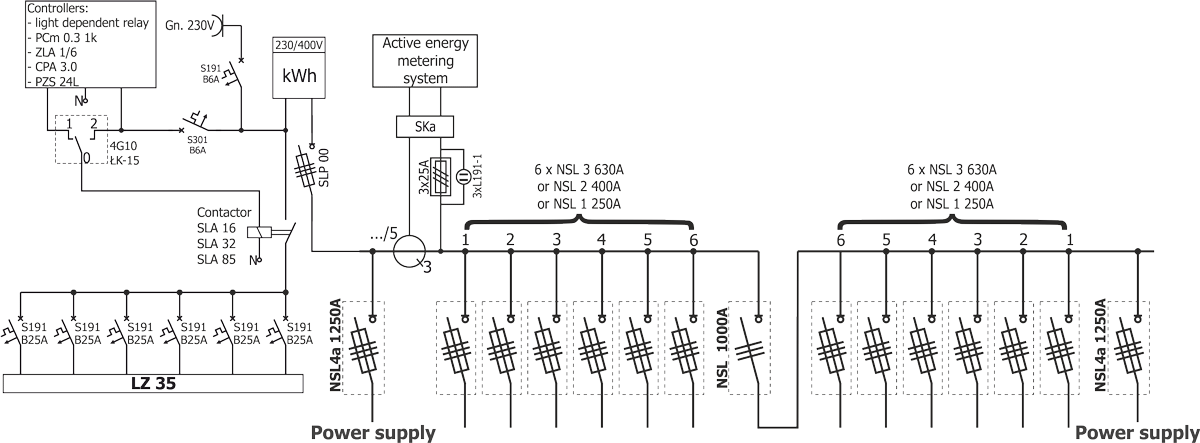

Electrical diagram
Electrical diagram - ZK-nN 1z cable cabinet

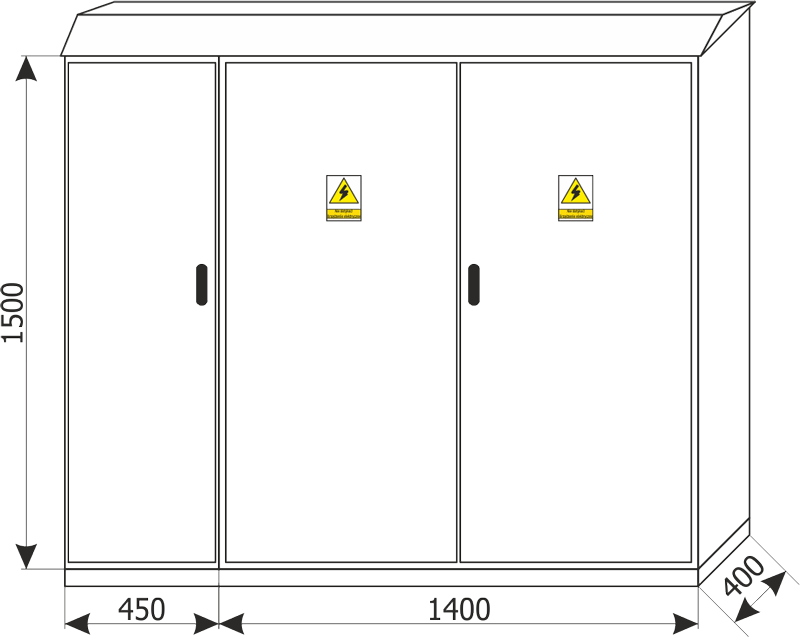

View
View - ZK-nN 1z cable cabinet

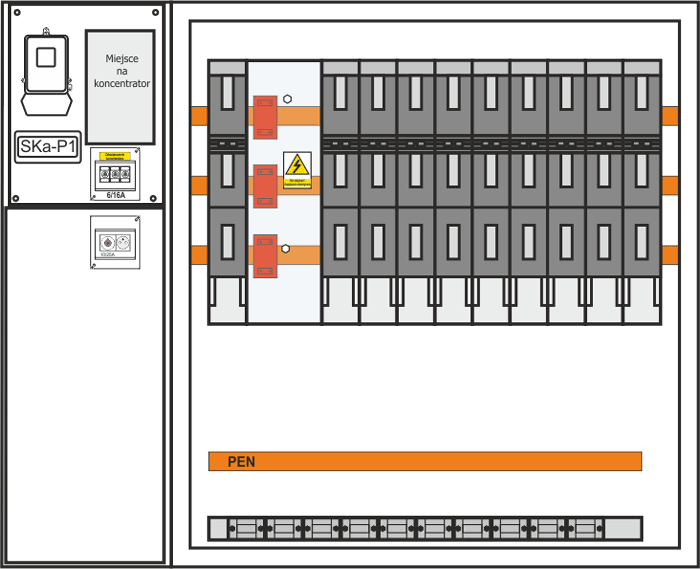

Arrangement of devices
Arrangement of devices - ZK-nN 1z cable cabinet
Note!
At the customer's request it is possible to manufacture a cabinet in any configuration.

ZK-nN 2z cable cabinet

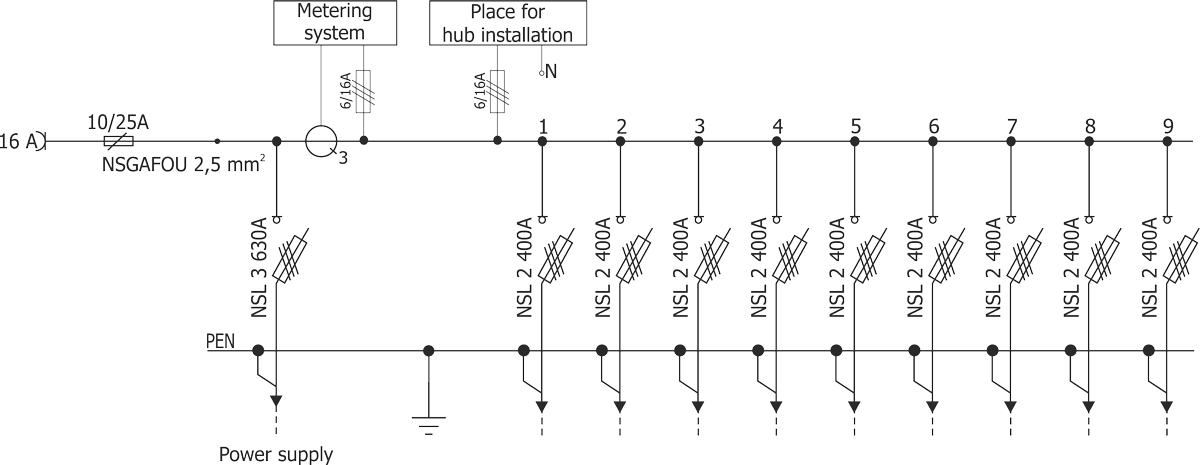

Electrical diagram
Electrical diagram - ZK-nN 2z cable cabinet

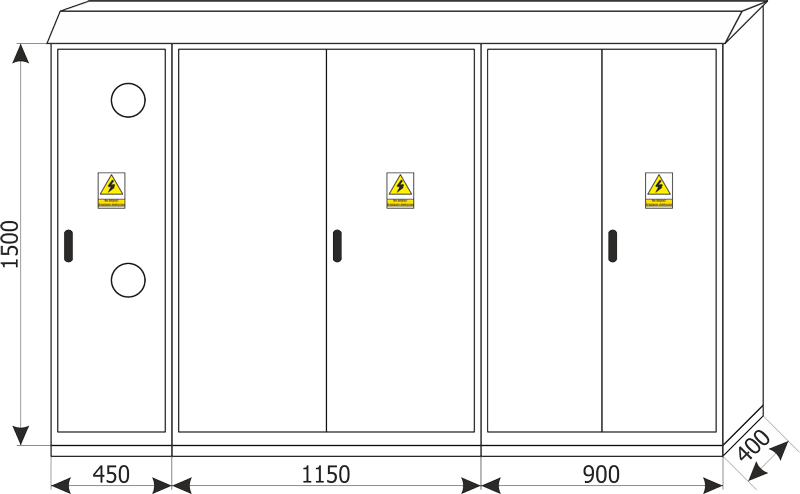

View
View - ZK-nN 2z cable cabinet

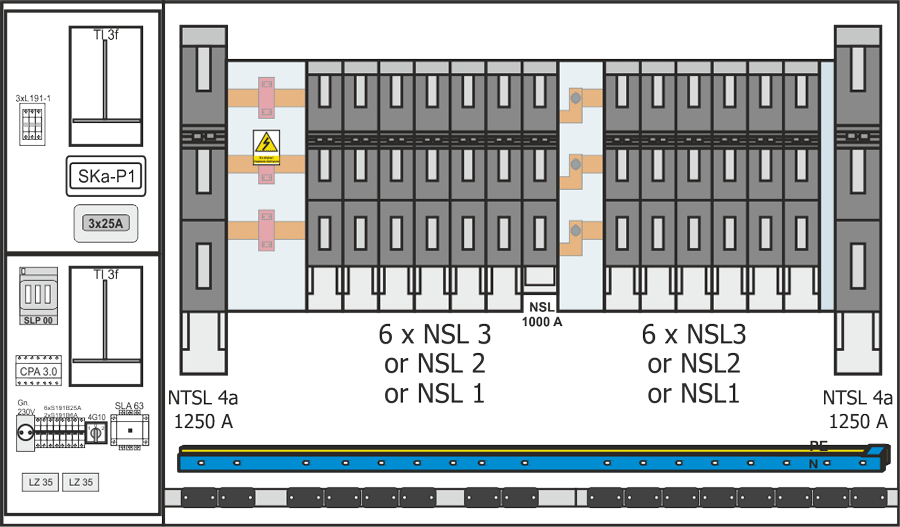

Arrangement of devices
Arrangement of devices - ZK-nN 2z cable cabinet
Note!
At the customer's request it is possible to manufacture a cabinet in any configuration.
