WST „Słup ogłoszeniowy” - małogabarytowa stacja transformatorowa w obudowie betonowej

The WST type substation may be used in every situation where the placement of typical transformer substations is not possible due to architectural constraints. Since it occupies a very small area, it fits perfectly into landscapes of old towns, markets and squares surrounded by dense, old buildings, and it has a stylised façade which enables adapting it to the architecture of existing buildings.

The station is a building composed of four monolithic reinforced concrete castings with a circular cross-section, which include: foundations, main structure with MV and LV switchgears, main structure with transformer chamber, and roof.

Substation height is specified as total above the ground level, with concrete roof
Standard 5200 mm

Placement of equipment

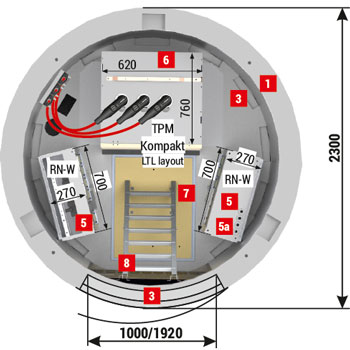

Switchgear structure
Bryła rodzielnic słupowej stacji typu WST - słup ogłoszeniowy

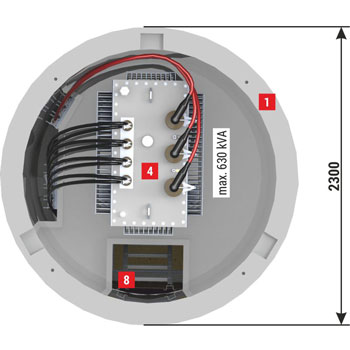

Transformer chamber structure
Bryła komory transformatora słupowej stacji typu WST - słup ogłoszeniowy
1 Walls, 130 mm thick — standard
Fire integrity class REI 120
2 Ventilation grating IP 23D - standard, IP 43 - optional
3 Doors: solid or with ventilation louvres without fire integrity IP 23D - standard, IP 43 - optional
Doors with fire resistance e.g EI 60 or EI 120 - optional
4 Transformer
5 LV switchgear
5a AMI cabinet / Smart Grid / telemetry / auxiliary
6 MV switchgear
7 Cable duct hatch door
8 Hatch / ladder to the transformer chamber

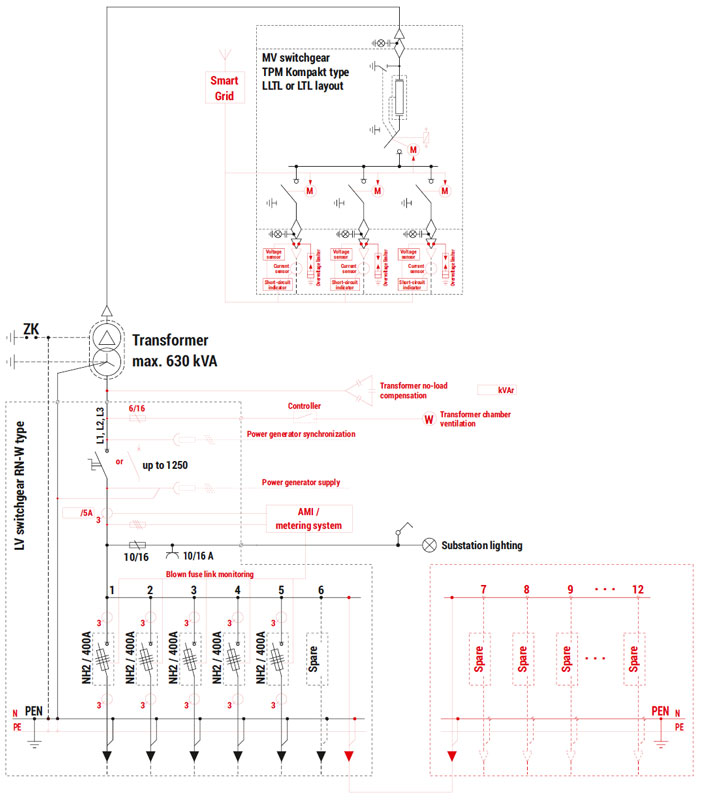

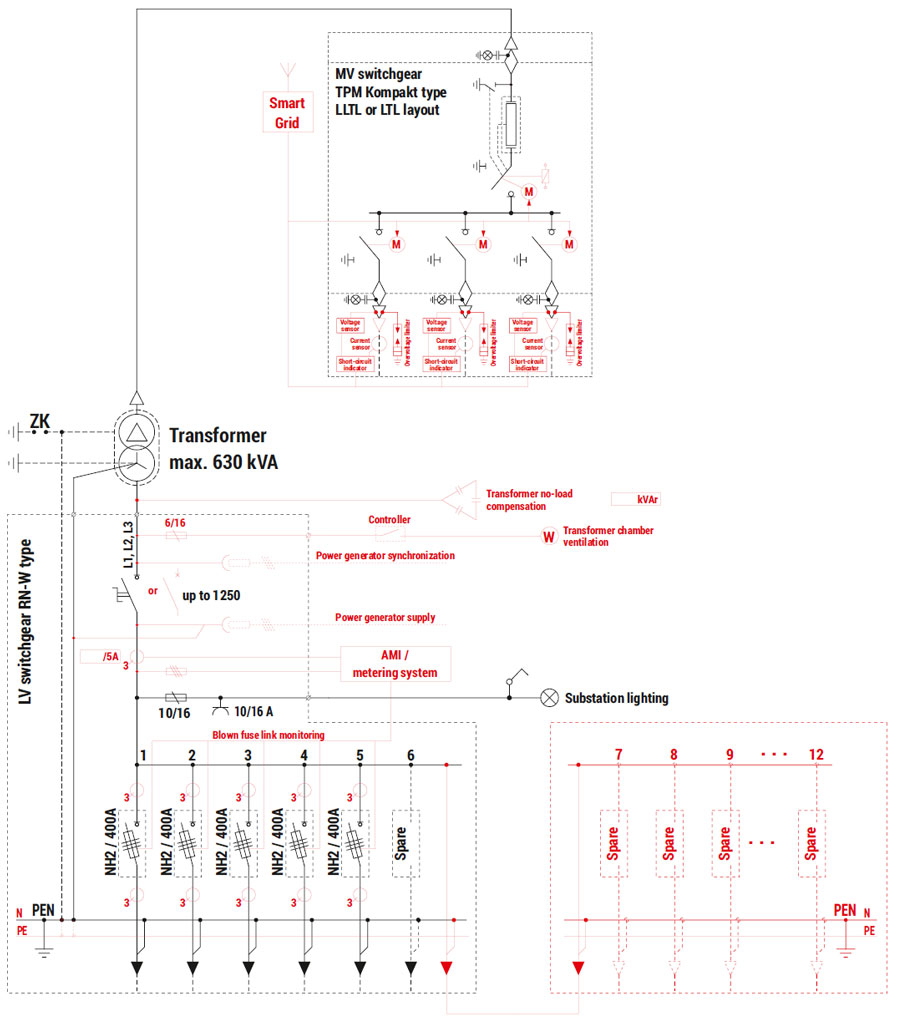

Electrical diagram

Schemat elektryczny stacji typu słup ogłoszeniowy WST

Optional equipment was marked with red on the electrical diagram.

Technical parameters / configuration possibilities

Mass / Area
Foundation 3 600 kg
Switchgear structure 5 200 kg
Transformer structure 5 100 kg
Concrete roof 1 500 kg
Metal roof 350 kg
Usable area 3,46 m2
Technical parameters / configuration possibilities
Transformer* (4) Maximum power / dimension 630 kVA / 950 x 1400 x 1650 [mm]
Internal arc resistance classification IAC-AB-20 kA-1s
Enclosure class 20
Electrical parameters of switchgears MV LV
Rated voltage up to 25 kV up to 0,69 kV
Rated current 630 A up to 1250 A
Rated short-time withstand current up to 25 kA (1s) up to 25 kA (1s)
Rated peak withstand current up to 63 kA up to 55 kA
Switchgear** Type Maximum number of bays
LV (5) RN-W 12 (for TPM Kompakt - LLTL or TPM C - LTL)
MV (6) TPM Kompakt 4 (LLTL)

* Transformer inserted from above, before the roof is attached.

** Detailed selection of switchgears and their equipment is listed in chapters dedicated to individual devices in the catalogue. Example layouts of switchgears and corresponding substation configurations are specified in parentheses. The possibility of installing other types and configurations of switchgears should be arranged every time with the substation manufacturer.

Additional information
