Concrete container transformer stations

Stacje w obudowie betonowej typu MRw-bS

Frequently, much more complicated designs consisting of a large number of MV/LV switching devices, transformers, power generators etc. do not fit even within the largest structures (8160 mm x 3060 mm). The ZPUE S.A. company is one of few on the market which has in its offer a system for connecting typical concrete containers, under the name of “MRw-bS” prepared for individual adaptations, to meet the needs of customers. In order to reduce the investment costs for facilities with a significant demand for installed power, “MRw-bSP” multifloor substations may be used. Their main advantage is concentrating significant transformer unit power over a small area of construction. The catalogue only presents examples of manufactured substations. It is possible to manufacture many other solutions to meet individual needs. Including substations with multiple transformers with a power up to 4000 kVA, or substations with power generators with a power up to 2000 kVA.

Placement of equipment

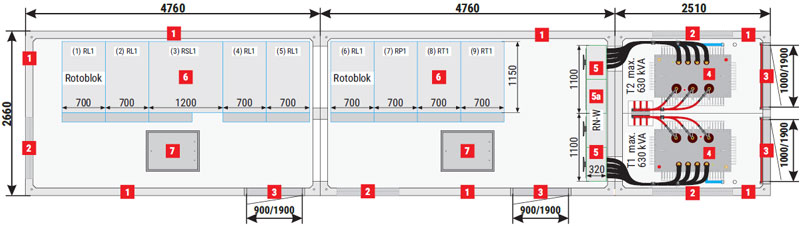

MRw-bS 20/2x630-9
MRw-bS 20/2x630-9

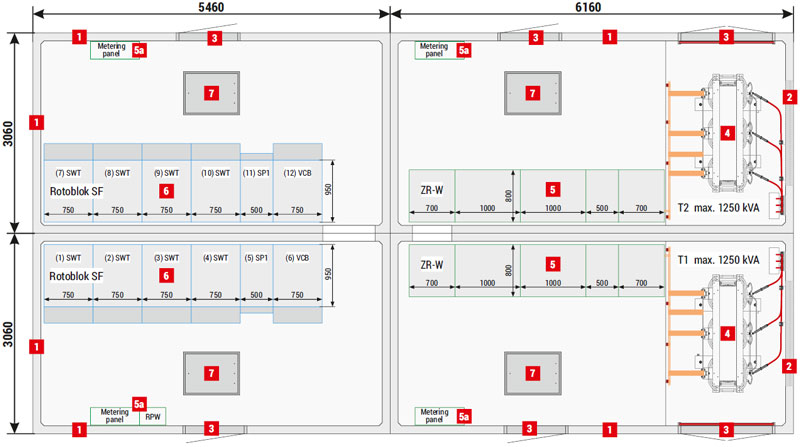

MRw-bS 20/2x1250-12
MRw-bS 20/2x1250-12

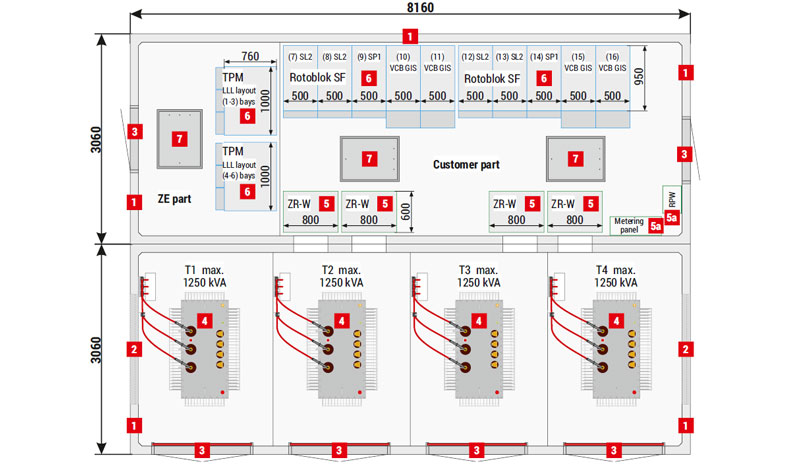

MRw-bS 20/4x1250-16
MRw-bS 20/4x1250-16

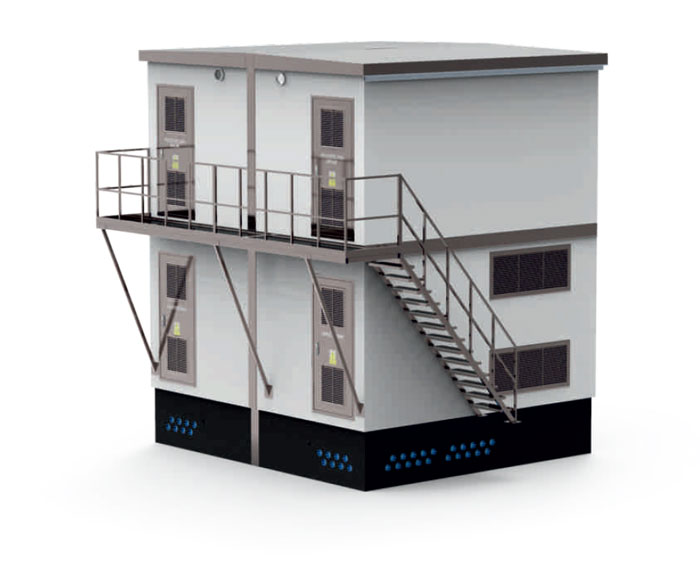

MRw-bSP 20/2x2500-6
MRw-bSP 20/2x2500-6

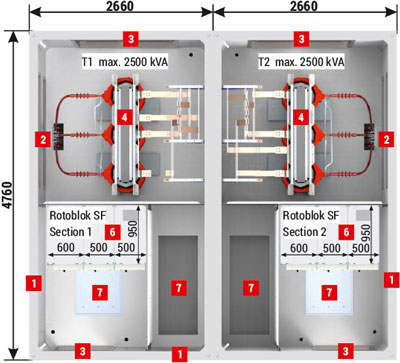

Ground floor
Parter

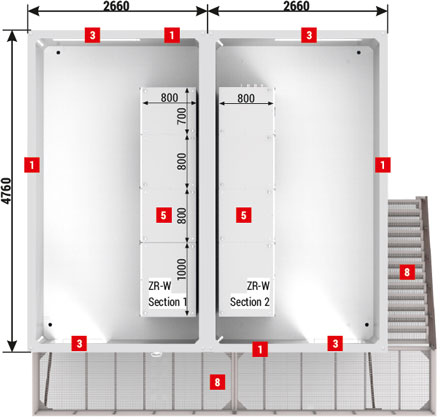

First floor
Piętro
1 Walls, 120 mm thick - standard, 90 mm - optional
Solid walls - fire integrity class REI 120
2 Ventilation grating IP 23D - standard, IP 43 - optional In ventilation louvres mounted in walls with fire integrity class, fire dampers are installed (e.g. EI 60 or EIS 120) - optional
3 Doors: solid or with ventilation louvres, without fire integrity class IP 23D - standard, IP 43 - optional
Doors with fire resistance e.g EI 60 or EI 120 - optional
4 Transformer
5 LV switchgear
5a AMI cabinet / Smart Grid / telemetry / auxiliary
6 MV switchgear
7 Cable duct hatch door / cable duct cover
8 Staircase to the LV switchgear compartment — 1st floor
