Stacja typu MRw-b(pp) 20/630(1000)-4

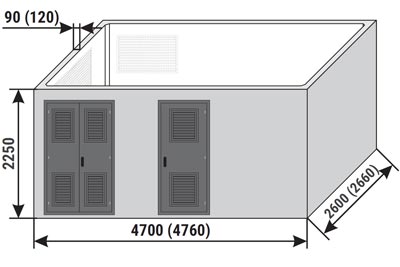

External/internal height of the main structure of the substation:
Standard 2250 mm / 2150 mm
Optional 2650 mm / 2450 mm or 3000 mm / 2800 mm

Placement of equipment

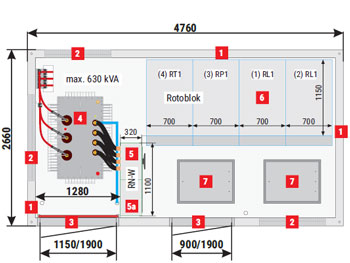

MRw-b(pp) 20/630-4"a”
MRw-b(pp) 20/630-4”a”

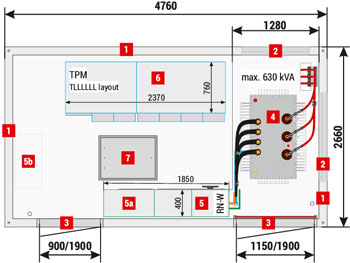

MRw-b(pp) 20/630-4"a”/7
MRw-b(pp) 20/630-4”a”/7

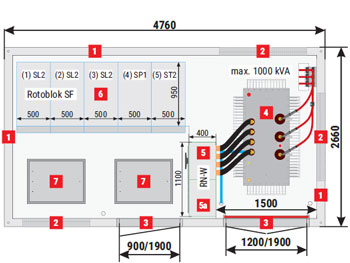

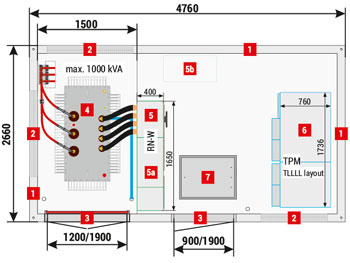

MRw-b(pp) 20/1000-4"a”/5
MRw-b(pp) 20/1000-4”a”/5
MRw-b(pp) 20/1000-4"b”/5
MRw-b(pp) 20/1000-4”b”/5
1 Walls, 120 mm thick - standard, 90 mm - optional
Solid walls - REI 120 fire integrity class
2 Ventilation louvres IP 23D - standard, IP 43 - optional
In ventilation louvres mounted in walls with fire integrity class,
fire dampers are installed: EI 60 or EIS 120 - optional
3 Doors: solid or with ventilation louvres, without fire integrity class
IP 23D - standard, IP 43 - optional
Doors with fire resistance e.g EI 60 or EI 120 - optional
4 Transformer
5 LV switchgear
5a AMI cabinet / Smart Grid / telemetry / auxiliary
5b Capacitor bank
6 MV switchgear
7 Cable duct hatch door

Electrical diagram

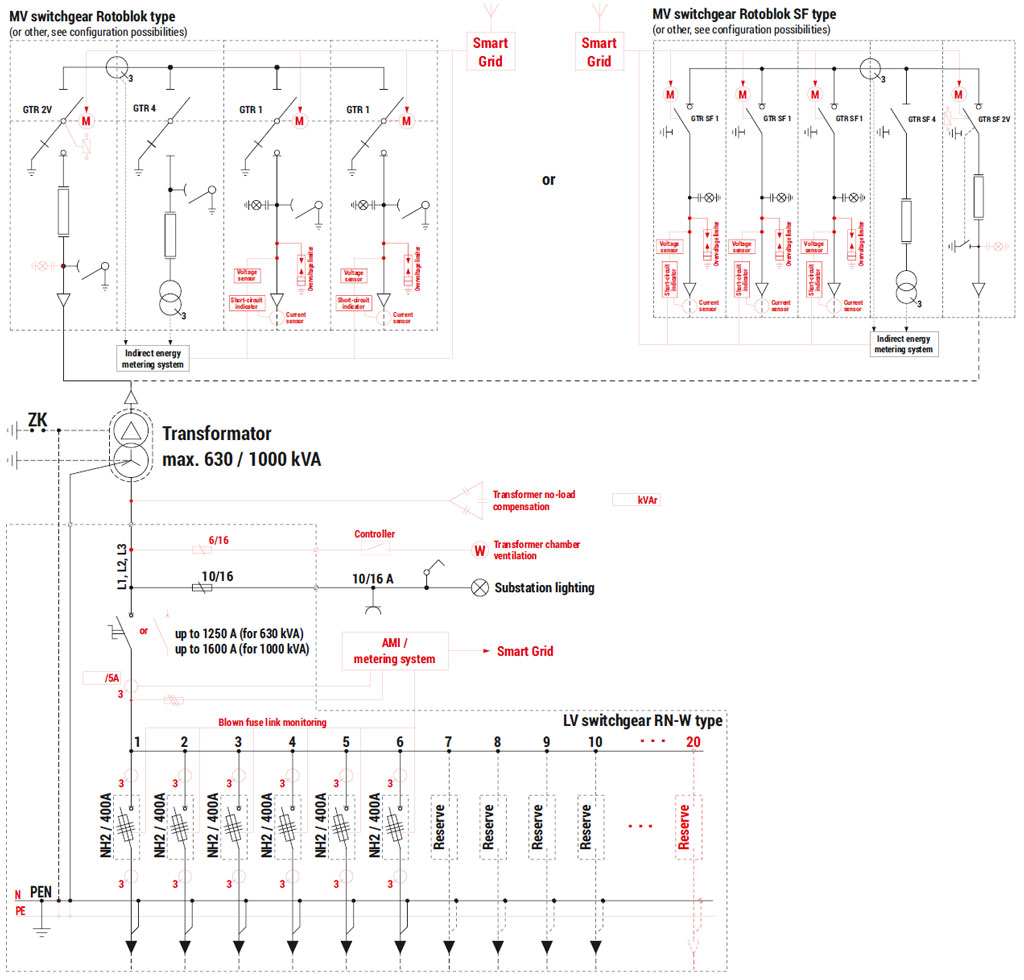

Schemat elektryczny stacji MRw-b(pp) 20/630(1000)-4

Optional equipment was marked with red on the electrical diagram.

Technical parameters / configuration possibilities

Obudowy betonowe MRw-b(pp)
Mass / Area
Foundation 6 500 kg
Main structure 14 000 kg
Concrete roof 4 500 kg
Metal roof 600-800 kg
Usable area 10,93 m2
Technical parameters / configuration possibilities
Transformer (4) Maximum power / dimension 630 kVA / 980* x 2000 x 1850 [mm]
1000 kVA / 1150* x 2000 x 1900 [mm]
Internal arc resistance classification IAC-AB-20 kA-1s
Enclosure class up to 10 (depending on substation configuration)
Electrical parameters of switchgears MV LV
Rated voltage up to 25 kV up to 0,8 kV
Rated current 630 A up to 1600 A
Rated short-time withstand current up to 20 kA (1s) up to 35 kA (1s)
Rated peak withstand current up to 50 kA up to 77 kA
Switchgear** Typ Maximum number of bays
LV (5) RN-W 20 (10 - standard)
MV (6) Rotoblok / Rotoblok 17,5 kV (700 mm) 4 (630 kVA) / — 3 (1000 kVA)
Rotoblok SF (500 mm) 7 (630 kVA) / 6 (1000 kVA)
TPM 7 (TLL+LLLL)

* Maximum width of the transformer installed through the substation doors. Wider transformers may be installed from the top.

** Detailed selection of switchgears and their equipment is listed in chapters dedicated to individual devices in the catalogue. Example layouts of switchgears and corresponding substation configurations are specified in parentheses, if any.
