Stacja typu MRw-b(pp) 20/2x630

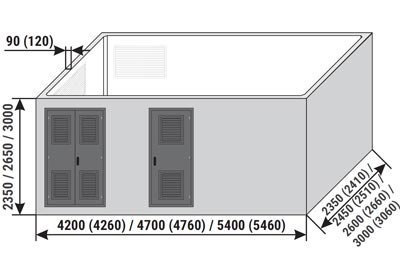

External/internal height of the main structure of the substation:
Standard 2250 mm / 2150 mm
Optional 2650 mm / 2450 mm or 3000 mm / 2800 mm

Placement of equipment

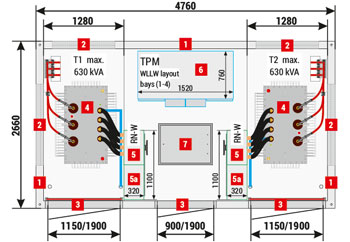

MRw-b(pp) 20/2x630-4"a”
MRw-b(pp) 20/2x630”a”

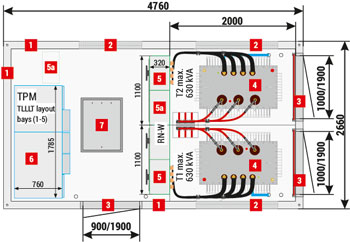

MRw-b(pp) 20/2x630-4"b”/5 variant I
MRw-b 10/2x630-8

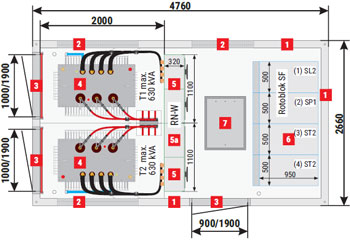

MRw-b(pp) 20/2x630-4"b” variant II
MRw-b(pp) 20/2x630-5
1 Walls, 120 mm thick - standard, 90 mm - optional
Solid walls - REI 120 fire integrity class
2 Ventilation louvres IP 23D - standard, IP 43 - optional
In ventilation louvres mounted in walls with fire integrity class,
fire dampers are installed (e.g. EI 60 or EIS 120) - optional
3 Doors: solid or with ventilation louvres, without fire integrity class
IP 23D - standard, IP 43 - optional
Doors with fire resistance e.g EI 60 or EI 120 - optional
4 Transformer
5 LV switchgear
5a AMI cabinet / Smart Grid / telemetry / auxiliary
5b Capacitor bank
6 MV switchgear
7 Cable duct hatch door

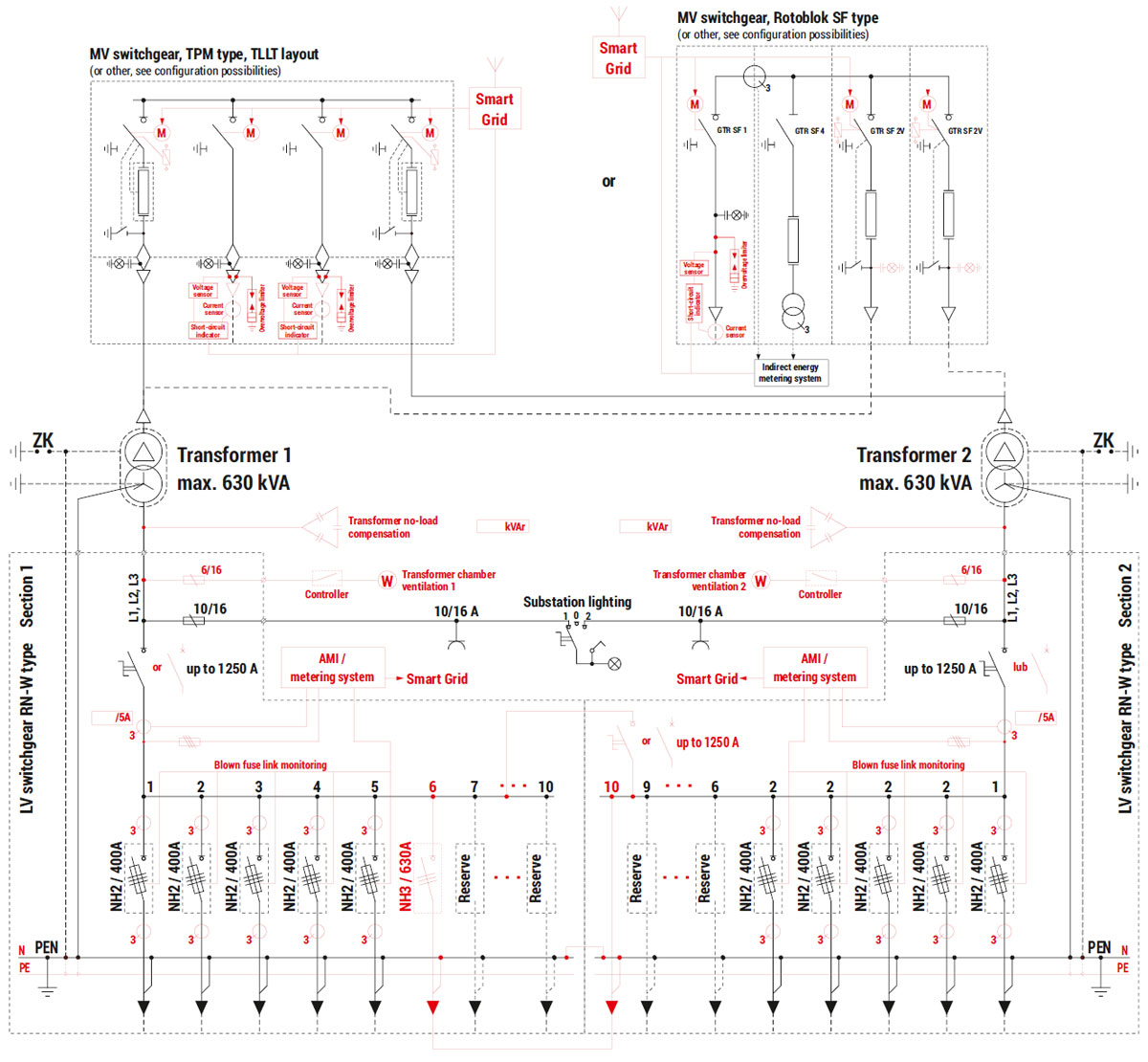

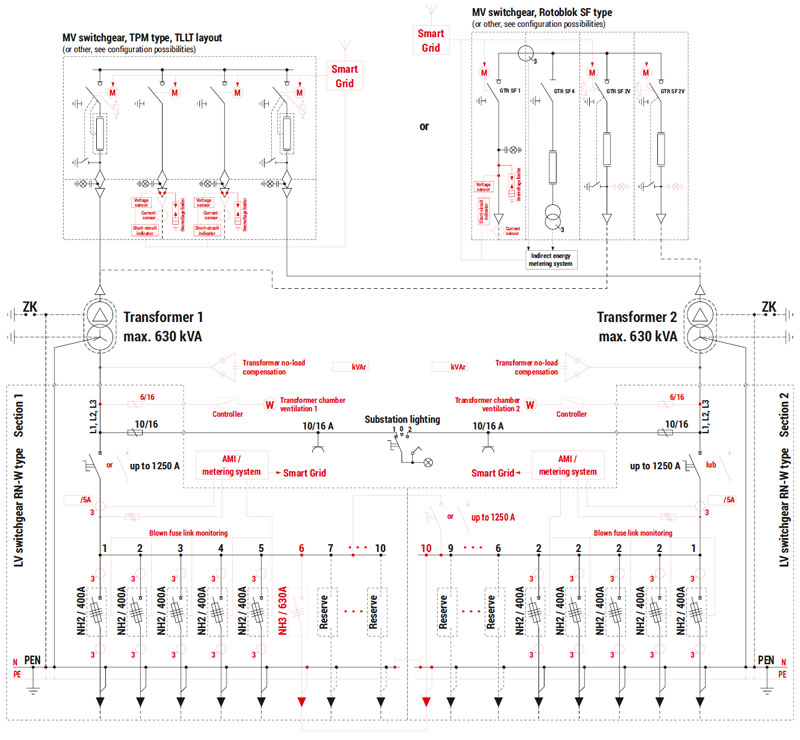

Electrical diagram

Schemat elektryczny stacji MRw-b(pp) 20/630(1000)-4

Optional equipment was marked with red on the electrical diagram.

Technical parameters / configuration possibilities

Obudowy betonowe MRw-b(pp)
Mass / Area
Foundation 6 500 kg
Main structure 14 000 kg
Concrete roof 4 500 kg
Metal roof 600-800 kg
Usable area 10,93 m2
Technical parameters / configuration possibilities
Transformer (4) Maximum power / dimension 2x630 kVA / 980* x 1750 x 1850 [mm]
Internal arc resistance classification IAC-AB-16 kA-1s
Enclosure class up to 10 (depending on substation configuration)
Electrical parameters of switchgears MV LV
Rated voltage up to 25 kV up to 0,69 kV
Rated current 630 A up to 1250 A
Rated short-time withstand current up to 20 kA (1s) up to 25 kA (1s)
Rated peak withstand current up to 50 kA up to 52,5 kA
Switchgear** Typ Maximum number of bays
LV (5) RN-W 2 x 10
MV (6) Rotoblok SF (500 mm / 375 mm) 4 / 5 (only for „b”)
TPM 4 (WLLW „a”) / 6 (TLL+LLT - „b”)

* Maximum width of the transformer installed through the substation doors. Wider transformers may be installed from the top.

** Detailed selection of switchgears and their equipment is listed in chapters dedicated to individual devices in the catalogue. Example layouts of switchgears and corresponding substation configurations are specified in parentheses, if any.

Additional information
