MRw “PONTOON” type substation dedicated for open-pit mines

Station dedicated to emergency power supply with the possibility of power supply from an overhead or cable line.
Stacja typu MRw „ponton” dedykowana dla kopalni odkrywkowych

Station dedicated to emergency power supply with the possibility of power supply from an overhead or cable line.

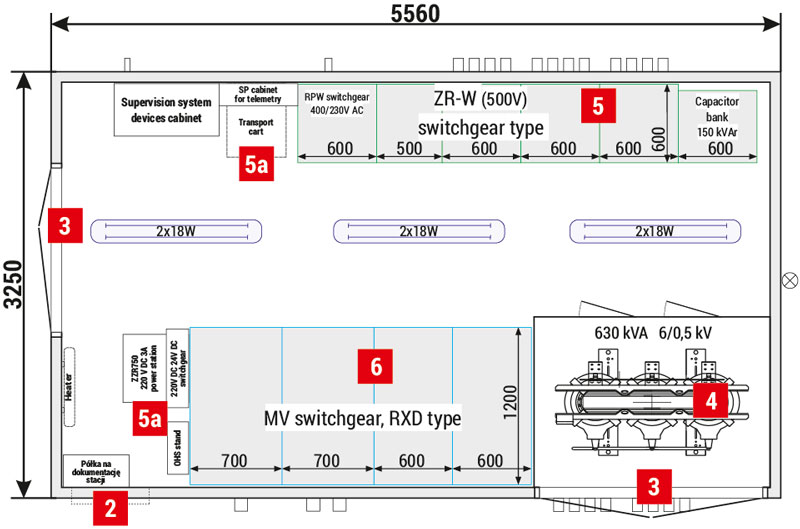

Placement of equipment

MRw 20/630-1
Stacja typu MRw „ponton” dedykowana dla kopalni odkrywkowych

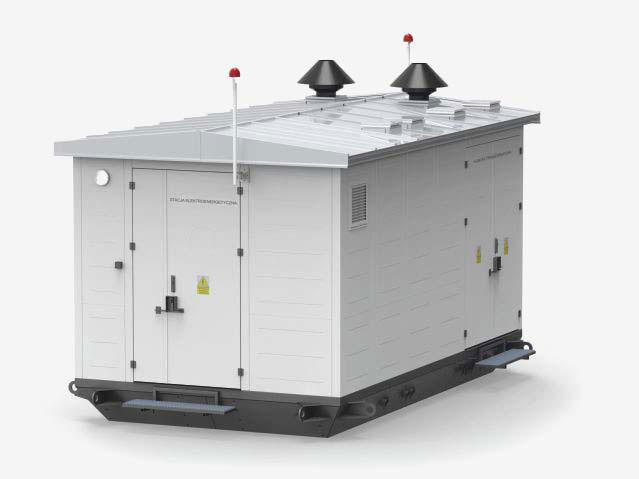

1 Substation placement part
2 Ventilation louvres IP 23D - standard, IP 43 or IP 55 - optional
3 Doors: solid or with ventilation louvres, IP 23D - standard, IP 43 or IP 55 - optional
4 Transformer
5 LV switchgear
5a AMI cabinet / telemetry / auxiliary
6 MV switchgear

Note!

The catalogue presents example substation configurations.

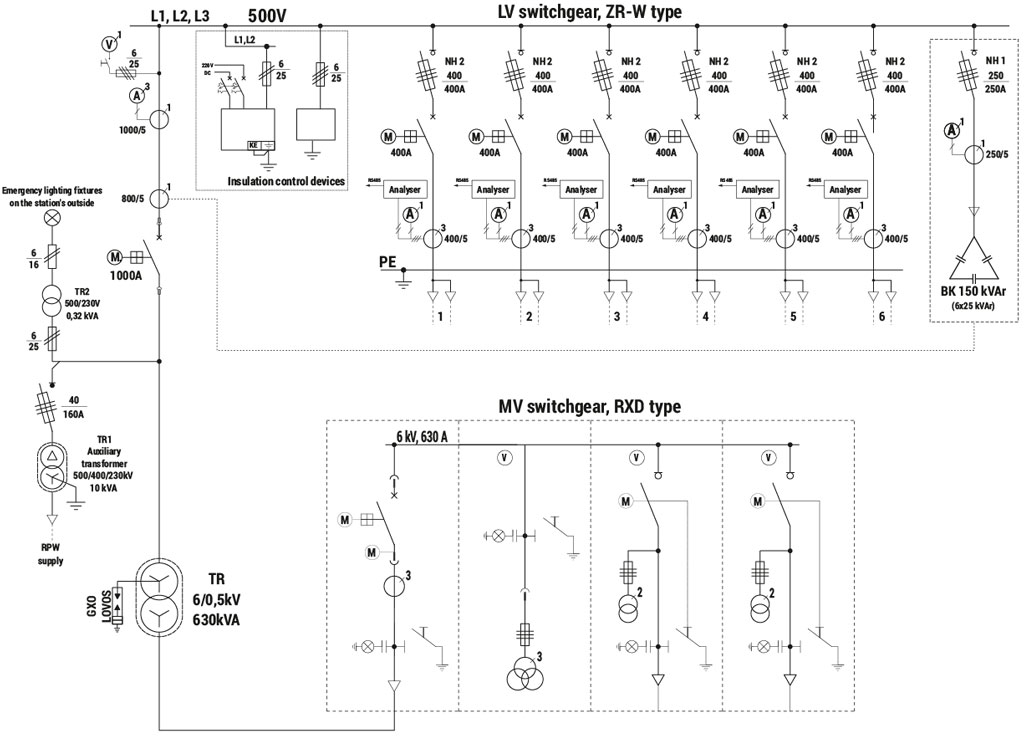

Electrical diagram

Stacja typu MRw „ponton” dedykowana dla kopalni odkrywkowych - schemat elektryczny
