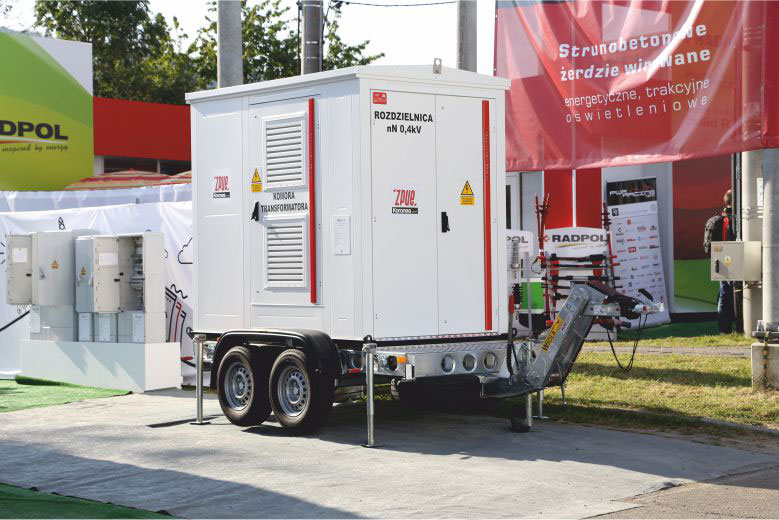

STACJA TYPU MRw-m. Stacja mobilna na podwoziu jezdnym

Failures or overhauls of transmission grid or transformer substation, the need for temporary supply to the customers and for rapid supply of power, without the option of connection to an MV grid, with the use of a power generator unit are a few examples of factors which resulted in the design of a light substation in a metal enclosure, on a transport chassis with a gross vehicle weight rating GVWR of 3.5T, which can be towed by a truck, for example. The substation enclosure is formed by a light, spatial, self-supporting metal structure made of structural steel connected by welding and bolting. The entire structure is protected against corrosion and powder painted.

Stations use state of the art TPM type MV switchgear in gas insulation and RN-W type LV switchgear with the possibility of connecting a power generator unit, operated from the outside, after previously opening the doors to an appropriate compartment. These switchgear are commonly used in the commercial power sector as elements which provide power supply and protection to transformer units.

The station may house a transformer with a maximum power up to 400 kVA (with gravity ventilation), installed after roof removal. The transformer is permanently installed in the substation, which enables it to be transported without the need to remove the transformer.

The presented solution should be considered an example. ZPUE S.A. has in its offer a very wide range of transformer substation and MV and LV switchgear solutions, which enable the performance of very advanced control and protection functions, including automation logic which enables uninterrupted restoration or reconfiguration of the power supply. These solutions are selected individually and may differ from the one presented in the publication.

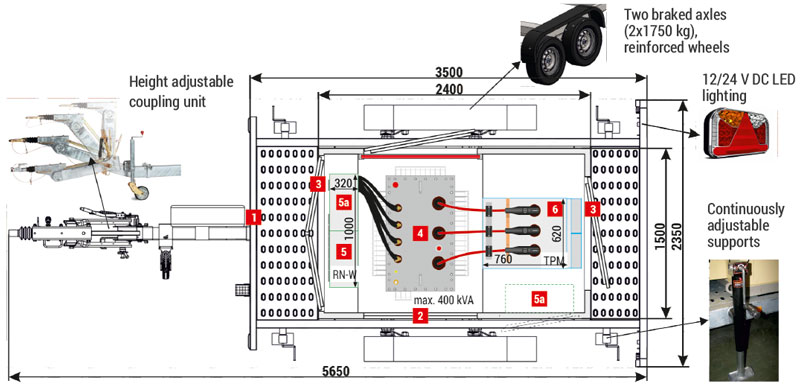

Placement of equipment

MRw-m 20/400-3
STACJA TYPU MRw-m. Stacja mobilna na podwoziu jezdnym typu MRw-m 20/400-3
1 Transport chassis - trailer
2 Ventilation grating IP 23D - standard, IP 43 - optional
3 Doors: solid or with ventilation louvres IP 23D - standard, or IP 43 - option
4 Transformer
5 LV switchgear
5a AMI cabinet / Smart Grid / telemetry / auxiliary
6 MV switchgear

Note!

The catalogue presents example substation configurations.

Electrical diagram

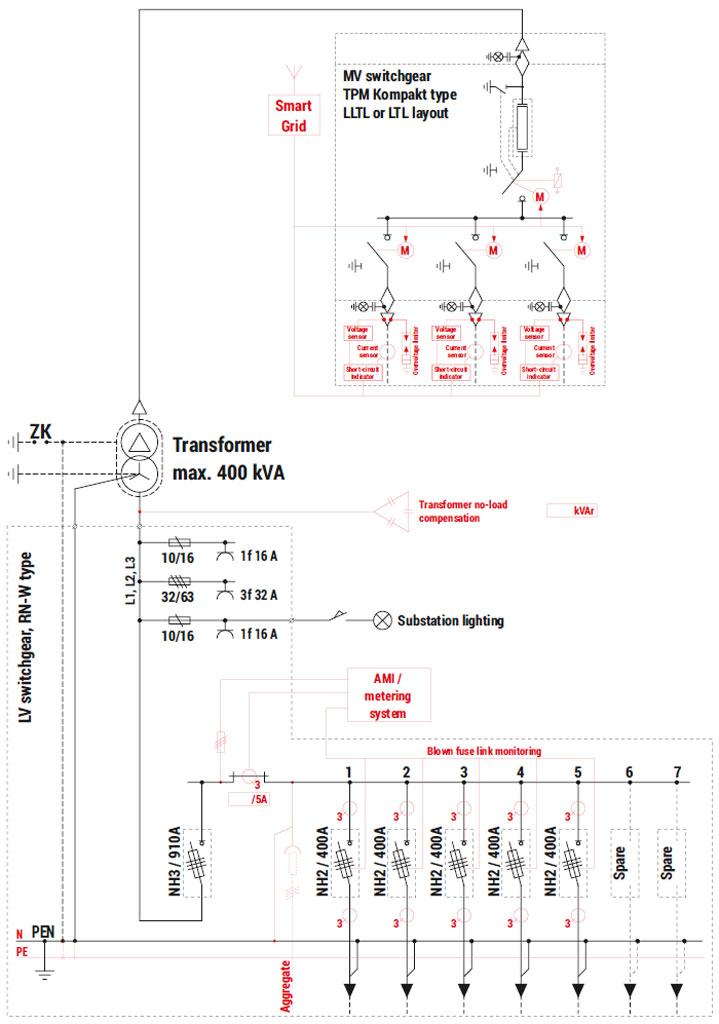

STACJA TYPU MRw-m. Stacja mobilna na podwoziu jezdnym - schemat elektryczny

Technical parameters / configuration possibilities

Mass / Area
Trailer do 800 kg
Transformer substati 2 600 kg
Unit's GVWR 3 500 kg
Usable area 3,22 m2
Technical parameters / configuration possibilities
Transformer* (4) Maximum power / dimension 400 kVA / 850 x 1200 x 1450 [mm]
Transformer (4) Maximum mass 1300 kg (because of DMC 3,5t set)
Internal arc resistance classification IAC-AB-16 kA-1s
Enclosure class 20
Electrical parameters of switchgears MV LV
Rated voltage up to 25 kV up to 0,69 kV
Rated current 630 A up to 630 A
Rated short-time withstand current up to 20 kA (1s) up to 20 kA (1s)
Rated peak withstand current up to 50 kA up to 50 kA
Switchgear** Type Maximum number of bays
LV (5) RN-W 7
MV (6) TPM Kompakt 4 (LLTL)

* Transformer inserted from above, before the roof is attached.

** Detailed selection of switchgears and their equipment is listed in chapters dedicated to individual devices in the catalogue.
Example layouts of switchgears and corresponding substation configurations are specified in parentheses
