Mzb2 "b" 20/630

Technical parameters, electrical diagram, downloads, a description of the type of container transformer station Mzb2 "b" 20/630 production ZPUE S.A.
Stacja typu Mzb2”b” 20/630

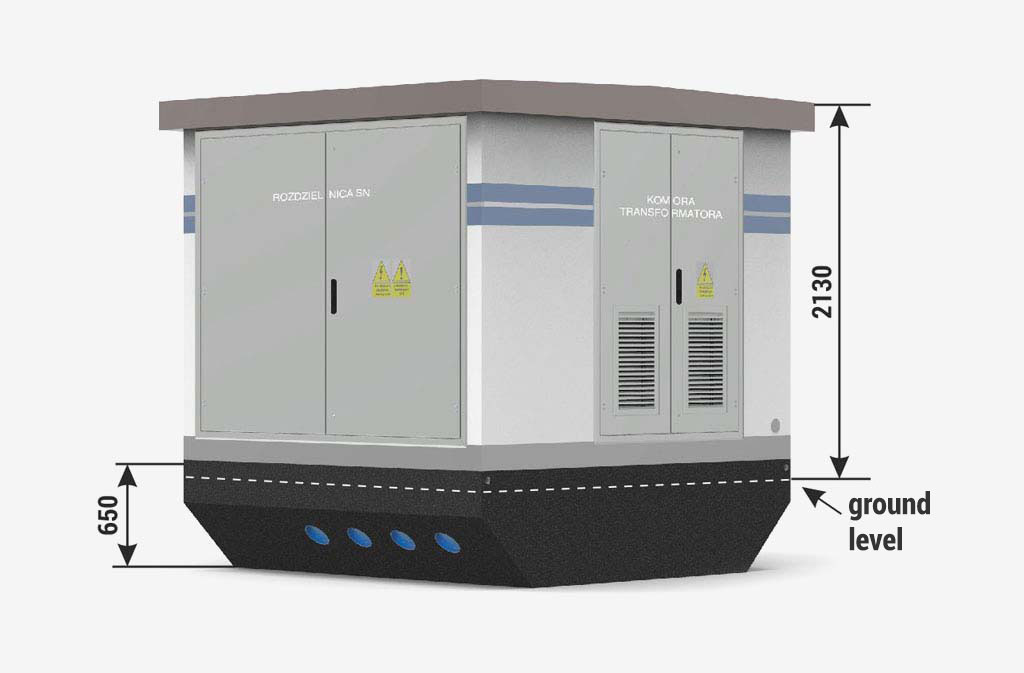

Height of the main structure of the substation:
Standard 2650 mm

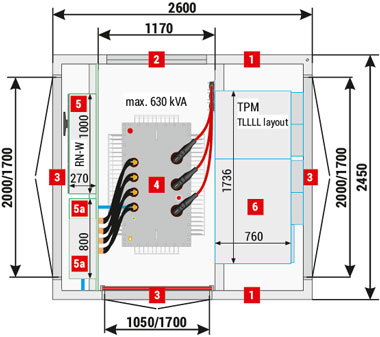

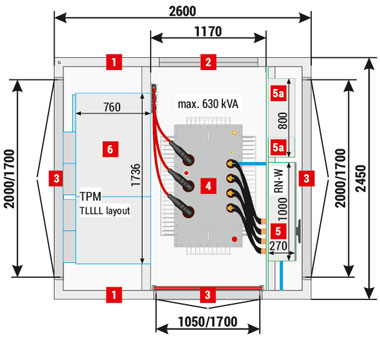

Placement of equipment

Mzb2"b” 20/630-5"a”
Mzb2”b” 20/630-5”a”
Mzb2"b” 20/630-5"b”
Mzb2”b” 20/630-5”b”
1 Walls, 90 mm thick - standard
2 Ventilation louvres IP 23D - standard, IP 43 - optional
3 Doors: solid or with ventilation louvres, IP 23D - standard, IP 43 - optional
4 Transformer
5 LV switchgear
5a AMI cabinet / Smart Grid / telemetry / auxiliary
6 MV switchgear

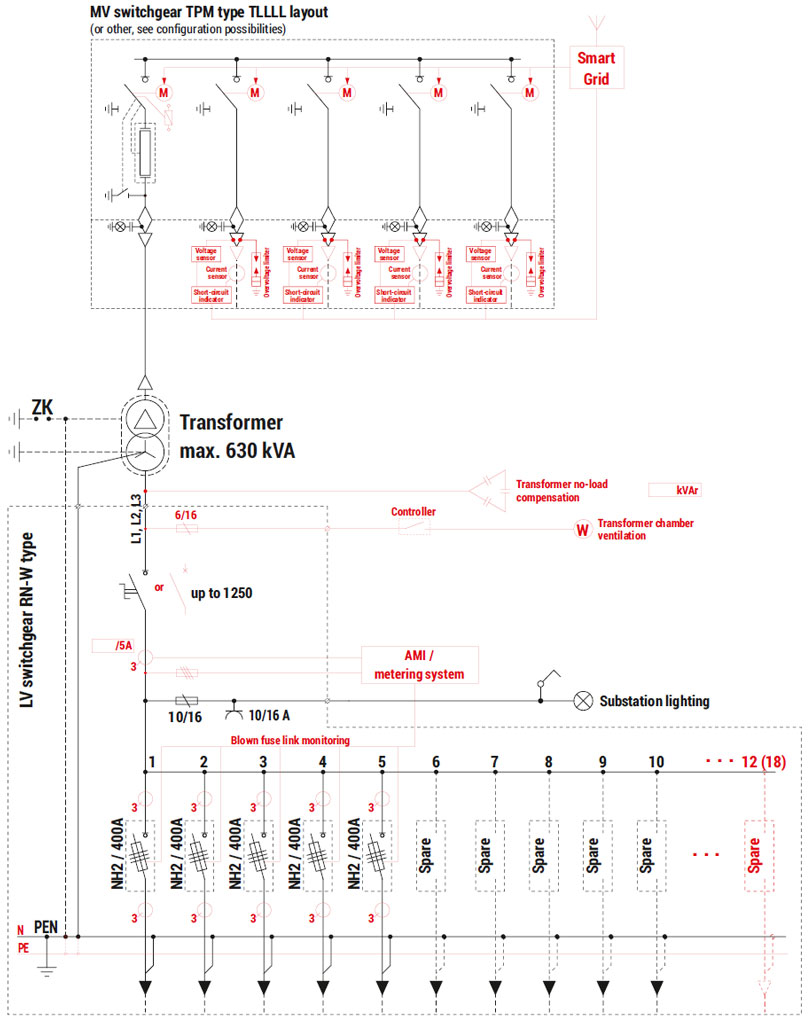

Electrical diagram

Schemat elektryczny stacji Stacja typu Mzb2”b” 20/630

Optional equipment was marked with red on the electrical diagram.

Technical parameters / configuration possibilities

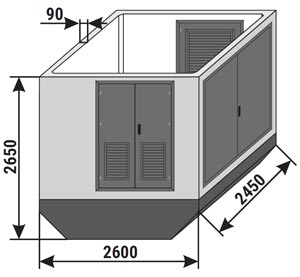

Obudowy betonowe Mzb2
Mass / area
Main structure 8000 kg
Concrete roof 2 450 kg
Metal roof 300 - 500 kg
Usable area 5,49 m2
Technical parameters / configuration possibilities
Transformer* (4) Maximum power / dimension 630 kVA / 980 x 1550 x 1850 [mm]
Internal arc resistance classification IAC-AB-20 kA-1s
Enclosure class 10
Electrical parameters of switchgears MV LV
Rated voltage up to 25 kV up to 0,69 kV
Rated current 630 A up to 1250 A
Rated short-time withstand current up to 25 kA (1s) up to 25 kA (1s)
Rated peak withstand current up to 63 kA up to 55 kA
Switchgear** Type Maximum number of bays
LV (5) RN-W 12 (18 if Smart Grid with AMI)
MV (6) TPM 5 (TLLLL or WLLLL)

* Transformer inserted from above, before the roof is attached.

** Detailed selection of switchgears and their equipment is listed in chapters dedicated to individual devices in the catalogue. Example layouts of switchgears and corresponding substation configurations are specified in parentheses. The possibility of installing other types and configurations of switchgears should be arranged every time with the substation manufacturer.
