Thermosetting cubicles

In response to customers needs in the area of delivery of high quality cable cubicles made of thermoset fibre glass reinforced polyester SMC, the ZPUE S.A. company manufactures the best quality SKRD and SKRF type.

Technical description

obudowy

In response to customers’ needs in the area of delivery of high quality cable cubicles made of thermoset fibre glass reinforced polyester SMC, the ZPUE S.A. company manufactures the best quality SKRD and SKRF type thermosetting cubicles thanks to a modern machine park and excellent human capital. Taking careful note of the customers’ opinion of already existing technical solutions and suggestions for their potential modifications, we have manufactured a range of cable-distribution cubicles “SKR”, adapted to the national power distribution companies’ requirements. Our company, as a leading manufacturer, constantly develops production technology, which results in the highest quality products. All products offered have the necessary certificates.

Production technology

A very important element, which guarantees the highest construction quality and the long life of the cubicle is its material. ZPUE S.A. uses its long-standing contacts with industrial chemical manufacturers in Europe, and the knowledge and experience of people who deal with SMC material treatment technology. The materials used in the cubicle production process consist of a range of components fulfilling the requirements of mechanical, thermal and UV resistance, which guarantees the long life of our cubicles.

Field of application

Thermosetting cubicles, thanks to their universality, can be widely used in the energy and telecommunication industry. They are made of isolating and self-extinguishing material and flame retardant composite: (polyester +fibre glass – SMC) and they are characterized by high weather conditions resistance (UV). Its modular construction allows any combination of the cubicle with the foundation, extension or cable pocket, and for connecting cubicles in a horizontal or vertical arrangement. Various dimensions allow selecting the cubicle according to the customer’s needs or equipment used. The specially developed internal construction of the cubicle with additional elements integration allows quick and convenient equipment and apparatus installation inside the cubicle. The cubicles are powder-painted in the standard colour: RAL 7035. Upon customer’s request, they can be covered with a special coating of plastic in any colour from the RAL palette.

Characteristics and advantages of “SKR” cubicles

Made of the highest quality, self-extinguishing SMC material. Excellent durability and high aesthetic finish for many years to come. UV and changing weather conditions resistance. Very high mechanical strength. Ventilation sufficient to drain excess humidity. Modular construction allows replacement of faulty elements and vertical or horizontal cubicle separation. Possibility to configure any box or to develop the existing one. Possibility to equip with slat switch disconnectors (320 mm type allows parking ). Three-point door lock made of plastic or metal. Possibility of quick and easy door and cover removal from the foundation without using tools makes maintenance easy for technicians. The external surface of the cubicle is ribbed which improves the aesthetics and prevents posting.

Basic technical data

Basic technical data
Isolation / protection class II
Protection degree IP44 / IP54
Impact protection degree IK 10
Flammability class HB 40 / V0
UV resistance YES
Heat resistance 960oC
Colour RAL 7035
Operation conditions -30oC ÷ + 55oC
Rated voltage 230V / 400V / 500V
Isolation rated voltage 500V / 690V
Tracking resistance CTI 600
Rated current up to 630A
Dimensional tolerance ± 3mm

Compliance with standards

SKRD and SKRF type isolation cubicles, together with their accessories, are compliant to the provisions of the directives WE: 2006/95/WE – Directive of the harmonization, 93/68/EWG Electrical equipment designed for use within certain voltage limits.

The products presented in this catalogue have been examined by IEL in Warsaw and BBJ-SEP in Lublin, and they are compliant to the following norms:

  • PN-EN 62208:2011E – “Empty enclosures of low-voltage switchgear and control gear assemblies. General requirements”,
  • PN-EN 60529:2003P/A2:2014 – “Degrees of protection provided by enclosures (IP code)”,
  • PN-EN 50102:2001 – “Degrees of protection against mechanical damages provided by the enclosures of the electrical devices (IK code)”,
  • PN-EN 60695-2-10:2013-12E – “Fire hazard testing. Part 2-10: Glowing/ hot –wire based test methods. Glow wire apparatus and common test procedure”,
  • PN-EN 60695-2-11:2005P – “Fire hazard testing. Part 2-11: Glowing/ hot –wire based test methods. Glow-wire flammability test method for end-products”,
  • PN-EN 60112:2003/A1:2010 – “Method for determining the comparative and the proof tracking indices of the solid electro-insulating materials”,
  • PN-EN ISO 4892-2:2009 – “Plastics - Methods of exposure to laboratory sources of light”.
    Part 2: Xenon arc lamps”.

Based on the certificates and approvals gained, our products were assigned B and CE signs, which confirms the quality of our goods, guarantees safe usage, repeatability of parameters and customer satisfaction.

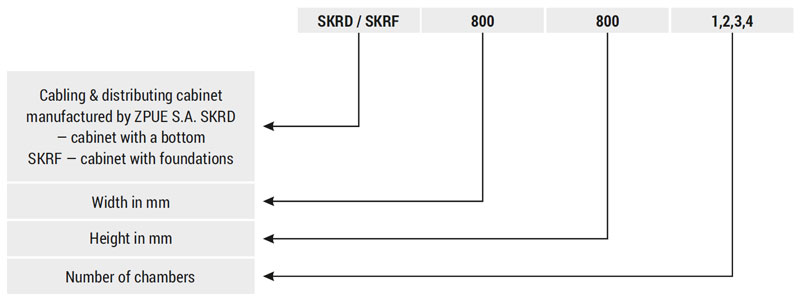

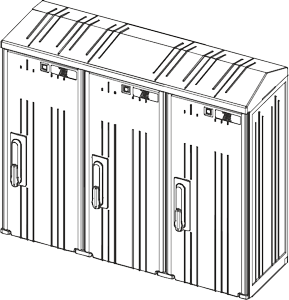

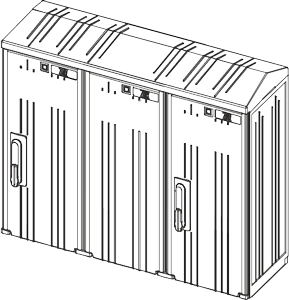

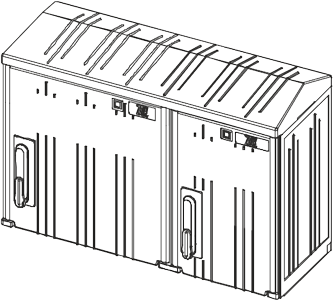

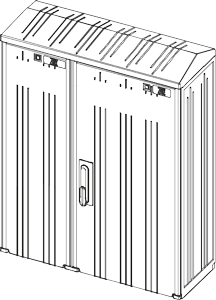

SKRD cubicle range

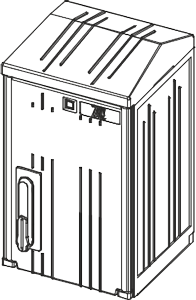

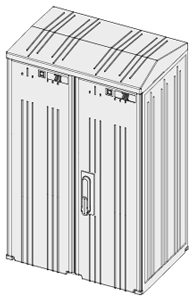

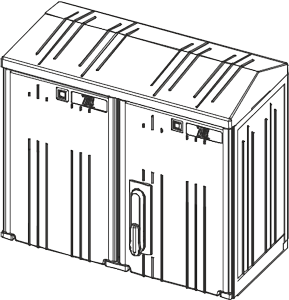

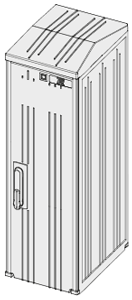

SKRD 260/400/1

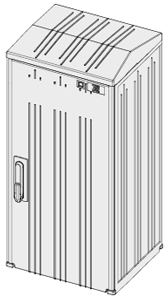

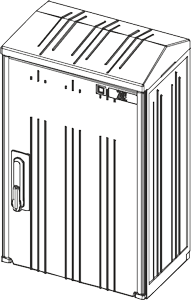

skrd 01

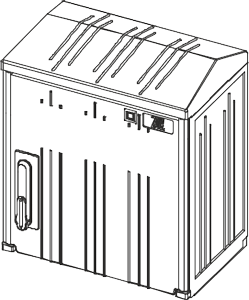

SKRD 400/400/1
skrd 02
SKRD 520/400/1
skrd 03

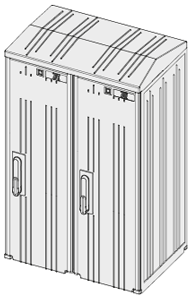

SKRD 520/400/2

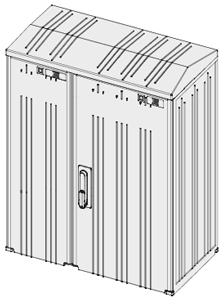

skrd 04

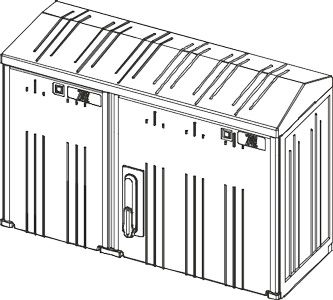

SKRD 660/400/1
skrd 05
SKRD 660/400/1

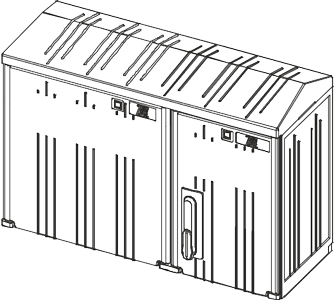

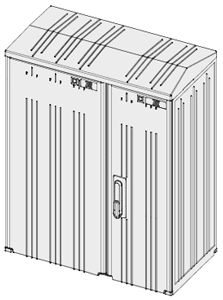

skrd 06

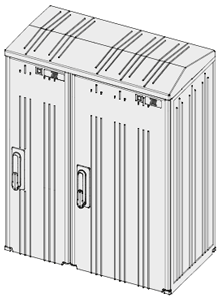

SKRD 660/400/2
skrd 07

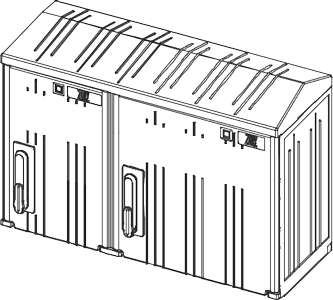

SKRD 660/400/2

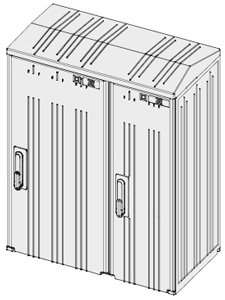

skrd 08

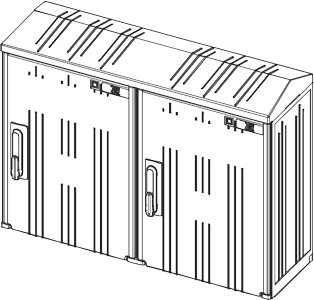

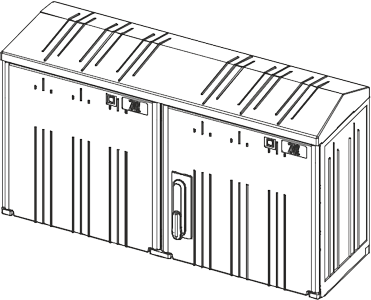

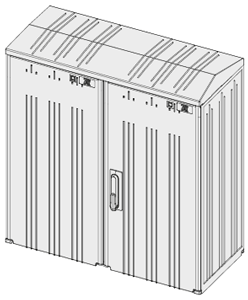

SKRD 800/400/1
skrd 09

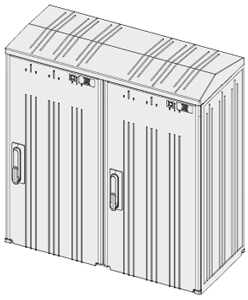

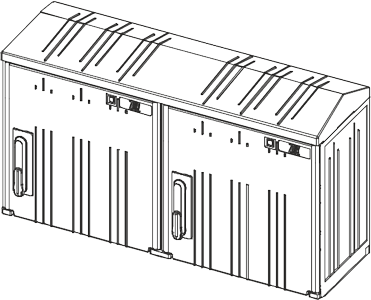

SKRD 800/400/2
skrd 10
SKRD 3x26/40
skrd 11

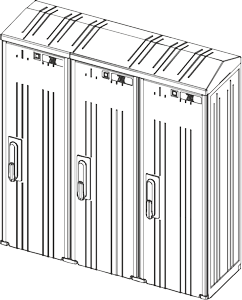

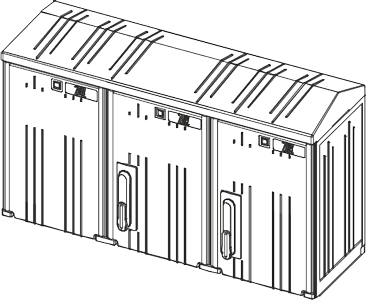

SKRD 52+26/40
skrd 12
SKRD 26+52/40
skrd 13

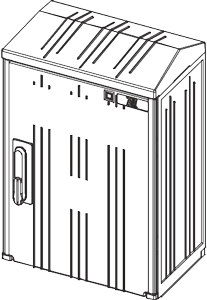

SKRD 400/500/1
skrd 14
SKRD 800/500/2
skrd 15
SKRD 260/600/1

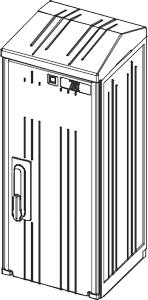

skrd 16
SKRD 400/600/1
skrd 17
SKRD 520/600/1
skrd 18

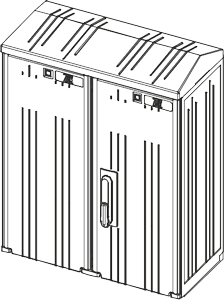

SKRD 520/600/2
skrd 19

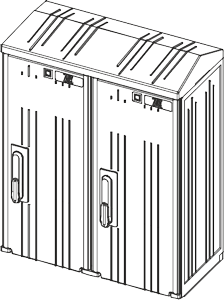

SKRD 660/600/1

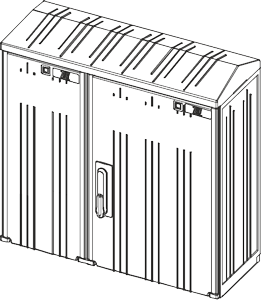

skrd 20

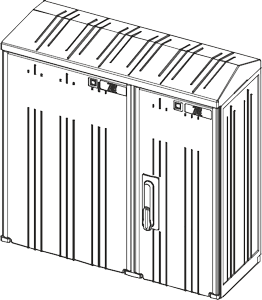

SKRD 660/600/1
skrd 21

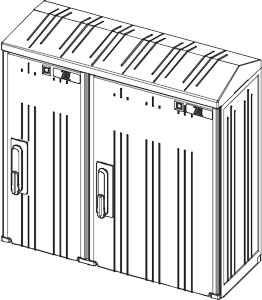

SKRD 660/600/2
skrd 22

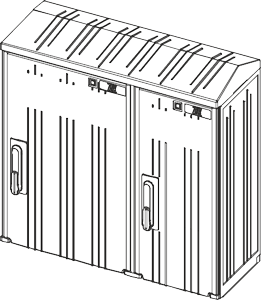

SKRD 660/600/2
skrd 23

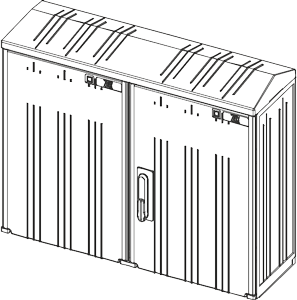

SKRD 800/600/1
skrd 24
SKRD 800/600/2
skrd 25

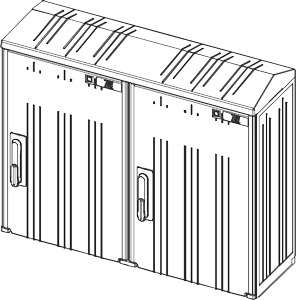

SKRD 3x26/60
skrd 26

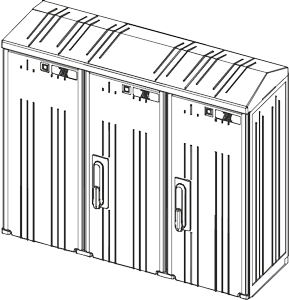

SKRD 52+26/60
skrd 27
SKRD 26+52/60
skrd 28
SKRD 260/800/1

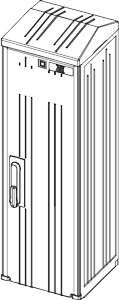

skrd 29
SKRD 260/800/2
skrd 30

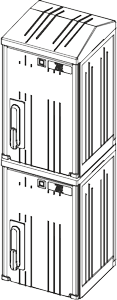

SKRD 400/800/1
skrd 31
SKRD 400/800/2

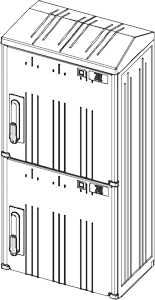

skrd 32

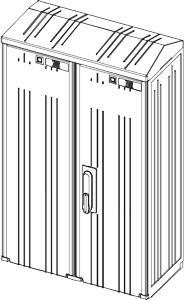

SKRD 520/800/1
skrd 33
SKRD 520/800/2
skrd 34

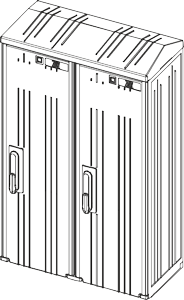

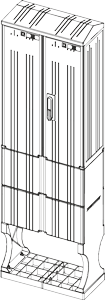

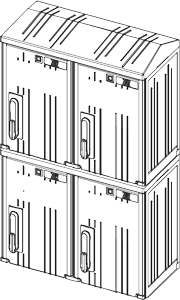

SKRD 520/800/4
skrd 35
SKRD 660/800/1
skrd 36
SKRD 660/800/1
skrd 37

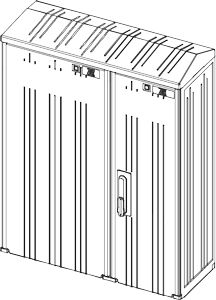

SKRD 660/800/2
skrd 38

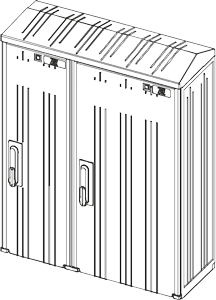

SKRD 660/800/2
skrd 39
SKRD 800/800/1
skrd 40

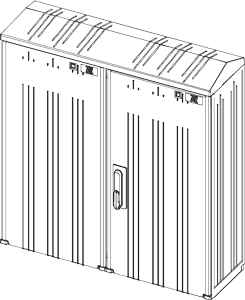

SKRD 800/800/2

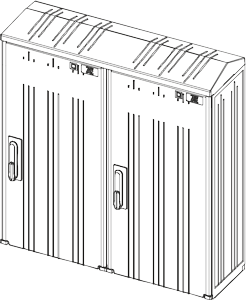

skrd 41
SKRD 800/800/3
skrd 42

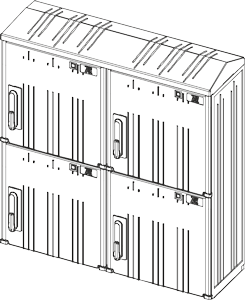

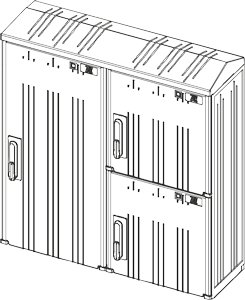

SKRD 800/800/4
skrd 43
SKRD 3x26/80
skrd 44

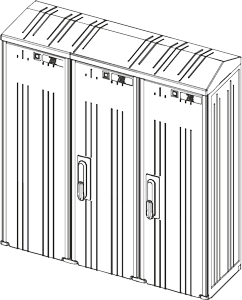

SKRD 52+26/80
skrd 45
SKRD 26+52/80

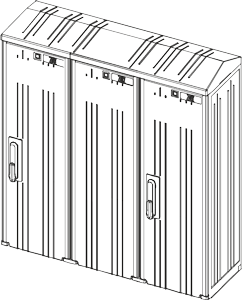

skrd 46

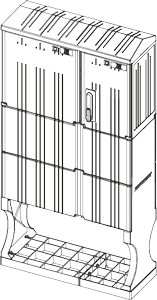

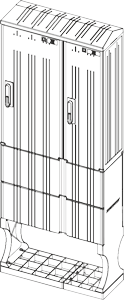

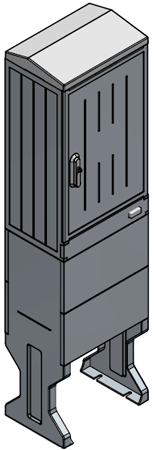

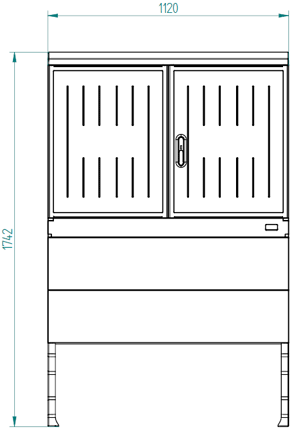

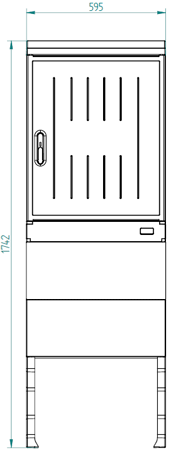

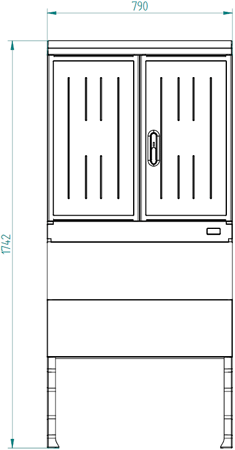

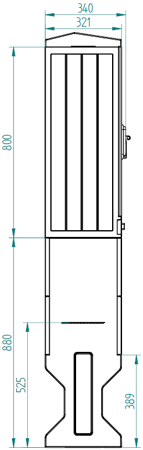

SKRF cubicle range

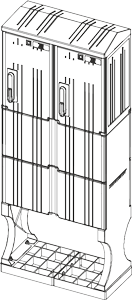

SKRF 260/400/1

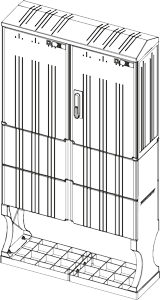

skrf 01
SKRF 400/400/1

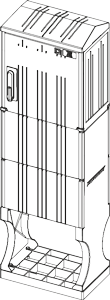

skrf 02

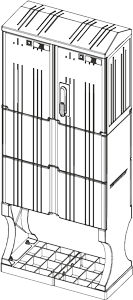

SKRF 520/400/1
skrf 03
SKRF 520/400/2
skrf 04

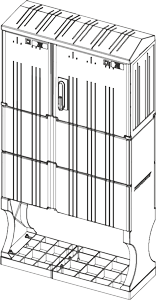

SKRF 600/400/1
skrf 05
SKRF 600/400/1
skrf 06

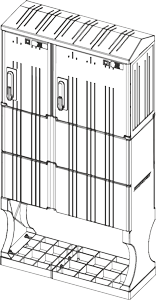

SKRF 600/400/2
skrf 07
SKRF 600/400/2
skrf 08

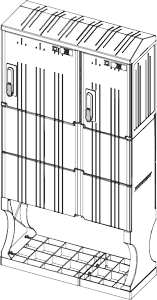

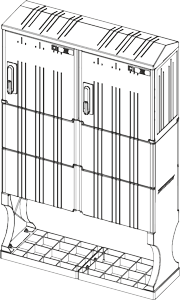

SKRF 800/400/2
skrf 09
SKRF 800/400/2
skrf 10

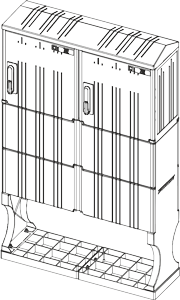

SKRF 800/400/1
skrf 11
SKRF 3x26/40
skrf 12

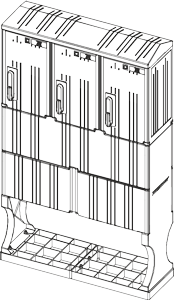

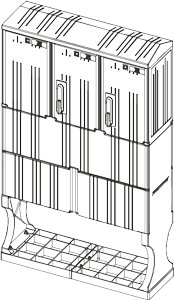

SKRF 52+26/40

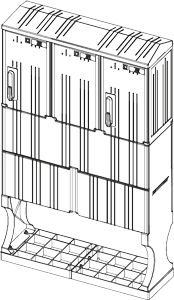

skrf 13
SKRF 26+52/40
skrf 14
SKRF 400/500/1
skrf 15

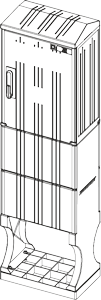

SKRF 800/500/2
skrf 16

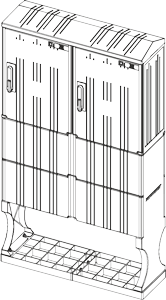

SKRF 260/600/1
skrf 17
SKRF 400/600/1
skrf 18
SKRF 520/600/1
skrf 19

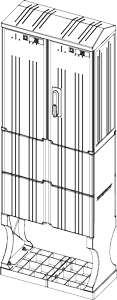

SKRF 520/600/2

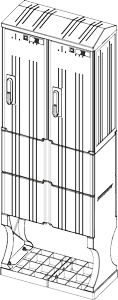

skrf 20

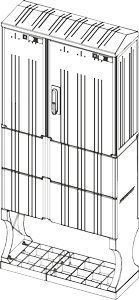

SKRF 660/600/1
skrf 21
SKRF 660/600/1
skrf 22

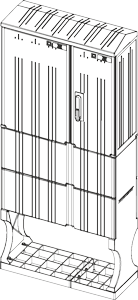

SKRF 660/600/2
skrf 23

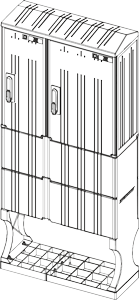

SKRF 660/600/2
skrf 24
SKRF 800/600/1
skrf 25

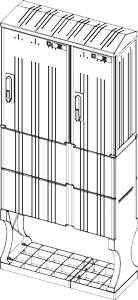

SKRF 800/600/2
skrf 26

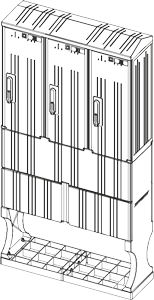

SKRF 3x26/60
skrf 27
SKRF 52+26/60

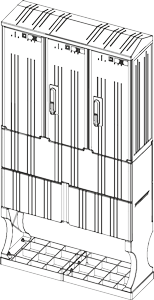

skrf 28
SKRF 26+52/60
skrf 29

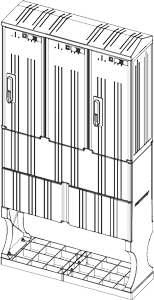

SKRF 260/800/1
skrf 30
SKRF 260/800/2
skrf 31
SKRF 400/800/1
skrf 32
SKRF 400/800/2
skrf 33
SKRF 520/800/1
skrf 34
SKRF 520/800/2
skrf 35

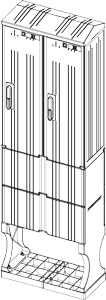

SKRF 520/800/4
skrf 36

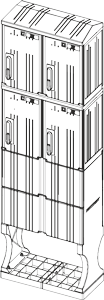

SKRF 660/800/1
skrf 37

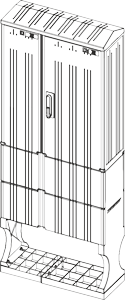

SKRF 660/800/1
skrf 38

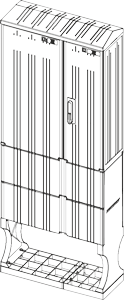

SKRF 660/800/2

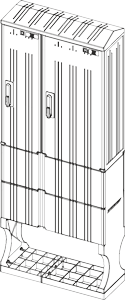

skrf 39
SKRF 660/800/2
skrf 40
SKRF 800/800/1
skrf 41

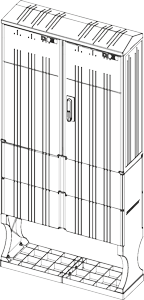

SKRF 800/800/2
skrf 42

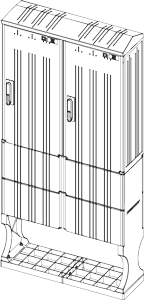

SKRF 800/800/3
skrf 43

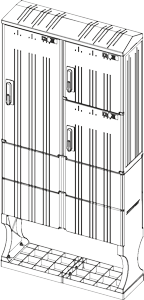

SKRF 800/800/4

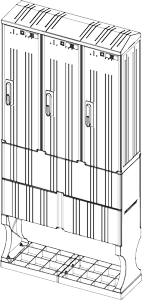

skrf 44
SKRF 3x26/80

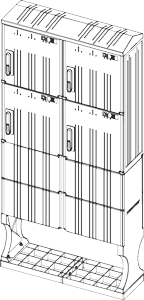

skrf 45
SKRF 52+26/80

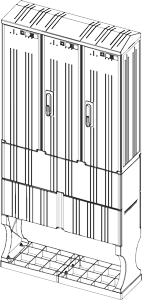

skrf 46

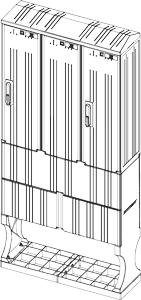

SKRF 26+52/80
skrf 47

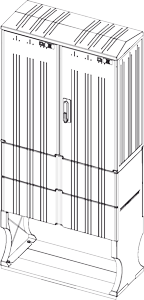

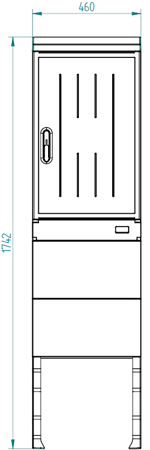

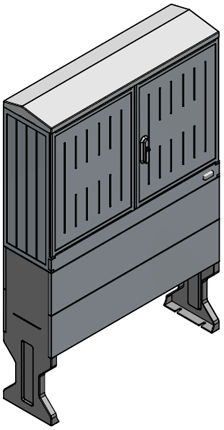

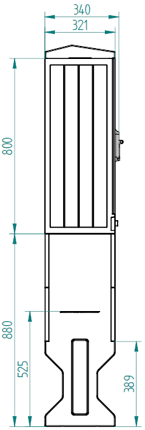

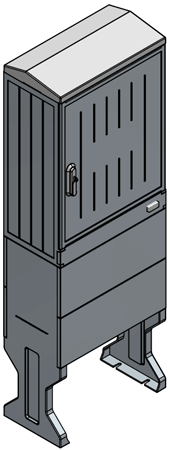

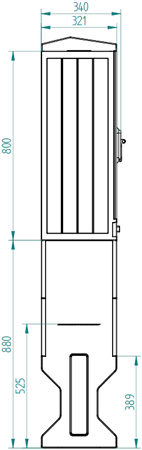

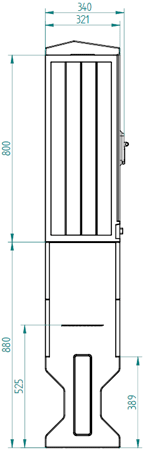

SKRF cubicle range with foundation 320mm deep

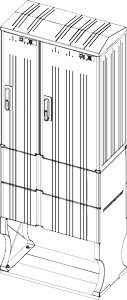

SKRF 260/800/1-320
skrf fundament 01
SKRF 400/800/1-320
skrf fundament 02

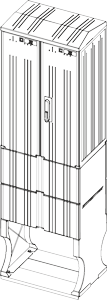

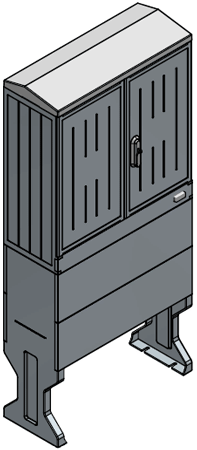

SKRF 520/800/1-320
skrf fundament 03

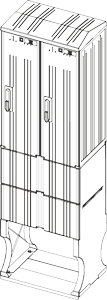

SKRF 520/800/2-320
skrf fundament 04

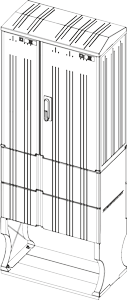

SKRF 660/800/1-320
skrf fundament 05

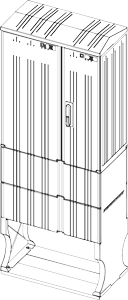

SKRF 660/800/1-320
skrf fundament 06
SKRF 260/800/2-320
skrf fundament 07

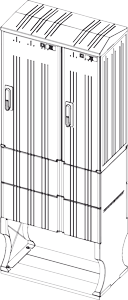

SKRF 660/800/2-320
skrf fundament 08
SKRF 800/800/1-320
skrf fundament 09
SKRF 800/800/2-320
skrf fundament 10

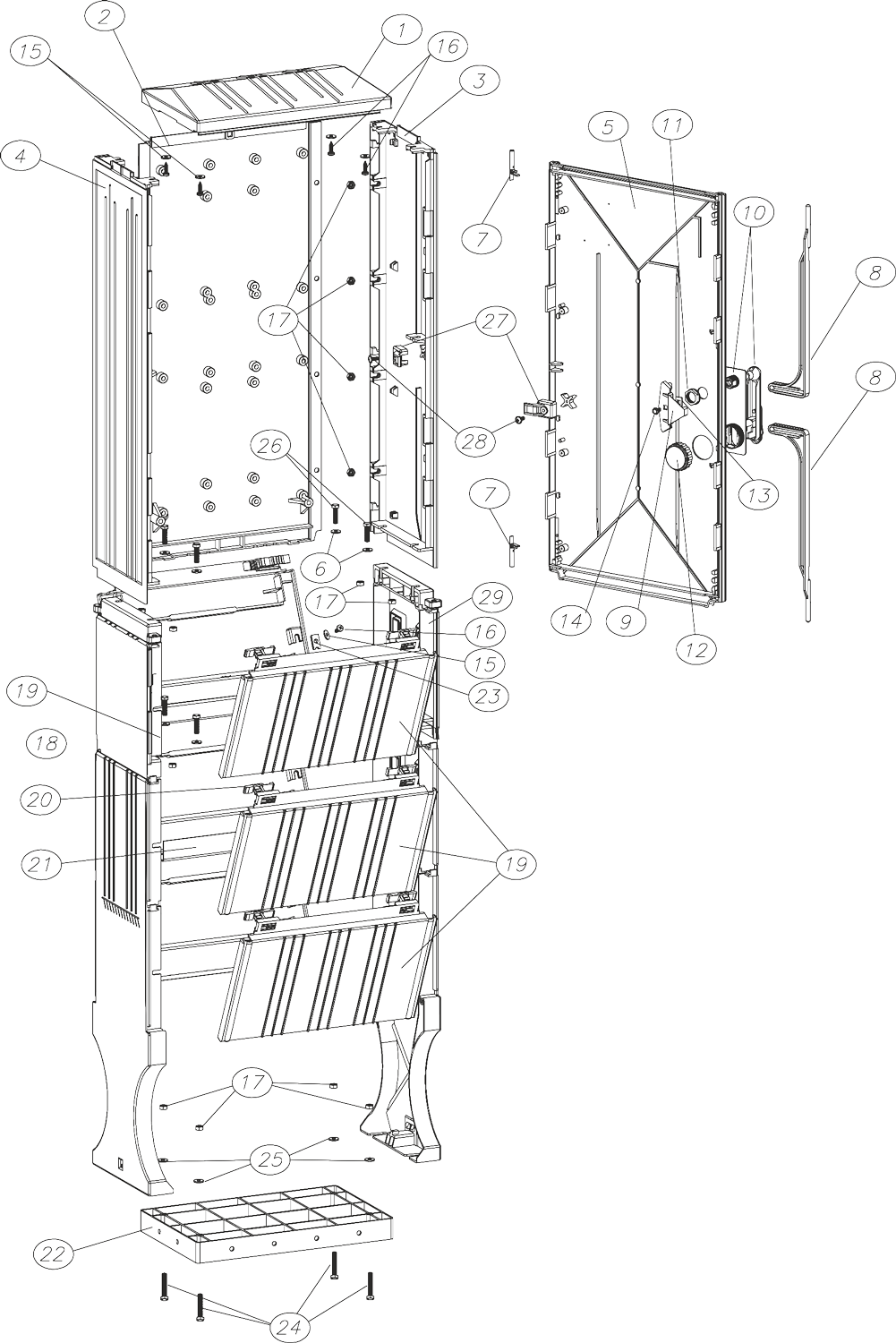

Assembly instructions of cable-distribution cubicle SKR-400/800-1 + NDC

budowa obudowy 01

Cubicle assembly

budowa obudowy 02

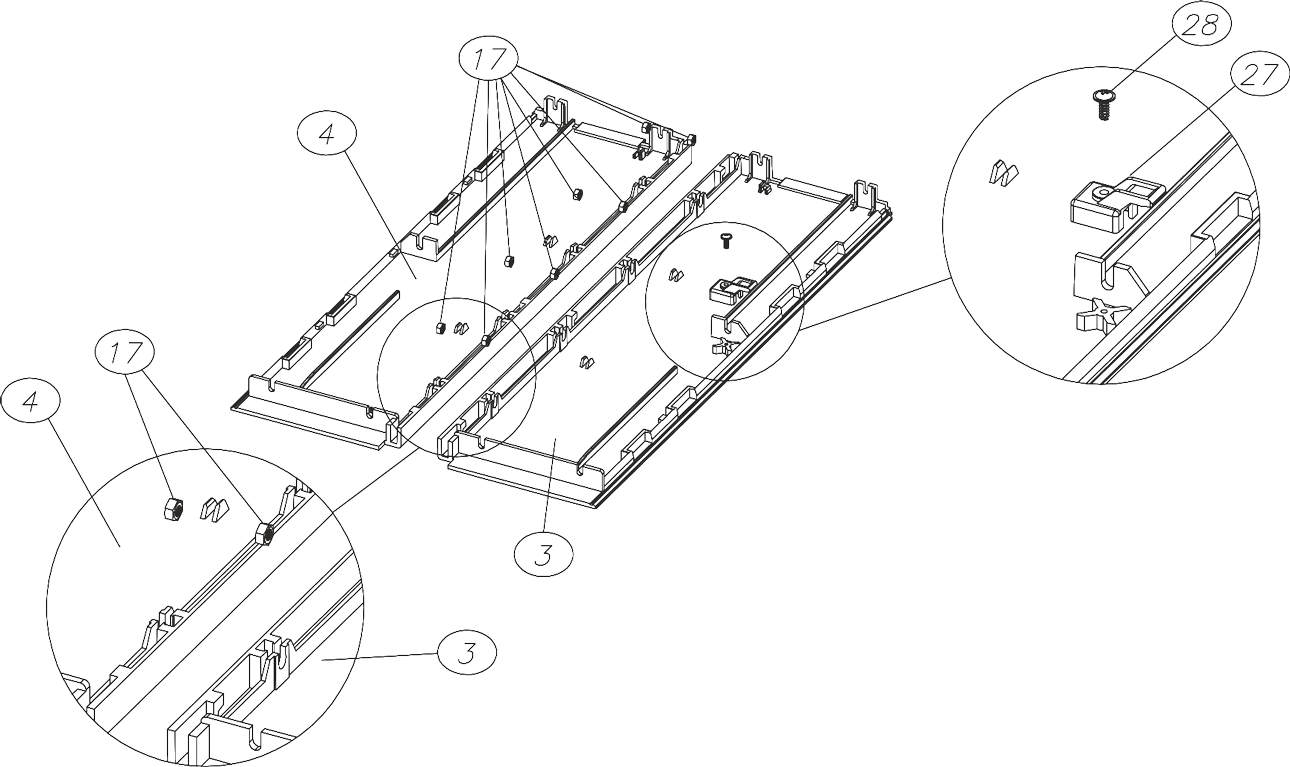

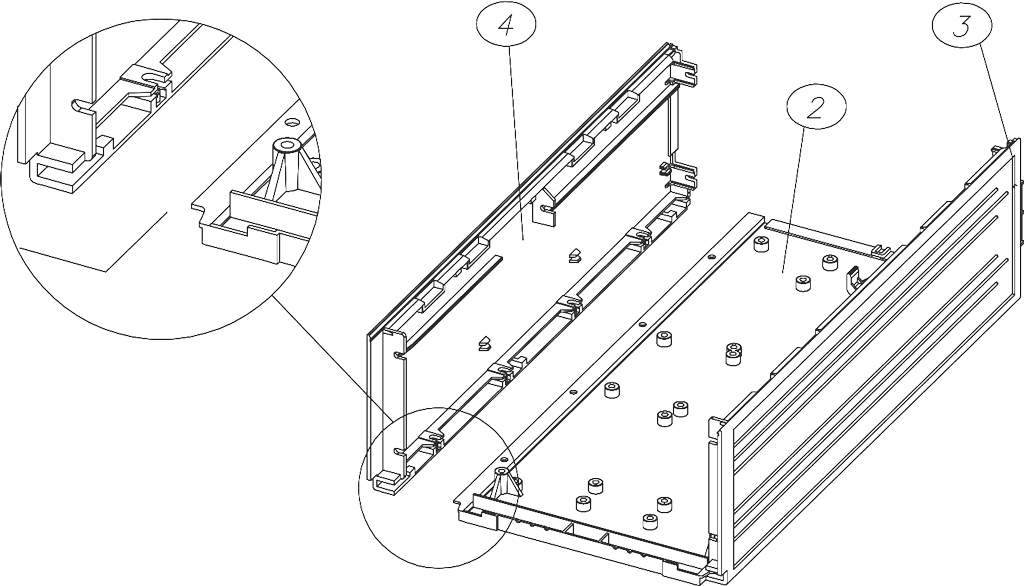

On the mounting base, mount the left and right side walls.
Insert the M8 nut bolts into the installation holes and screw to attach the lock elements.

budowa obudowy 03
On the mounting base, mount the back wall.
Place the right and left side walls perpendicularly to the back wall. Press and push upwards.

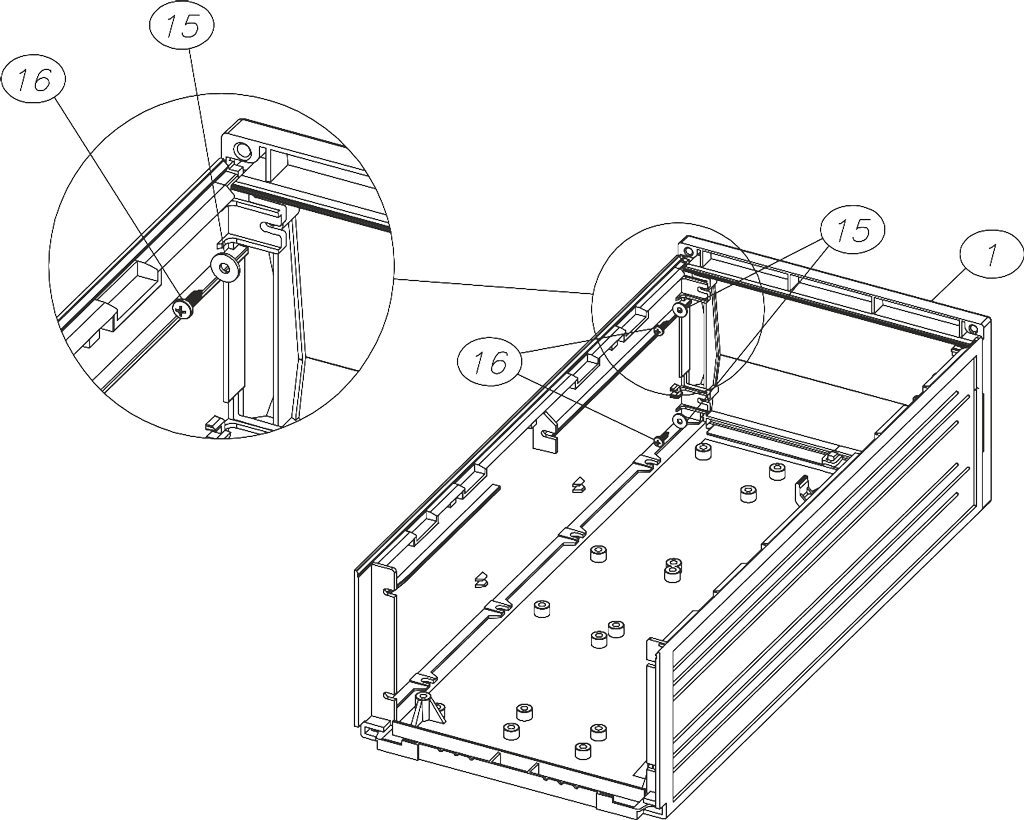

budowa obudowy 04
Mount the roof and fix it with 4 (60 x 20)
screws through the holes in the side walls.

Door assembly

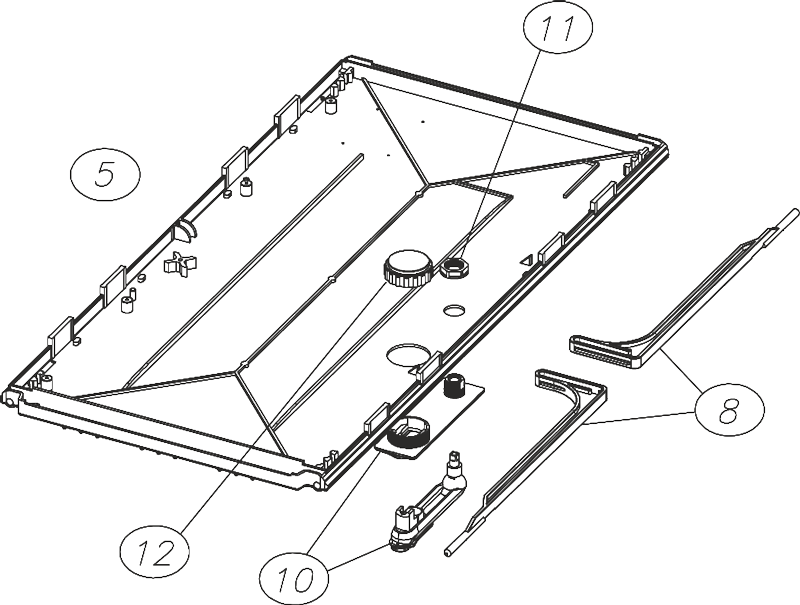

budowa obudowy 05On the mounting base, place the door internal side up. Place the body of the lock
with the handle-side down into the holes in the door. Screw the large lock nut bolt and
a small hexagonal nut into the handle rotation point. Insert the upper and lower rods into the holes in the door.

budowa obudowy 06

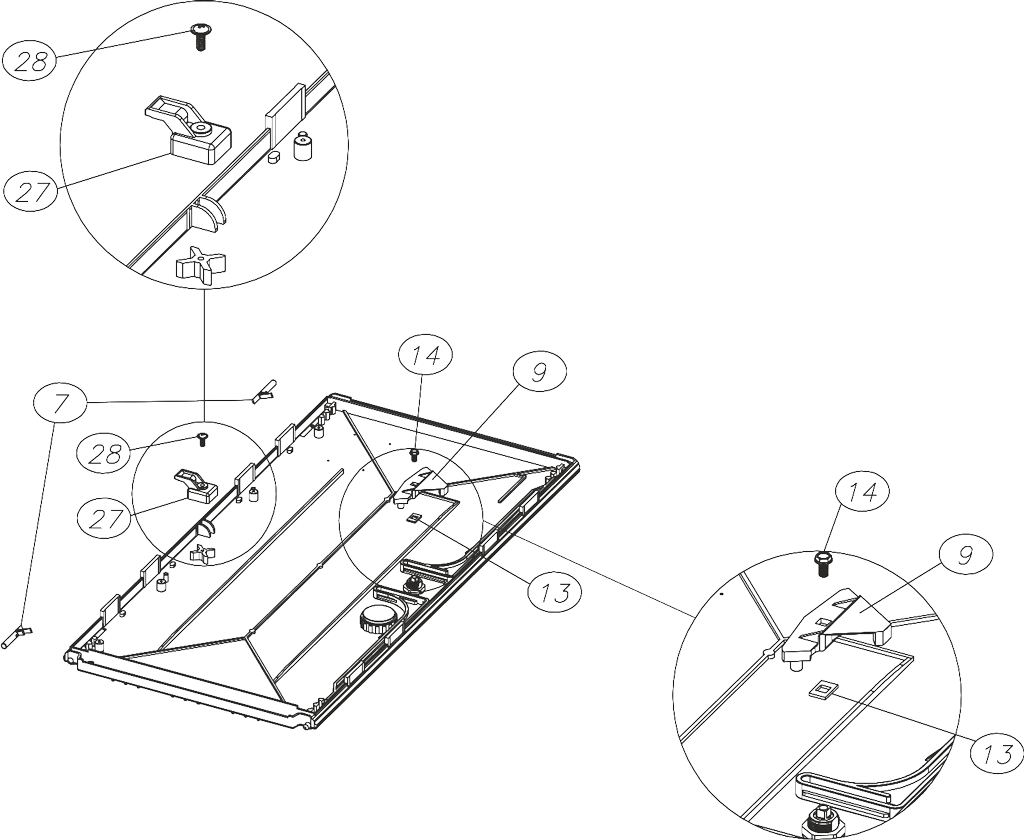

Remove the M6 screw from the handle rotating element. Place a metal rectangular washer between
the Swivel bolt and the handle rotating element, adjust the holes to the joints in the lock rod,
and tighten the M6 screw. Tighten the screws on the lock element. Insert hinges into the openings in the door.

Plinth assembly

budowa obudowy 07

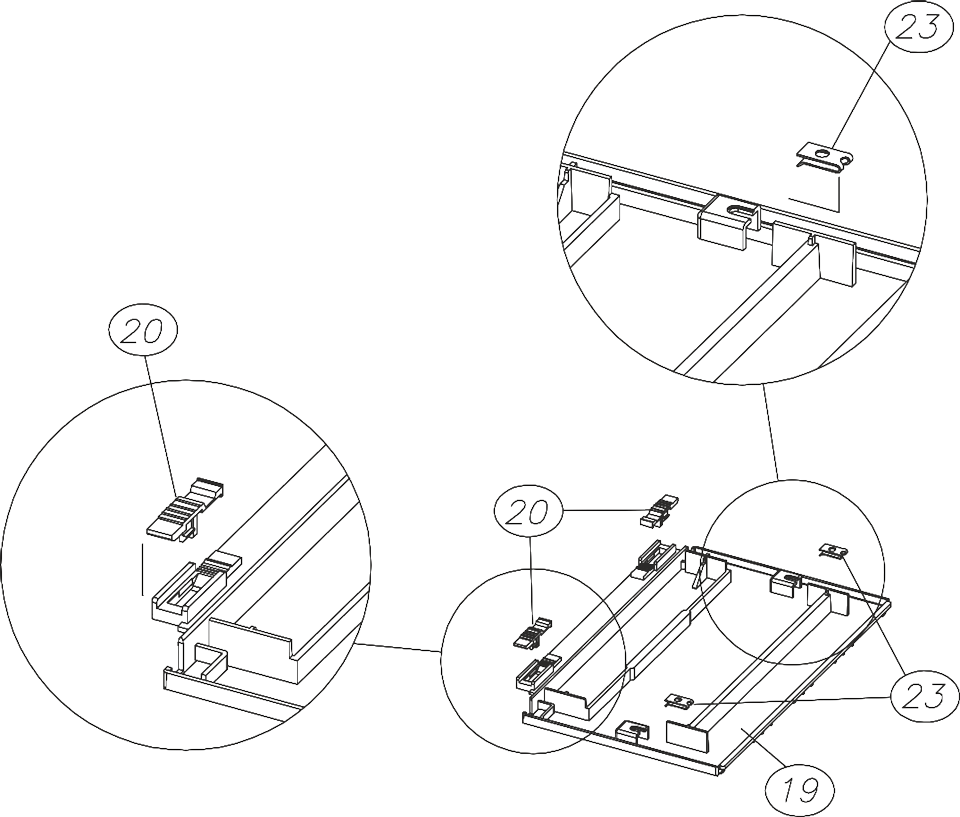

On the mounting base, place 2 plinth covers, press the sliding locks and insert the fixing elements
(these covers shall be used in the first place during assembly). In the remaining two, press the sliding locks only.

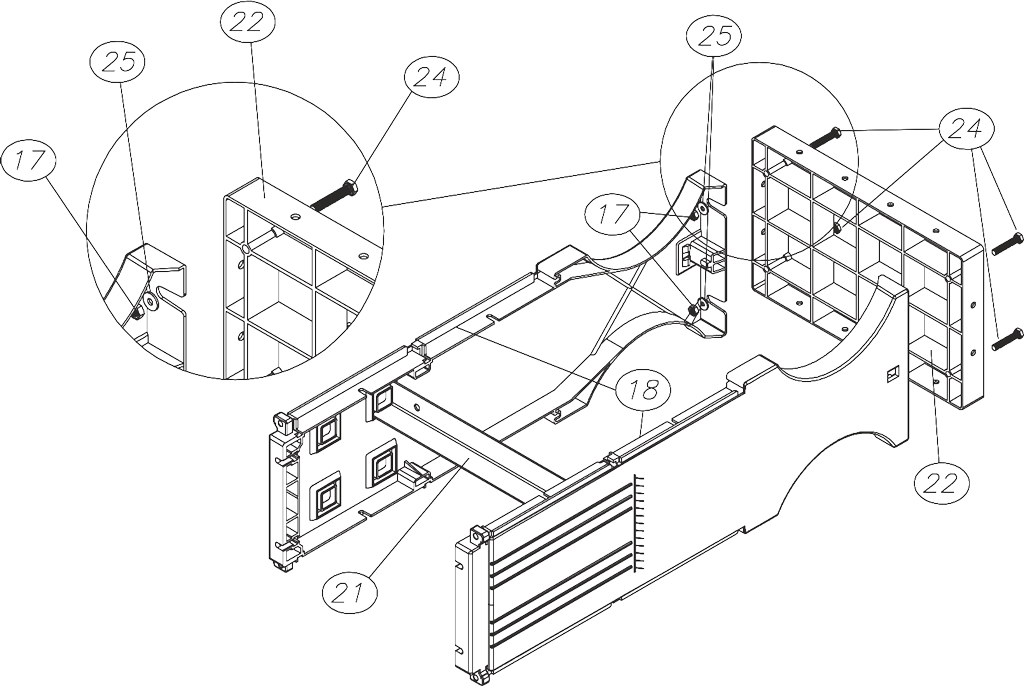

budowa obudowy 08
On the mounting base, place the plinth legs and fix them to the grid stand
using screws. Insert the fastening angle into the appropriate place.

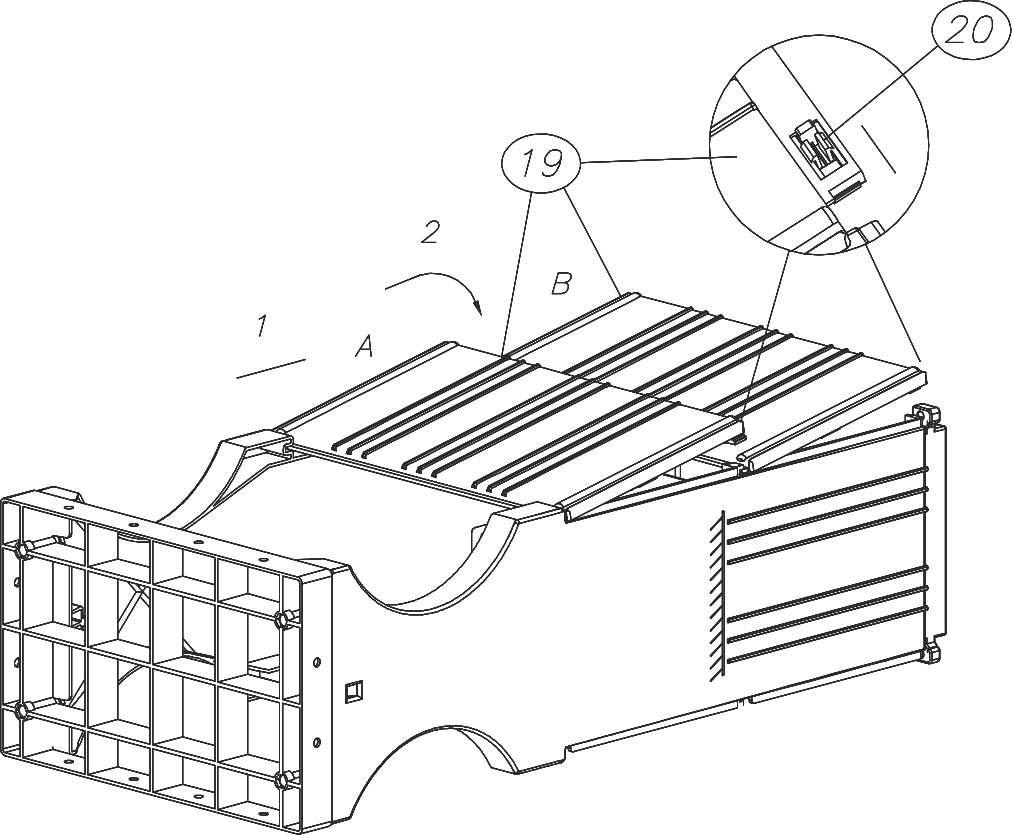

budowa obudowy 09Place the A plinth cover as the arrows show and lock
it into place with the slide locks. Do the same with cover B.

budowa obudowy 10

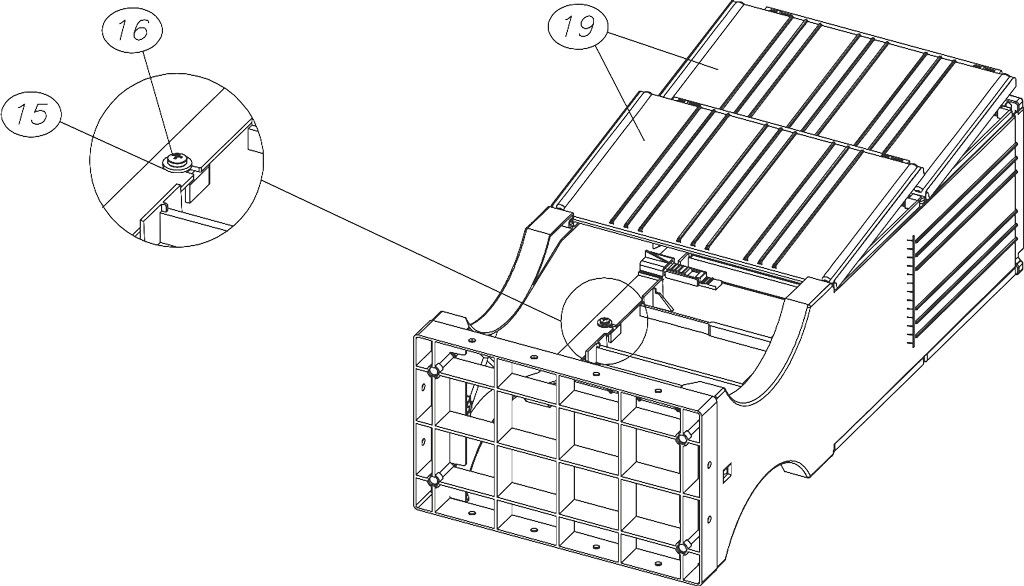

Rotate the plinth and fix the covers with the legs using screws. Mount the other covers
in the same way as described above. Tighten the grid stand so that it is parallel to the plinth legs.

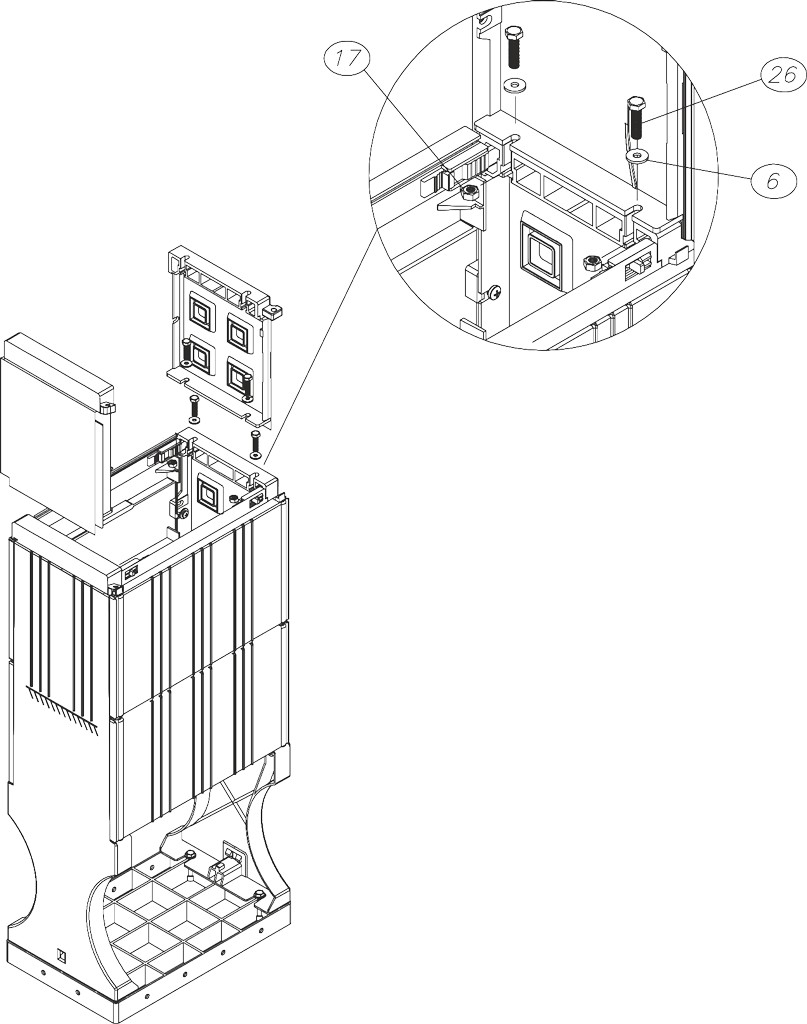

budowa obudowy 11
On the mounting base, place the plinth legs and fix them
to the grid stand using screws. Insert the fastening angle into the appropriate place.

budowa obudowy 12

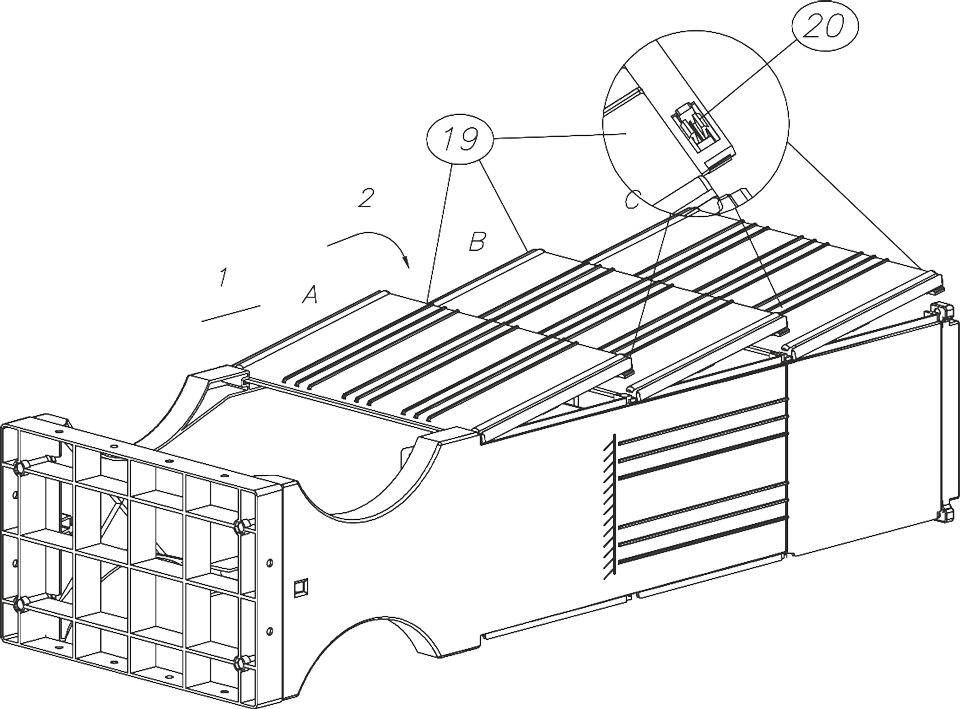

Put the C plinth cover as the arrows show and
follow the instructions as in covers A and B.

Cubicle assembly

budowa obudowy 13

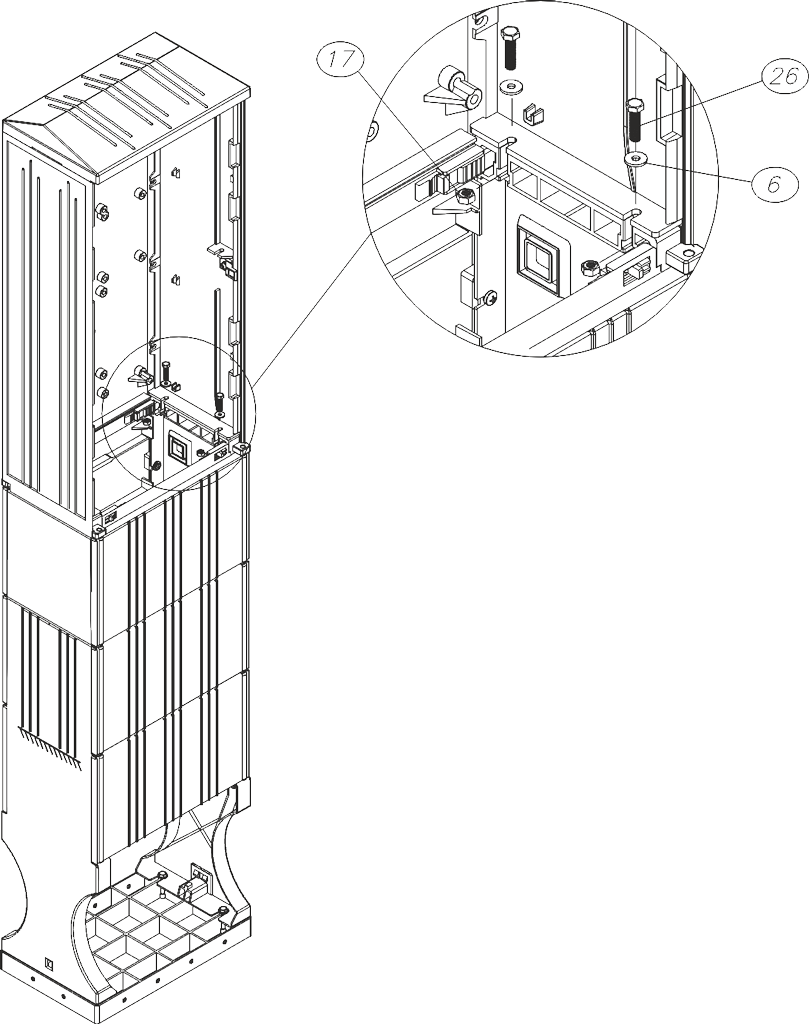

On the mounted plinth, place the cubicle with the fastening angle
in the back side of the cubicle. Attach the cubicle with a set of M8x50 screws.

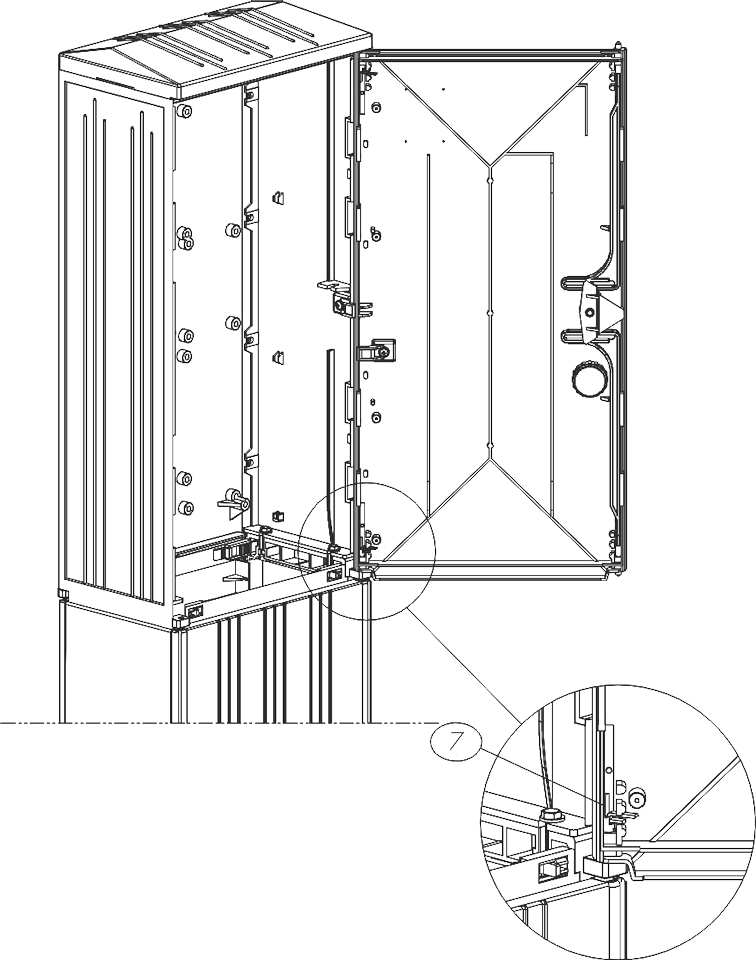

budowa obudowy 14
Mount the door in the cubicle by sliding
and locking the hinges (turn around their axis).
List of materials
Position Element name Number of units KTM/Catalogue number
1. Roof 1 D 400 250 000
2. Back wall 1 ST 400 800 888
3. Right side wall 1 PSB 250 800 000
4. Left side wall 1 LSB 250 800 000
5. Door 1 DR 400 800 000
6. Washer 09 4 ...
7. Hinge 2 Z
8. Rods 1+1 CZ800
9. Rotating lock 1 ZOZ
10. Body of the lock with handle 1 K
11. Small nut bolt of the lock 1 ...
12. Large nut bolt of the lock 1 ...
13. Square washer 1 ...
14. M6 screw 1 ...
15. Washer 07 8 ...
16. Screw 60x20 8 ...
17. Nut bolt M8 16 ...
18. Plinth leg 2 NC 250 800 000
19. Plinth cover 6 PC 400 240 000
20. Plinth cover latch 8 ZPC
21. Cable fastening angle 1 KK 400
22. Grid stand 1 KU 250 400
23. Fastening element 2 ...
24. M8x80 screw 4 ...
25. Washer 09 large 4 ...
26. M8x50 screw 4 ...
27. Lock element 2 EB
28. Screw 2 ...
29. Plinth extension 2 NDC
