SOU, RSOU - Street lighting cubicle

The cubicles are made of bent aluminium sheet, which is previously degreased, phosphated and powder-painted in any color or material (glass fibre reinforced polyester). Cubicle made of aluminium sheet has double roof, which prevents water vapour condensation. The construction is installed on the concrete fundament (views and dimensions of prefabricated concrete fundaments are presented in chapter “Cable boxes in aluminiumcubicles” in 5.2 point). Lightweight construction from aluminium sheet ensures easier transport and installation. Manufacturing technology and the advantages of the cubicles are described in chapter “Cable, metering and cable-metering boxes in plastic cubicles”.

Diagrams of standard cubicles street lighting

schem
schem
schem
schem

Examples of SOu street lighting cubicles (in aluminium cubicle)

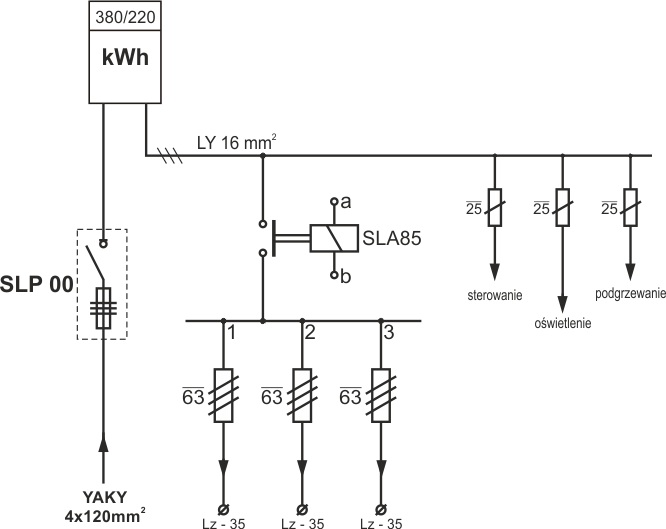

Electrical diagram
schem

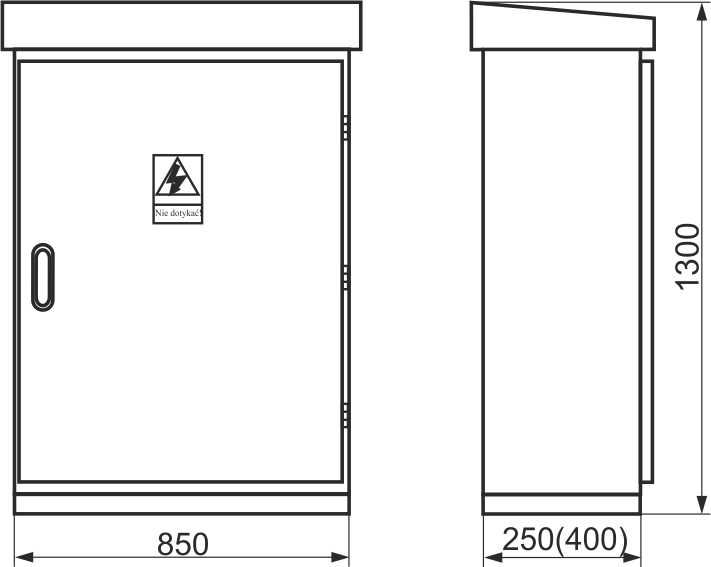

Connector view
schem
Apparatus arrangement
schem

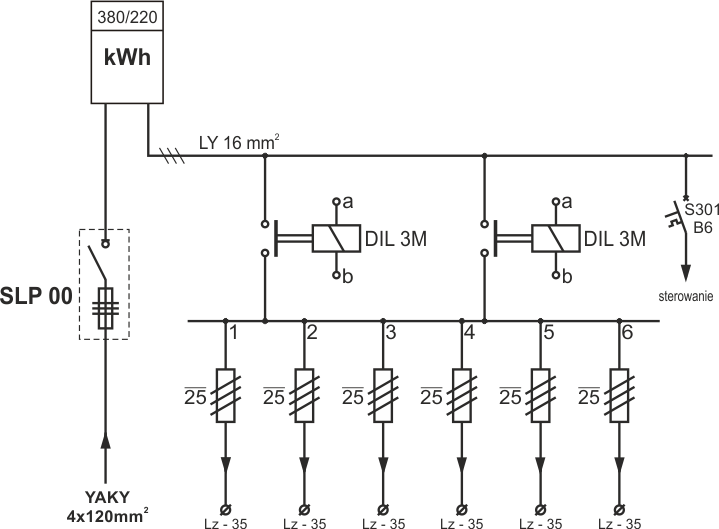

Electrical diagram
schem

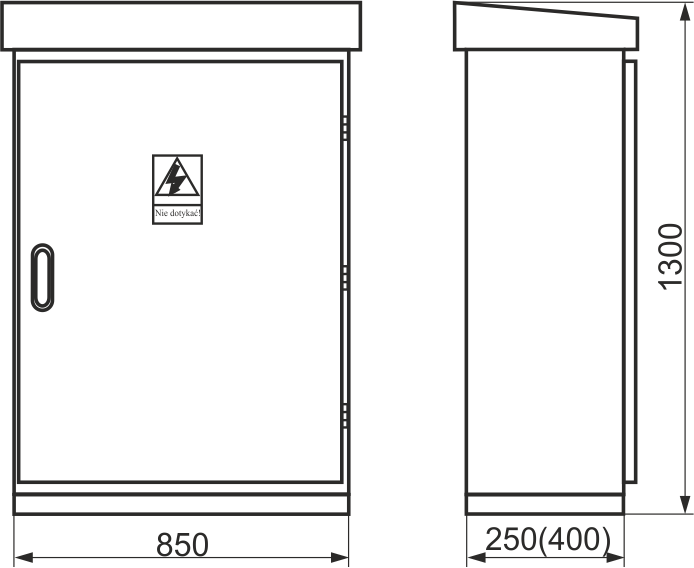

Connector view
schem

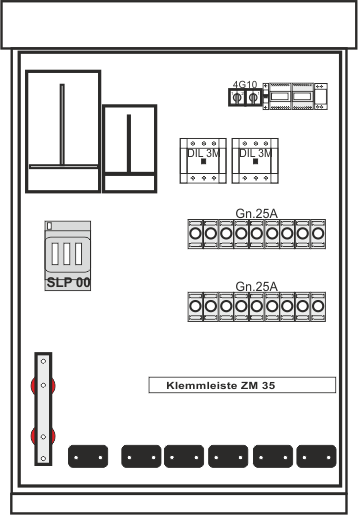

Apparatus arrangement
schem
