Cabinets and control panels, arrays ZELP, switchgear housing, construction, street lighting cabinets used for building control equipment.

Electricity consumption metering boards

Solutions for metering boards presented in the catalogue can be used to the construction of new metering and billing systems, as well as modernization of the existing solutions. Description contains solutions for metering and billing systems for indoor installation with electronic meters (for target systems) adapted to remote data readout. Presented materials are only a technical concept and their application requires making a technical project based on power distribution company requirements.

Electricity consumption metering boards are divided into:

  • direct metering systems
  • semidirect metering systems
  • indirect metering systems

Metering board cubicle is made of steel sheet. Metering boards are adapted to the highest class electronic metering apparatus installation.



View and electric diagram of metering systems

TP 01/V (direct metering system)

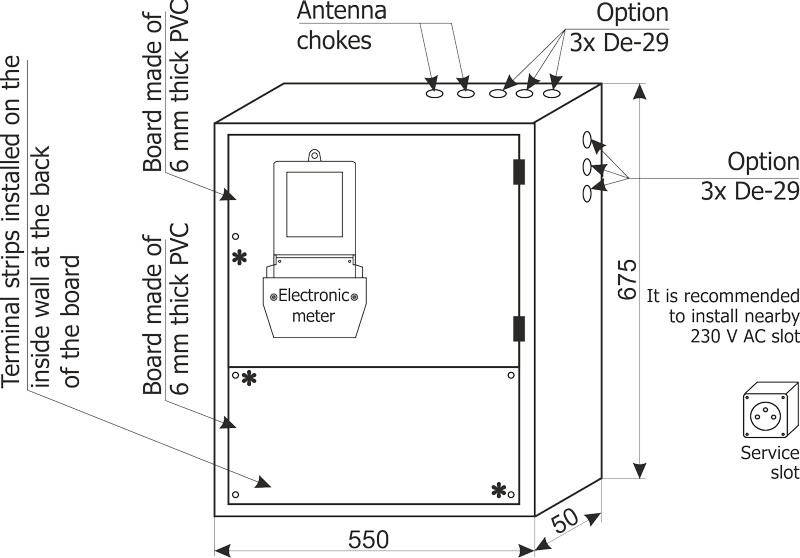

External view

schem

* - Bolts used for fixing the board, which are adapted to sealing
Recommended height of metering board installation 1000-1100 from the ground to the lower edge of the board

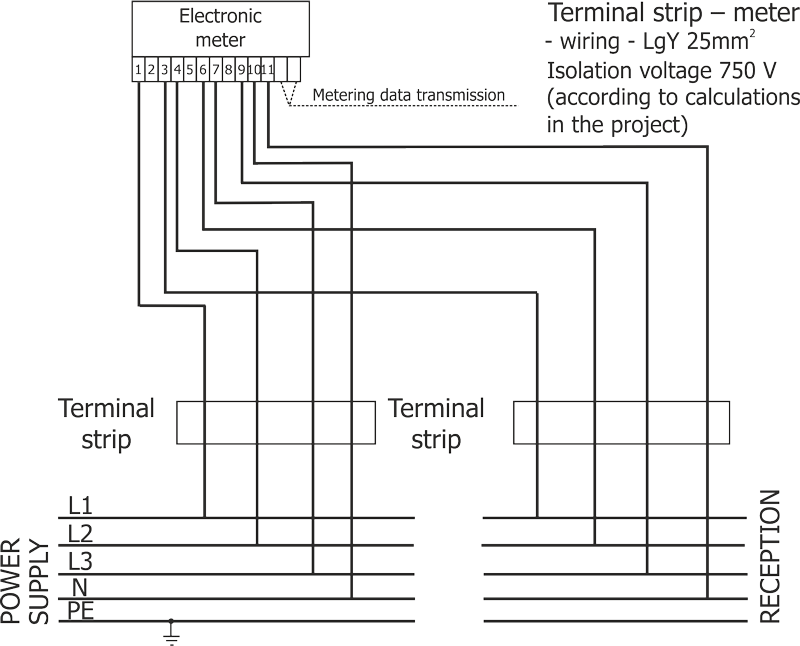

Metering system diagram

schem

TP 15/V (semidirect metering system)

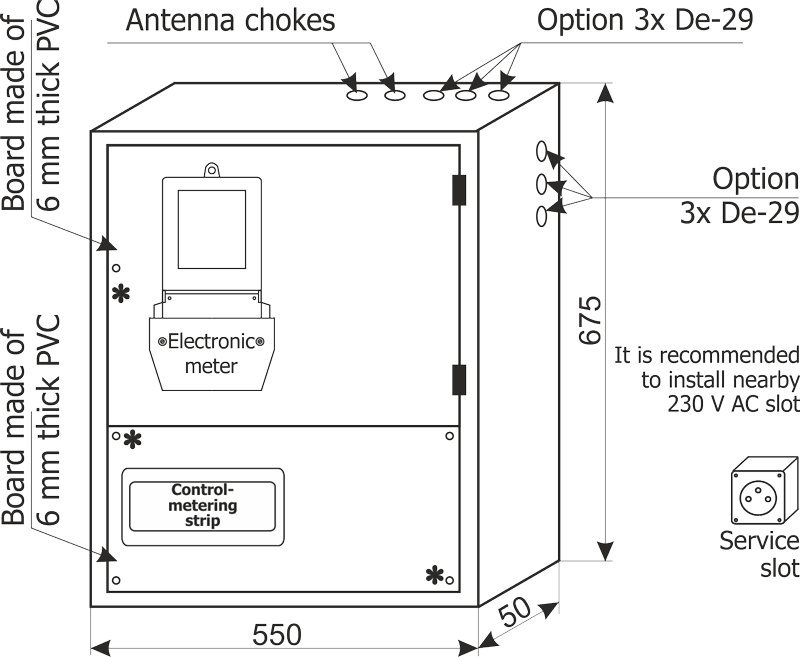

External view

schem

* - Bolts used for fixing the board, which are adapted to sealing
Recommended height of metering board installation 1000-1100 from the ground to the lower edge of the board

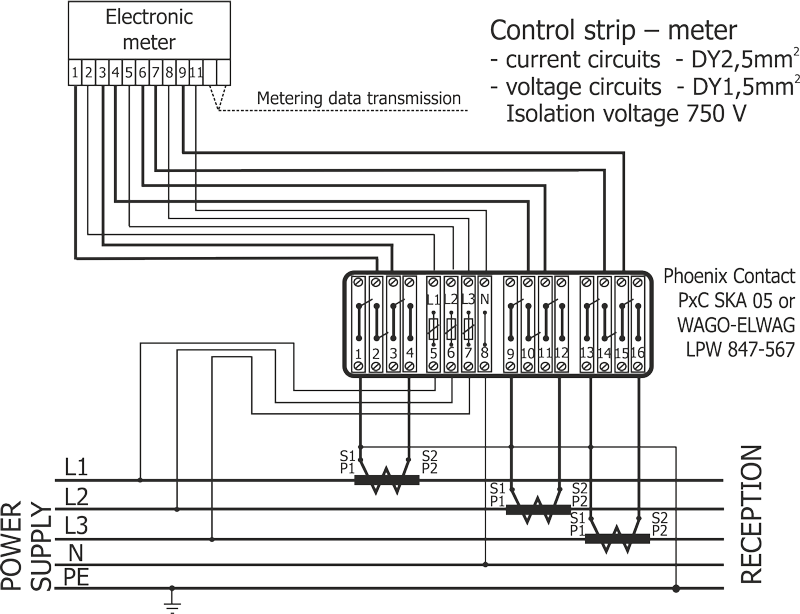

Metering system diagram

schem

Current circuit, voltage circuit- control strip
- current circuits (YKSY)- 2,5mm2 (according to calculations in the project)
- voltage circuits (YKSY) - 1,5mm2

TP 213/V (indirect metering systems). System for 1MVA

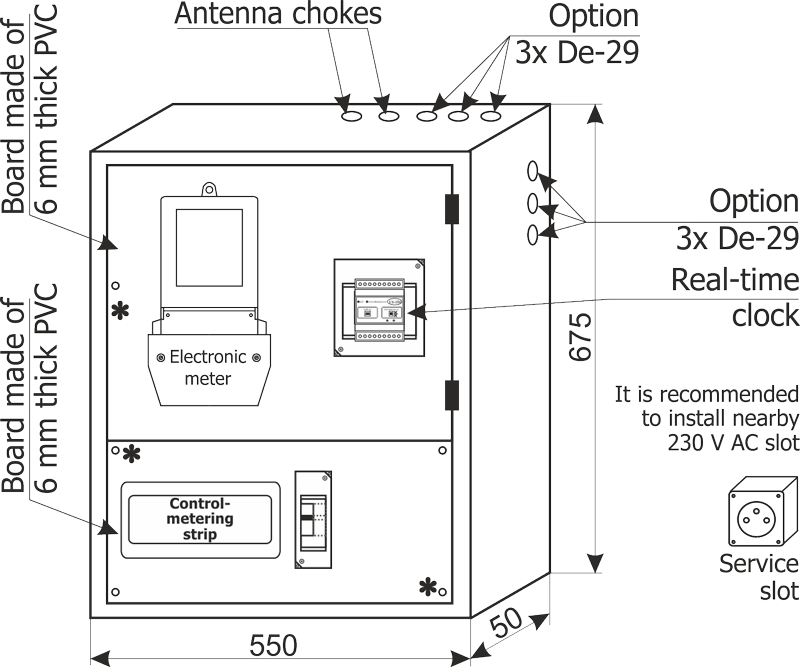

External view

schem

* - Bolts used for fixing the board, which are adapted to sealing
Recommended height of metering board installation 1000-1100 from the ground to the lower edge of the board

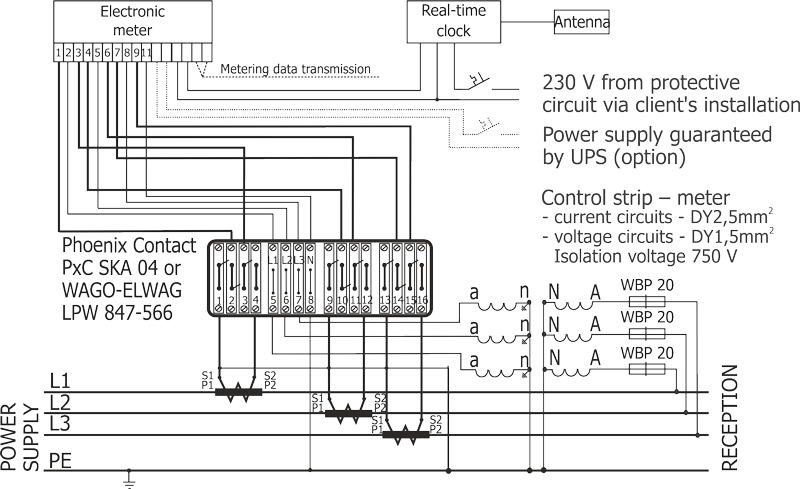

Metering system diagram

schem

Current circuit, voltage circuit- control strip
- use the YKSYFty cable (cross-sections according to calculations presented in the project)

TP 215/V (indirect metering system). System above 1MVA

External view

schem

* - Bolts used for fixing the board, which are adapted to sealing
Recommended height of metering board installation 1000-1100 from the ground to the lower edge of the board

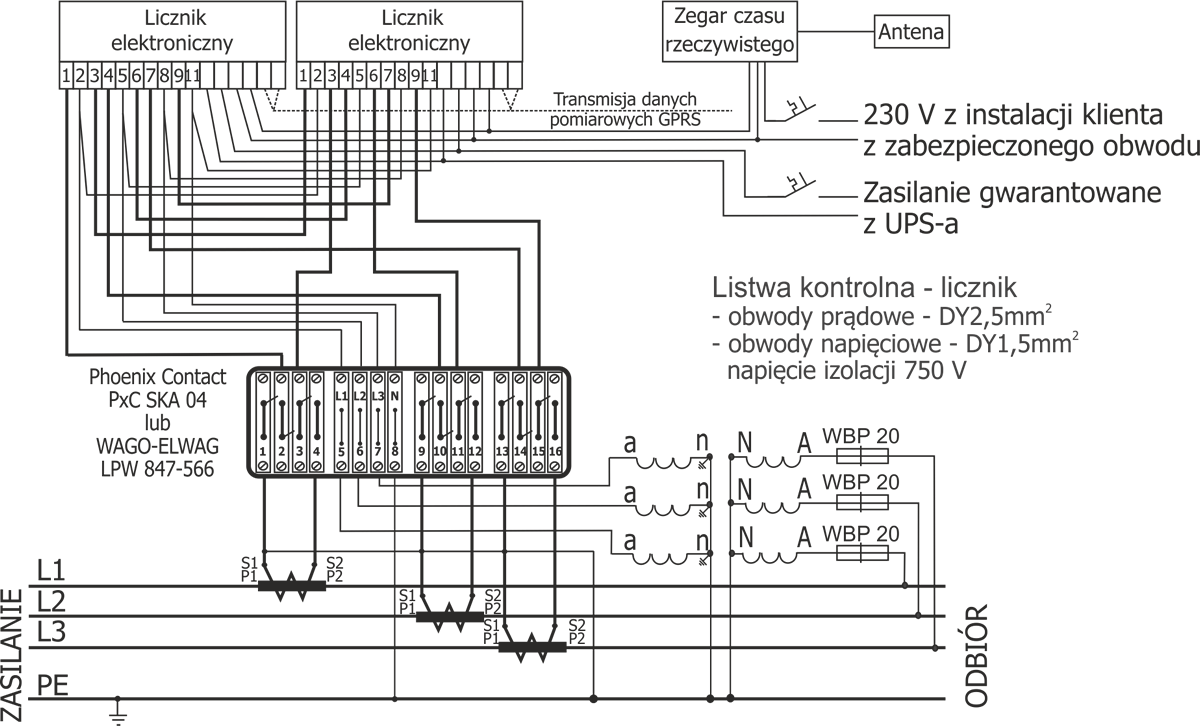

Metering system diagram

schem

Current circuit, voltage circuit- control strip
- use the YKSYFty cable (cross-sections according to calculations presented in the project)

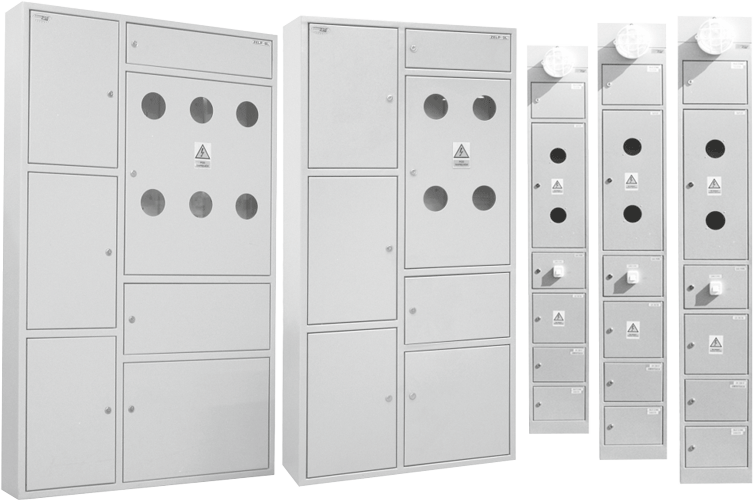

ZELP - Distribution boards

ZELP

Distribution boards ZELP type are a construction-assembly system, which enables installation of vertical electrical lines in house-buildings and for installation of the following electrical equipment:

  • wlz branch point;
  • residential pre-metering protection devices;
  • liczników lokatorskich 1-single phases and three-phase residential meters (optionally two-tariff meters);
  • single phase and three-phase socket;
  • light fixtures (overhead) and staircase light control button;
  • cable distributors or connectors for telephone and residential intercom lines.

Cubicle dimensions according to customers' needs.

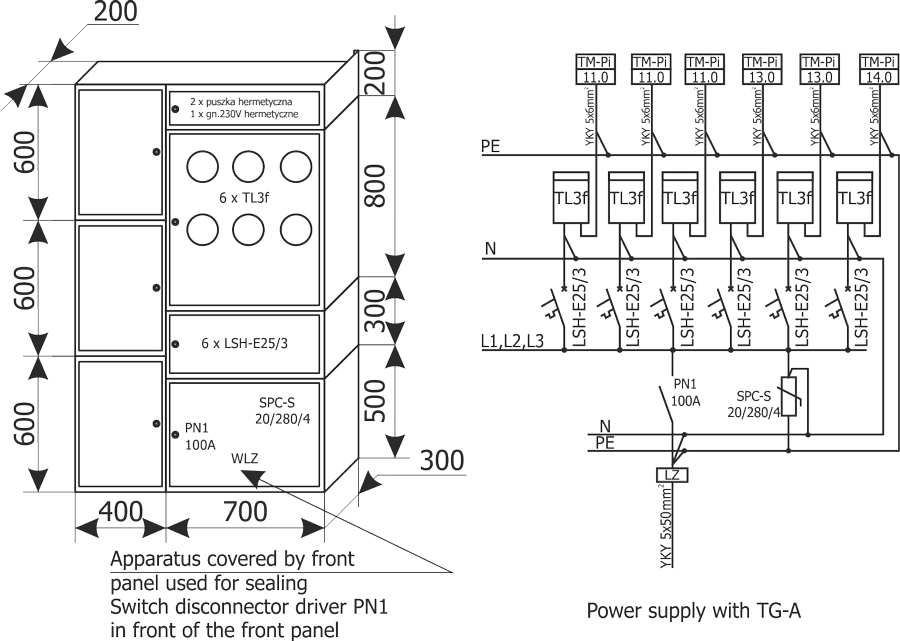

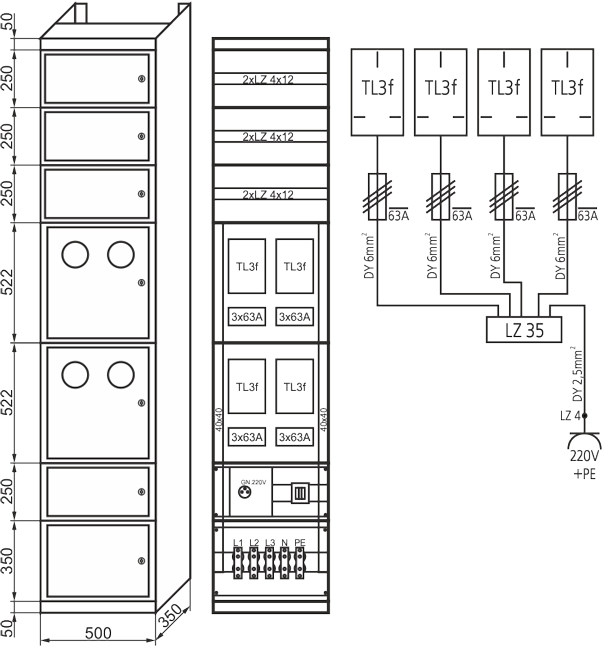

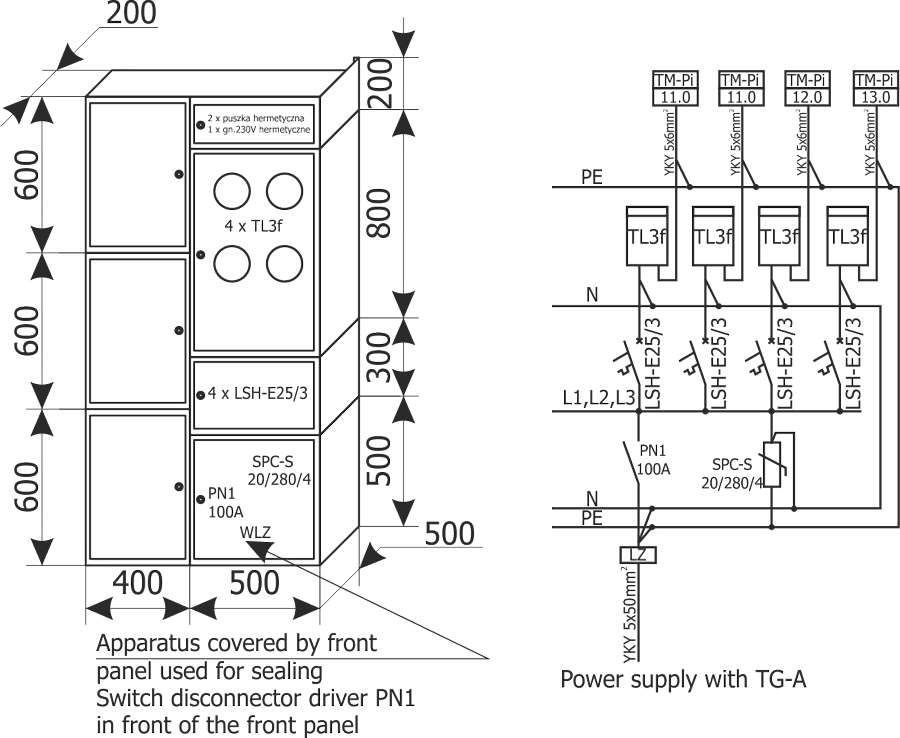

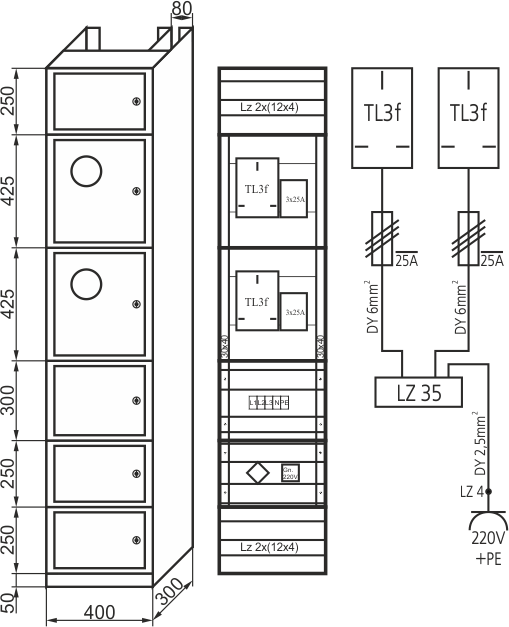

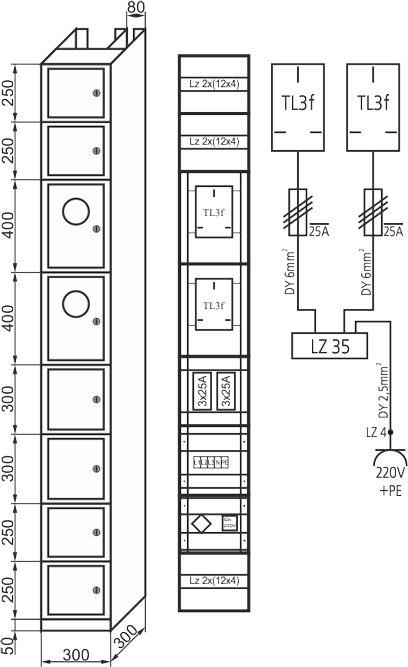

Exemplary views, dimensions, apparatus arrangement and electrical diagrams

schem
schem
schem
schem
schem

PSU - Universal control panels

PSU

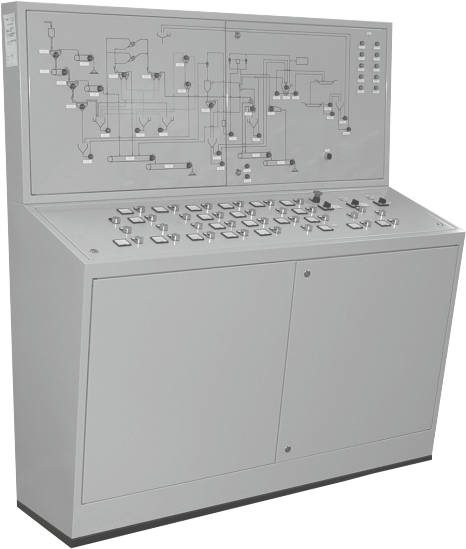

Universal control panel is used for installation of the control and control-metering apparatus, computer devices and visualization. It is particularly suitable for technological lines automation and processing centres as a very comfortable operator’s place. Control panel is composed of three segments i.e. cable compartment, middle part for controlgear installation and upper part with installed control-metering devices. Configuration and equipment according to customer’s individual needs.

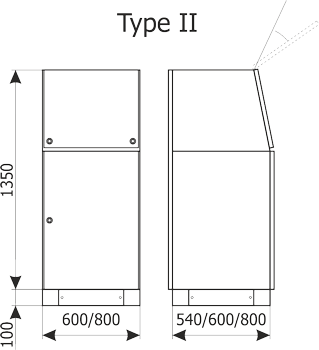

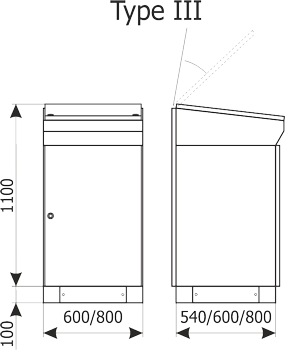

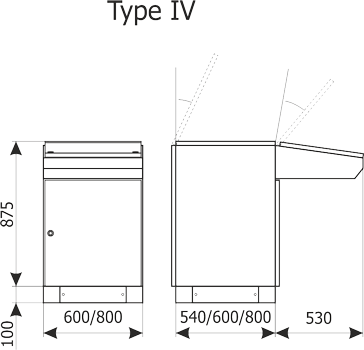

Single-door versions

schem
schem
schem
schem
schem

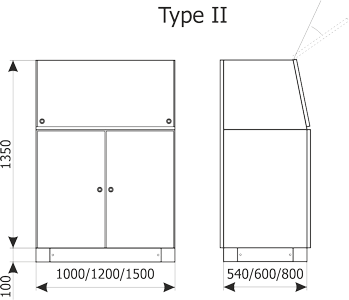

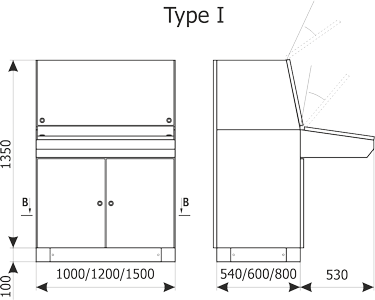

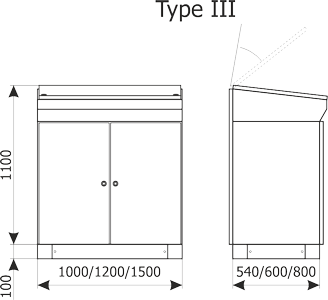

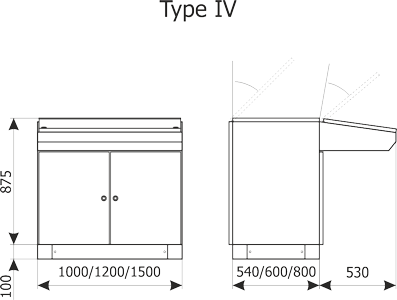

Double-door versions

schem
schem
schem
schem
schem
