Spun concrete poles and prefabricated fundaments

Spun poles manufactured in modern technology compacting concrete centrifuge allows you to get a smooth surface ensuring durability rod.

Spun concrete poles - technical description

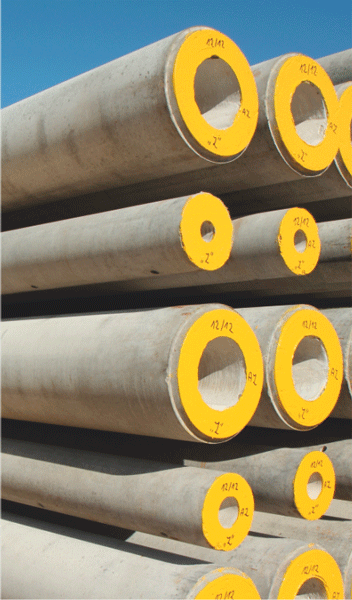

zerdzie

The pre-stressed high strength type E and EM concrete poles offered by ZPUE are the highest quality products, compliant with the standard PN-EN 12843:2008. Use of modern technology of concrete density by centrifugation method allows us to achieve a high level of density and a smooth surface, which guarantees the stability and bearing capacity of the spun concrete poles. Concrete compressive strength class minimum C40/50(C50/60) according to PN-EN206-1:2003.

Characteristics

  • design working life 50 years without the need for maintenance,
  • low water absorption <3,5%, good frost resistance, exposure class XC4, XF2 according to the PN-EN 206-1 norm: 2003, confirmed by accredited research body,
  • esthetic design, scratch resistance of the smooth surface,
  • limiting of the amount of land made unavailable for agricultural use
  • possibility to increase the span length, fewer number of poles along 1km of lines,
  • easy foundation in the ground,
  • application of one concrete pole instead of expanded spans.

Application:

  • supports for overhead and overhead-cable MV and LV power lines, telecommunication lines, train and tram lines,
  • various support constructions for general application.

Spun poles type E and EM have a Certificate of Factory Production Control 1487 CPD/112/ZKP/09

Technical parameters of the concrete pole type E and EM

Legend:

L - overall length of the concrete pole
dw - outside diameter of the apex
dp - outside diameter of the base

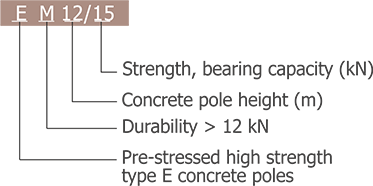

Concrete poles designation

zerdzie oznaczenia

Technical parameters of the concrete pole type E
Lp. Concrete
pole type
Strength
[kN]
Repture
force
[kg]
Weight
[kg]
Dimensions Strength
colour
indication
[m] [mm]
L L1 L2 dp dw
1 E 6,7/12 12 21,6 910 6,7 6,7 1,5 353 218 zolty
2 E 7,5/12 12 21,6 1055 7,5 6,7 1,5 330 218 zolty
3 E 8,2/4,3 4,3 7,7 990 8,2 6,7 1,5 353 218 niebieski
4 E 8,2/6 6,0 10,8 990 8,2 6,6 1,6 341 218 czarny
5 E 8,2/10 10,0 18,0 1100 8,2 6,6 1,6 341 218 czerwony
6 E 8,2/12 12,0 21,6 1150 8,2 6,6 1,6 341 218 zolty
7 E 8,2/15 15,0 27,0 1150 8,2 6,6 1,6 341 218 zielony
8 E 9/2,5 2,5 4,5 775 9,0 7,4 1,6 308 173 bialy
9 E 9/4,3 4,3 7,7 845 9,0 7,4 1,6 308 173 niebieski
10 E 9/6c 6,0 10,8 845 9,0 7,4 1,6 308 173 czarny
11 E 9/6 6,0 10,8 1250 9,0 7,7 1,6 353 218 czarny
12 E 9/10 10,0 18,0 1300 9,0 7,2 1,8 353 218 czerwony
13 E 9/12 12,0 21,6 1300 9,0 7,2 1,8 353 218 zolty
14 E 9/15 15,0 27,0 1380 9,0 7,2 1,8 353 218 zielony
15 E 9/20 20,0 36,0 1508 9,0 7,2 1,8 353 218 brazowy
16 E 10,5/2,5 2,5 4,5 1100 10,5 8,7 1,8 330 173 bialy
17 E 10,5/4,3c 4,3 7,7 1100 10,5 8,5 2,0 330 173 niebieski
18 E 10,5/4,3 4,3 7,7 1500 10,5 8,5 2,0 375 218 niebieski
19 E 10,5/6c 6,0 10,8 1100 10,5 8,5 2,0 330 173 czarny
20 E 10,5/6 6,0 10,8 1500 10,5 8,5 2,0 375 218 czarny
21 E 10,5/10 10,0 18,0 1600 10,5 8,3 2,2 375 218 czerwony
22 E 10,5/12 12,0 21,6 1650 10,5 8,3 2,2 375 218 zolty
23 E 10,5/15 15,0 27,0 1725 10,5 8,3 2,2 375 218 zielony
24 E 10,5/20 20,0 36,0 1878 10,5 8,3 2,2 375 218 brazowy
25 E 12/2,5 2,5 4,5 1400 12,0 10,0 2,0 353 173 bialy
26 E 12/4,3c 4,3 7,7 1450 12,0 9,8 2,2 353 173 niebieski
27 E 12/4,3 4,3 7,7 1800 12,0 9,8 2,2 398 218 niebieski
28 E 12/6c 6,0 10,8 1450 12,0 9,8 2,2 353 173 czarny
29 E 12/6 6,0 10,8 1800 12,0 9,8 2,2 398 218 czarny
30 E 12/10 10,0 18,0 2000 12,0 9,5 2,5 398 218 czerwony
31 E 12/12 12,0 21,6 2050 12,0 9,5 2,5 398 218 zolty
32 E 12/15c 15,0 27,0 2250 12,0 9,5 2,5 398 218 zielony
33 E 12/20 20,0 36,0 2306 12,0 9,5 2,5 398 218 brazowy
34 E 13,5/2,5 2,5 4,5 1650 13,5 11,3 2,2 375 173 bialy
35 E 13,5/4,3c 4,3 7,7 1700 13,5 11,1 2,4 375 173 niebieski
36 E 13,5/4,3 4,3 7,7 2050 13,5 11,1 2,4 420 218 niebieski
37 E 13,5/6 6,0 10,8 2050 13,5 11,0 2,5 420 218 czarny
38 E 13,5/10 10,0 18,0 2500 13,5 10,8 2,7 420 218 czerwony
39 E 13,5/12 12,0 21,6 2500 13,5 10,8 2,7 420 218 zolty
40 E 13,5/15 15,0 27,0 2500 13,5 10,8 2,7 420 218 zielony
41 E 15/2,5 2,5 4,5 1690 15,0 12,5 2,5 398 173 bialy
42 E 15/4,3c 4,3 7,7 1913 15,0 12,3 2,7 398 173 niebieski
43 E 15/4,3 4,3 7,7 2500 15,0 12,3 2,7 443 218 niebieski
44 E 15/6 6,0 10,8 2500 15,0 12,2 2,8 443 218 czarny
45 E 15/10 10,0 18,0 2900 15,0 12,0 3,0 443 218 czerwony
46 E 15/12 12,0 21,6 3000 15,0 12,0 3,0 443 218 zolty
47 E 15/15 15,0 27,0 3000 15,0 12,0 3,0 443 218 zielony
Technical parameters of the concrete pole type EM
 Lp. Concrete
pole type
Strength
[kN]
Rupture
force
[kg]
Weight
[kg]
Dimensions Strength
colour
indication
[m] [mm]
L L1 L2 dp dw
1 EM 10,5/15 15,0 27,0 1875 10,5 8,3 2,2 420 263 zielony
2 EM 10,5/17,5 17,5 31,5 1907 10,5 8,3 2,2 420 263 pomaranczowy
3 EM 10,5/20 20,0 36,0 1991 10,5 8,3 2,2 420 263 brazowy
4 EM 10,5/25 25,0 45,0 2082 10,5 8,3 2,2 420 263 fioletowy
5 EM 12/15 15,0 27,0 2225 12,0 9,5 2,5 443 263 zielony
6 EM 12/17,5 17,5 31,5 2383 12,0 9,5 2,5 443 263 pomaranczowy
7 EM 12/20 20,0 36,0 2492 12,0 9,5 2,5 443 263 brazowy
8 EM 12/25 25,0 45,0 2518 12,0 9,5 2,5 443 263 fioletowy
9 EM 13,5/15 15,0 27,0 2841 13,5 10,8 2,7 465 263 zielony
10 EM 13,5/17,5 17,5 31,5 2893 13,5 10,8 2,7 465 263 pomaranczowy
11 EM 13,5/20 20,0 36,0 3042 13,5 10,8 2,7 465 263 brazowy
12 EM 13,5/25 25,0 45,0 3086 13,5 10,8 2,7 465 263 fioletowy
13 EM 15/15 15,0 27,0 3131 15,0 12,0 3,0 488 263 zielony
14 EM 15/17,5 17,5 31,5 3131 15,0 12,0 3,0 488 263 pomaranczowy
15 EM 15/20 20,0 36,0 3225 15,0 12,0 3,0 488 263 brazowy
16 EM 15/25 25,0 45,0 3225 15,0 12,0 3,0 488 263 fioletowy

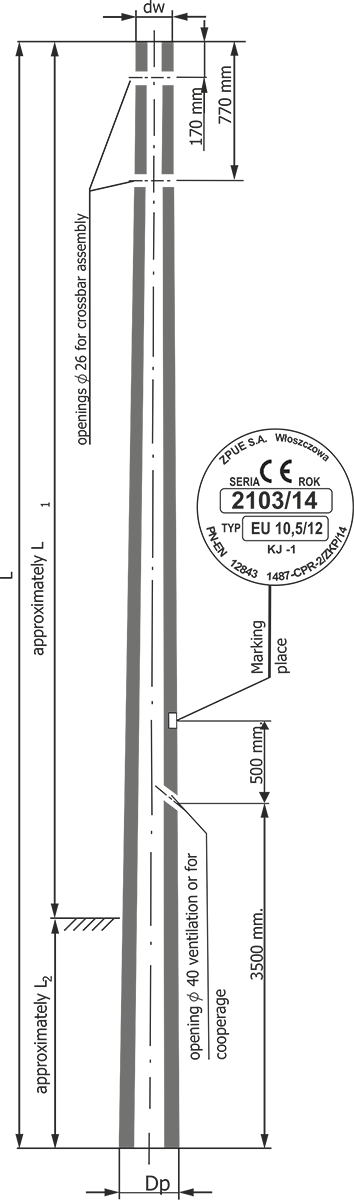

Concrete poles type E and EM

e i em

Spun concrete poles with earthing - technical description

The pre-stressed high strength type E and EMU concrete poles offered by ZPUE are the highest quality products, compliant with the standard PN-EN 12843:2008. Use of modern technology of concrete density by the centrifugation method allows us to achieve a high level of density and smooth surface, which guarantees stability and bearing capacity of the spun concrete poles. Concrete compressive strength class minimum C40/50(C50/60) according to PN-EN206-1:2003.

Advantages of netwoek solutions on spun concrete poles

  • design working life 50 years without the need for maintenance,
  • low water absorption <3,5%, good frost resistance, exposure class XC4, XF2 according to PN-EN 206-1 norm: 2003, confirmed by accredited research body,
  • esthetic design, scratch resistance of the smooth surface,
  • limiting of the amount of land made unavailable for agricultural use
  • possibility to increase of the span length, fewer number of poles along 1km of lines,
  • easy foundation in the ground,
  • application of one concrete pole instead of expanded spans,
  • grounding terminal allows connection, for example: with a crossbar with inside grounding (which is not a load transferring element),
  • no need to place grounding steel tape on the surface of the pole

Application

  • supports for overhead and overhead-cable MV and LV power lines, telecommunication lines, train and tram lines,
  • various support constructions for general application.

Technical parameters of the concrete pole type EU and EMU

Legenda:

L - overall length of the concrete pole
dw - outside diameter of the apex
dp - outside diameter of the base

Concrete pole designation

zerdzie oznaczenia

Technical parameters of the concrete pole type EU
Lp. Concrete
pole type
Strength
[kN]
Rupture
force
[kg]
Weight
[kg]
Dimensions Strength
colour
indication
[m] [mm]
L L1 L2 dp dw
1 EU 6,7/12 12 21,6 910 6,7 6,7 1,5 353 218 zolty
2 EU 7,5/12 12 21,6 1055 7,5 6,7 1,5 330 218 zolty
3 EU 8,2/4,3 4,3 7,7 990 8,2 6,7 1,5 353 218 niebieski
4 EU 8,2/6 6,0 10,8 990 8,2 6,6 1,6 341 218 czarny
5 EU 8,2/10 10,0 18,0 1100 8,2 6,6 1,6 341 218 czerwony
6 EU 8,2/12 12,0 21,6 1150 8,2 6,6 1,6 341 218 zolty
7 EU 8,2/15 15,0 27,0 1150 8,2 6,6 1,6 341 218 zielony
8 EU 9/2,5 2,5 4,5 775 9,0 7,4 1,6 308 173 bialy
9 EU 9/4,3 4,3 7,7 845 9,0 7,4 1,6 308 173 niebieski
10 EU 9/6c 6,0 10,8 1250 9,0 7,4 1,6 308 173 czarny
11 EU 9/6 6,0 10,8 1250 9,0 7,7 1,6 353 218 czarny
12 EU 9/10 10,0 18,0 1300 9,0 7,2 1,8 353 218 czerwony
13 EU 9/12 12,0 21,6 1300 9,0 7,2 1,8 353 218 zolty
14 EU 9/15 15,0 27,0 1380 9,0 7,2 1,8 353 218 zielony
15 EU 9/20 20,0 36,0 1508 9,0 7,2 1,8 353 218 brazowy
16 EU 10,5/2,5 2,5 4,5 1100 10,5 8,7 1,8 330 173 bialy
17 EU 10,5/4,3c 4,3 7,7 1100 10,5 8,5 2,0 330 173 niebieski
18 EU 10,5/4,3 4,3 7,7 1500 10,5 8,5 2,0 375 218 niebieski
19 EU 10,5/6c 6,0 10,8 1100 10,5 8,5 2,0 330 173 czarny
20 EU 10,5/6 6,0 10,8 1500 10,5 8,5 2,0 375 218 czarny
21 EU 10,5/10 10,0 18,0 1600 10,5 8,3 2,2 375 218 czerwony
22 EU 10,5/12 12,0 21,6 1650 10,5 8,3 2,2 375 218 zolty
23 EU 10,5/15 15,0 27,0 1725 10,5 8,3 2,2 375 218 zielony
24 EU 10,5/20 20,0 36,0 1878 10,5 8,3 2,2 375 218 brazowy
25 EU 12/2,5 2,5 4,5 1400 12,0 10,0 2,0 353 173 bialy
26 EU 12/4,3c 4,3 7,7 1450 12,0 9,8 2,2 353 173 niebieski
27 EU 12/4,3 4,3 7,7 1800 12,0 9,8 2,2 398 218 niebieski
28 EU 12/6c 6,0 10,8 1450 12,0 9,8 2,2 353 173 czarny
29 EU 12/6 6,0 10,8 1800 12,0 9,8 2,2 398 218 czarny
30 EU 12/10 10,0 18,0 2000 12,0 9,5 2,5 398 218 czerwony
31 EU 12/12 12,0 21,6 2050 12,0 9,5 2,5 398 218 zolty
32 EU 12/15c 15,0 27,0 2250 12,0 9,5 2,5 398 218 zielony
33 EU 12/20 20,0 36,0 2306 12,0 9,5 2,5 398 218 brazowy
34 EU 13,5/2,5 2,5 4,5 1650 13,5 11,3 2,2 375 173 bialy
35 EU 13,5/4,3c 4,3 7,7 1700 13,5 11,1 2,4 375 173 niebieski
36 EU 13,5/4,3 4,3 7,7 2050 13,5 11,1 2,4 420 218 niebieski
37 EU 13,5/6 6,0 10,8 2050 13,5 11,0 2,5 420 218 czarny
38 EU 13,5/10 10,0 18,0 2500 13,5 10,8 2,7 420 218 czerwony
39 EU 13,5/12 12,0 21,6 2500 13,5 10,8 2,7 420 218 zolty
40 EU 13,5/15 13,5 27,0 2500 13,5 10,8 2,7 420 218 zielony
41 EU 15/2,5 2,5 4,5 1690 15,0 12,5 2,5 398 173 bialy
42 EU 15/4,3c 4,3 7,7 2500 15,0 12,3 2,7 398 173 niebieski
43 EU 15/4,3 4,3 7,7 2500 15,0 12,3 2,7 443 218 niebieski
44 EU 15/6 6,0 10,8 2500 15,0 12,2 2,8 443 218 czarny
45 EU 15/10 10,0 18,0 2900 15,0 12,0 3,0 443 218 czerwony
46 EU 15/12 12,0 21,6 3000 15,0 12,0 3,0 443 218 zolty
47 EU 15/15 15,0 27,0 3000 15,0 12,0 3,0 443 218 zielony
Technical parameters of the concrete pole type EMU
 Lp. Concrete
pole type
Strength
[kN]
Rupture
force
[kg]
Weight
[kg]
Dimensions Strength
colour
indication
[m] [mm]
L L1 L2 dp dw
1 EMU 10,5/15 15,0 27,0 1875 10,5 8,3 2,2 420 263 zielony
2 EMU 10,5/17,5 17,5 31,5 1907 10,5 8,3 2,2 420 263 pomaranczowy
3 EMU 10,5/20 20,0 36,0 1991 10,5 8,3 2,2 420 263 brazowy
4 EMU 10,5/25 25,0 45,0 2082 10,5 8,3 2,2 420 263 fioletowy
5 EMU 12/15 15,0 27,0 2225 12,0 9,5 2,5 443 263 zielony
6 EMU 12/17,5 17,5 31,5 2383 12,0 9,5 2,5 443 263 pomaranczowy
7 EMU 12/20 20,0 36,0 2492 12,0 9,5 2,5 443 263 brazowy
8 EMU 12/25 25,0 45,0 2518 12,0 9,5 2,5 443 263 fioletowy
9 EMU 13,5/15 15,0 27,0 2841 13,5 10,8 2,7 465 263 zielony
10 EMU 13,5/17,5 17,5 31,5 2893 13,5 10,8 2,7 465 263 pomaranczowy
11 EMU 13,5/20 20,0 36,0 3042 13,5 10,8 2,7 465 263 brazowy
12 EMU 13,5/25 25,0 45,0 3086 13,5 10,8 2,7 465 263 fioletowy
13 EMU 15/15 15,0 27,0 3131 15,0 12,0 3,0 488 263 zielony
14 EMU 15/17,5 17,5 31,5 3131 15,0 12,0 3,0 488 263 pomaranczowy
15 EMU 15/20 20,0 36,0 3225 15,0 12,0 3,0 488 263 brazowy
16 EMU 15/25 25,0 45,0 3225 15,0 12,0 3,0 488 263 fioletowy

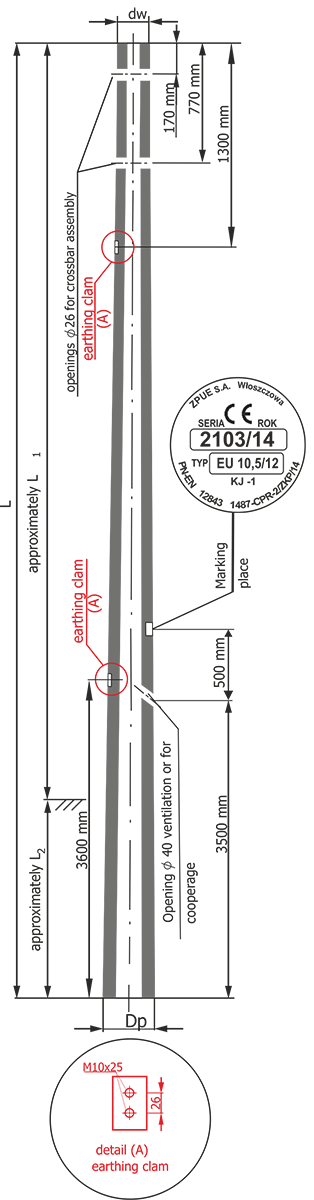

Concrete poles type EU and EMU

e i eu

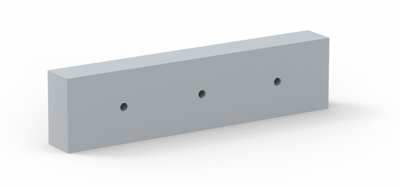

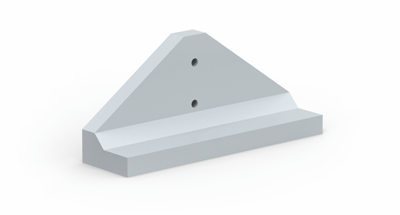

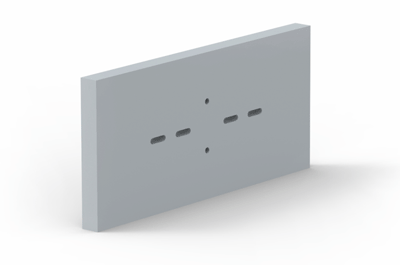

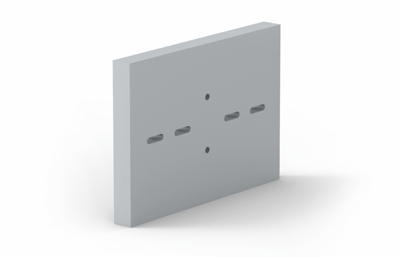

Prefabricated footing elements

Precast concrete is designed for concrete poles and transformer stations foundations in MV and LV overhead networks. Concrete prefabricated footing and fundament elements are made from concrete class C 30/35. Footing elements should be chosen based on PTPIREE albums and assessment of the ground parameters according to the regulations defined in PN-81/B-03020 and PN-80/B-03322 norms.

List of footings and fundaments
Lp. Footing type Type Footing elements
1. Footing plates UP 1 ÷ 7 Plate U - 85
Plate U - 130
Alloyed plate 0,3 x 0,3
Bracket OU-1, OU-2, OU-6/VE
2. Footing plates UP 11 ÷ 18 Plate U - 85
Plate U - 130
Element ES-2
Alloyed plate 0,3 x 0,3
3. Footing blocks To the concrete pole
ŻN i BSW
Block B - 60
Block B - 80
Block B - 90
Block B - 150
4. Prefabricated
fundaments
SFP 111, 122, 133
SFP 21/L, 22/L, 23/L
SP 1, 2, 3
SP 11, 22, 33
Bottom plate PD
Plate PS 120
Plate PS 160
Plate PS 200
Screw connections SFP 2 /L
5. Prefabricated
fundaments
FP 11, 12, 13
FP 21, 22, 23
Element EF
Plate P - 120
Plate P - 160
Plate P - 200
Assembly bolts
Table footing elements
Element
name
Symbol of
the element
a
[cm]
Element
weight
Footing
plate
P - 120 120 675 kg
P - 160 160 900 kg
P - 200 200 1125 kg
Element sketch
schem 01
Symbol of
the element
a
[cm]
Element
weight
PS - 120 120 400 kg
PS - 160 160 530 kg
PS - 200 200 660 kg
Element sketch

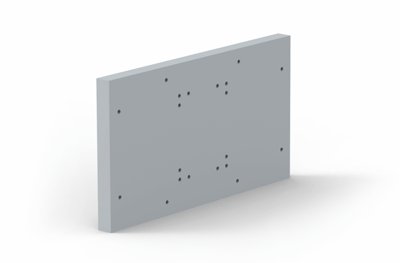

schem 02
Symbol of
the element
Element
weight
U - 85 77 kg
Element sketch
schem 03
Symbol of
the element
Element
weight
U - 130 156 kg
Element sketch
schem 04
Symbol of
the element
Element
weight
Bottom plate PD 510 kg
Element sketch

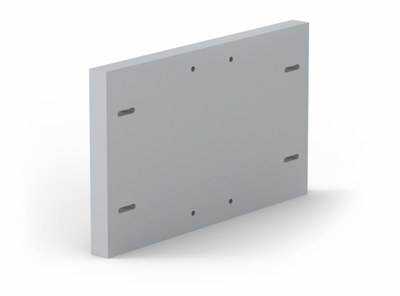

schem 05
Element
name
Symbol of
the element
Element
weight
Footing
blocks
B - 60 23 kg
Element sketch

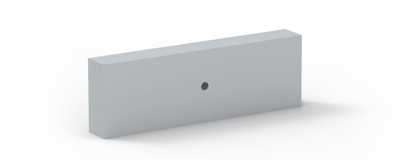

schem 06
Symbol of
the element
Element
weight
B - 80 38 kg
Element sketch
schem 07
Symbol of
the element
Element
weight
B - 90 72 kg
Element sketch
schem 08
Symbol of
the element
Element
weight
B - 150 120 kg
Element sketch

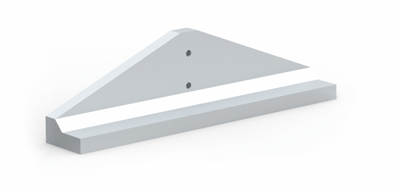

schem 09
Element
name
Symbol of
the element
Element
weight
Footing
elements
EF 1060 kg

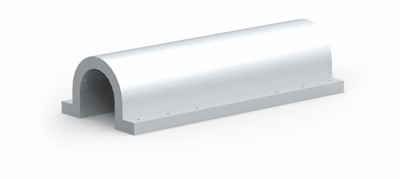

schem 10

ZPUE's website uses cookies. By staying here you are agreeing to our use of cookies. learn more
